Matera, Italy (MATE00ITA)

RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION mate00ita_20220913.log
STATUS IN EPN included since 31-12-1995
LAST AVAILABLE DATA 30-09-2023
LAST RECEIVER LEICA GR30 (17-04-2020 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR20/NONE (04-07-2017 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, BKG, MUT, RGA, UPA
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 03-08-2020.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 216/2020 N/A
BEV 003/2020 N/A
BKGI 216/2020 N/A
RINEX V3.03 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 267/2023 78.57%
BEV 273/2023 100%
BKGI 273/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 216/2020 (A) N/A 0%
BKGI 216/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 274/2023 (S) 100% 95.83%
BKGI 274/2023 (S) 100% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

MATE00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/09/30 22:36 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/09/30 22:36 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)

    2023/09/30 22:36 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.35.173) wrt site log (4.35/7.504)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/09/30 20:23 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/09/30 20:23 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.35.173) wrt site log (4.35/7.504)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/10/01 02:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/01 02:05 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.35.173) wrt site log (4.35/7.504)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station MATE00ITA
Last ETRF2000 position valid from 190/2017 to 316/2022
expressed at epoch 001/2010
X = 4641949.843 m Vx = -0.0029 m/y
Y = 1393045.166 m Vy = -0.0002 m/y
Z = 4133287.247 m Vz = 0.0028 m/y

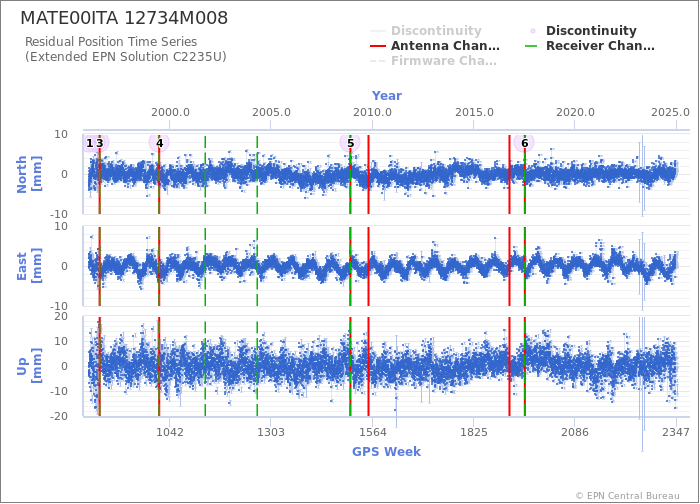

Position time series

Position time series

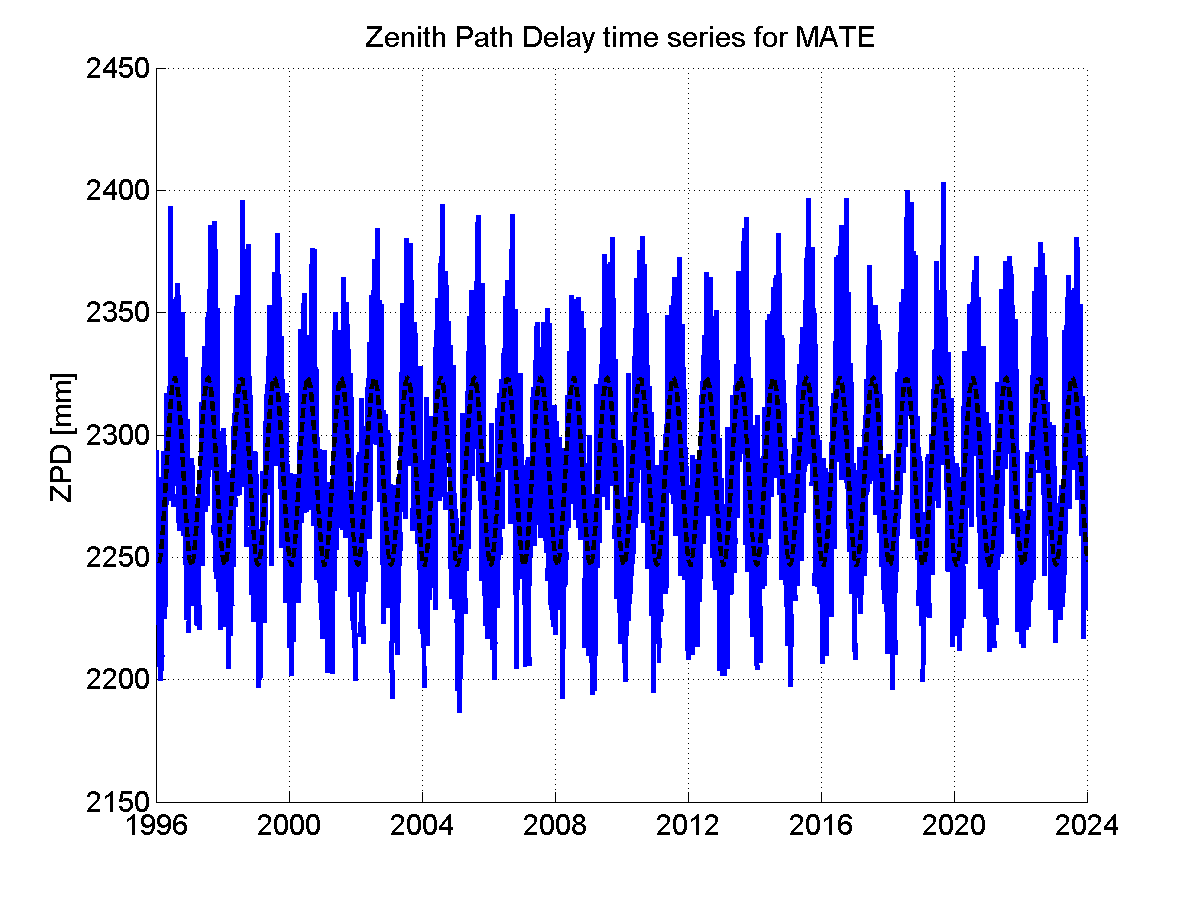

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

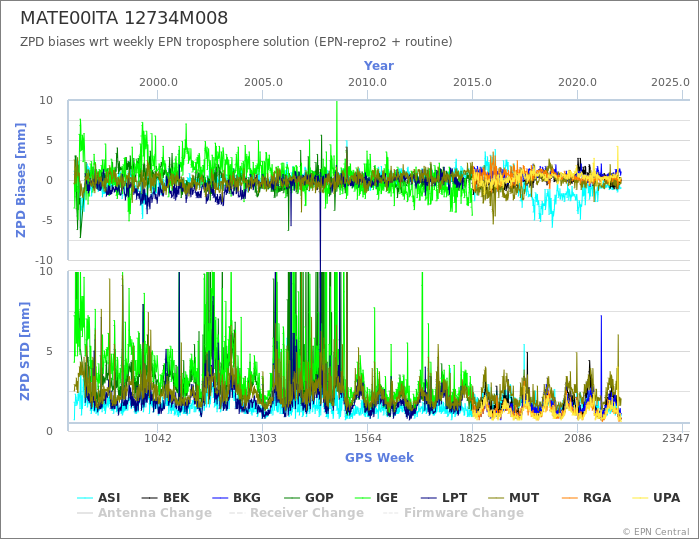

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
