EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SGA (State Geodetic Administration)
RESPONSIBLE FOR METADATA	SGA (State Geodetic Administration)
CURRENT STATION CONFIGURATION	cako00hrv_20240318.log
STATUS IN EPN	included since 16-06-2013
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-CAKO00HRV
LAST AVAILABLE DATA	26-04-2025
LAST RECEIVER	TRIMBLE ALLOY (17-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA	TRM115000.00/TZGD (13-08-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEV, MUT, SGO, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 22-04-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

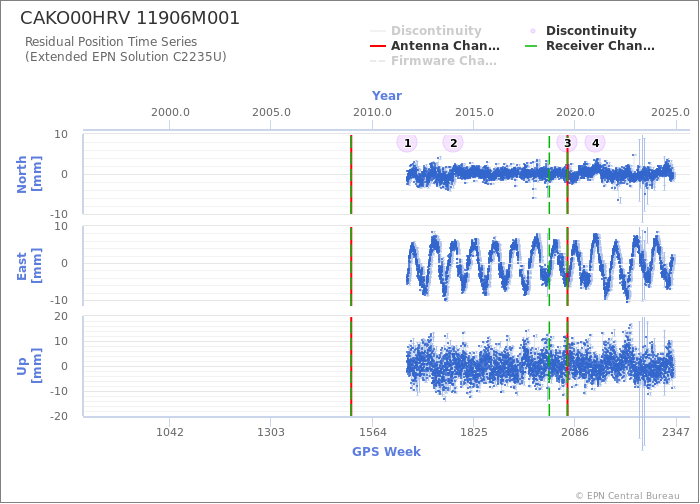

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station CAKO00HRV
Last ETRF2000 position valid from 365/2020 to 316/2022 expressed at epoch 001/2010
X = 4227250.777 m	Vx = -0.0010 m/y
Y = 1247280.627 m	Vy = -0.0003 m/y
Z = 4595193.317 m	Vz = 0.0000 m/y
