Station Configuration

Current station configuration:

ignf00fra_20200915.log (current) ignf00fra_20200910.log ignf00fra_20200427.log

IGNF00FRA is operated by IGN_RGP and integrated in the EPN since 24-05-2020.

Receiver :

LEICA GR50

Antenna :

TRM57971.00 NONE

Set to track :

GPS+GLO+GAL+BDS+QZSS+SBAS

Individual Calibration :

NO

Data routinely analysed by ASI, BKG, IGE, IGN, ROB.

Data Provided

RINEX V2.11 - GPS+GLO+GAL+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		103/2021	78.57%
BEV		109/2021	100%
BKGE		109/2021	100%

RINEX V3.03 - GPS+GLO+GAL+BDS+QZSS+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		103/2021	78.57%
BEV		109/2021	100%
BKGE		109/2021	100%

Hourly

Data centres	Online	Last data	Availability	Latency
BEV		110/2021 (P)	100%	100%
BKGE		110/2021 (P)	100%	100%

Hourly

Data centres	Online	Last data	Availability	Latency
BEV		110/2021 (P)	100%	100%
BKGE		110/2021 (P)	100%	99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF has classified IGNF00FRA as a class B station
Last ETRF2000 position valid from 145/2020 to 312/2020 expressed at epoch 069/2020
X = 4201694.144 m
Y = 177888.838 m
Z = 4779371.768 m

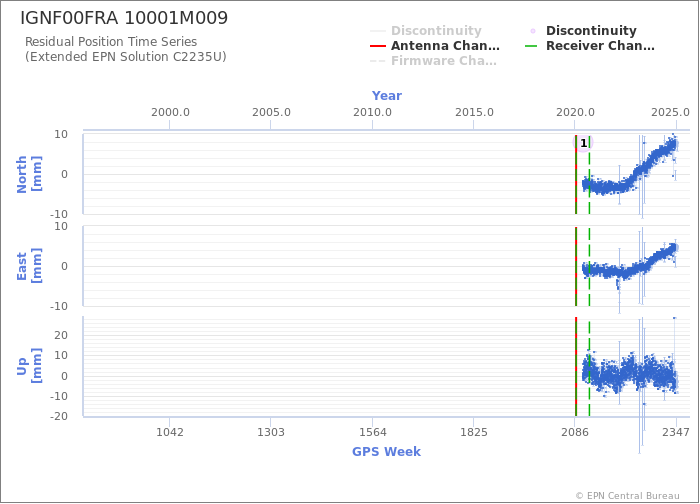

Position time series

News

(select a EUREF mail) EUREF MAIL No 10373 (10-Sep-2020) - IGNF00FRA : receiver change (by Tanguy Garmond) EUREF MAIL No 10266 (25-May-2020) - New EPN station IGNF00FRA (by EPN CB/C. Bruyninx)
