Aanekoski, Finland (KIV200FIN)

RESPONSIBLE FOR METADATA FGI (National Land Survey of Finland)
RESPONSIBLE AGENCY FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION kiv200fin_20220823.log
STATUS IN EPN included since 02-04-2017
LAST AVAILABLE DATA 28-09-2022
LAST RECEIVER JAVAD TRE_3 DELTA (19-11-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA JAVRINGANT_DM SCIS (22-08-2022 to now)
INDIVIDUAL CALIBRATION(S)
  • JAVRINGANT_DM/SCIS (SN: 00744) from 2013-10-10 to 2019-07-03, from 2022-08-22 to now :
  • JAVRINGANT_DM/SCIS (SN: 02079) from 2019-07-03 to 2022-08-22 :
DATA ROUTINELY ANALYSED BY BEV, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 231/2020 N/A
BEV 001/2020 N/A
BKGE 231/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 265/2022 78.57%
BEV 271/2022 100%
BKGE 271/2022 100%
Hourly
Data centres Online Last data Availability Latency
BEV 232/2020 (A) N/A 0%
BKGE 232/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 272/2022 (N) 100% 99.4%
BKGE 272/2022 (N) 100% 98.81%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

KIV200FIN0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2022/09/28 21:02 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)

    2022/09/28 21:02 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1663 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2022/09/28 18:57 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1663 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2022/09/29 00:05 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1663 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station KIV200FIN
Last ETRF2000 position valid from 092/2017 to 106/2022
expressed at epoch 001/2010
X = 2632282.137 m Vx = 0.0023 m/y
Y = 1266940.929 m Vy = 0.0017 m/y
Z = 5651029.823 m Vz = 0.0032 m/y

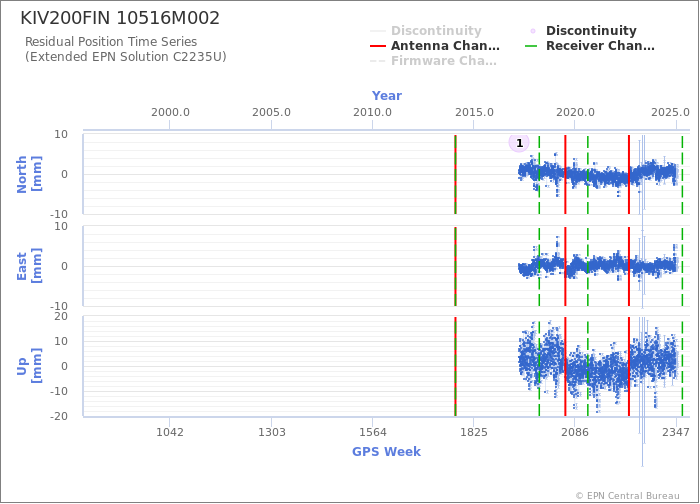

Position time series

Position time series

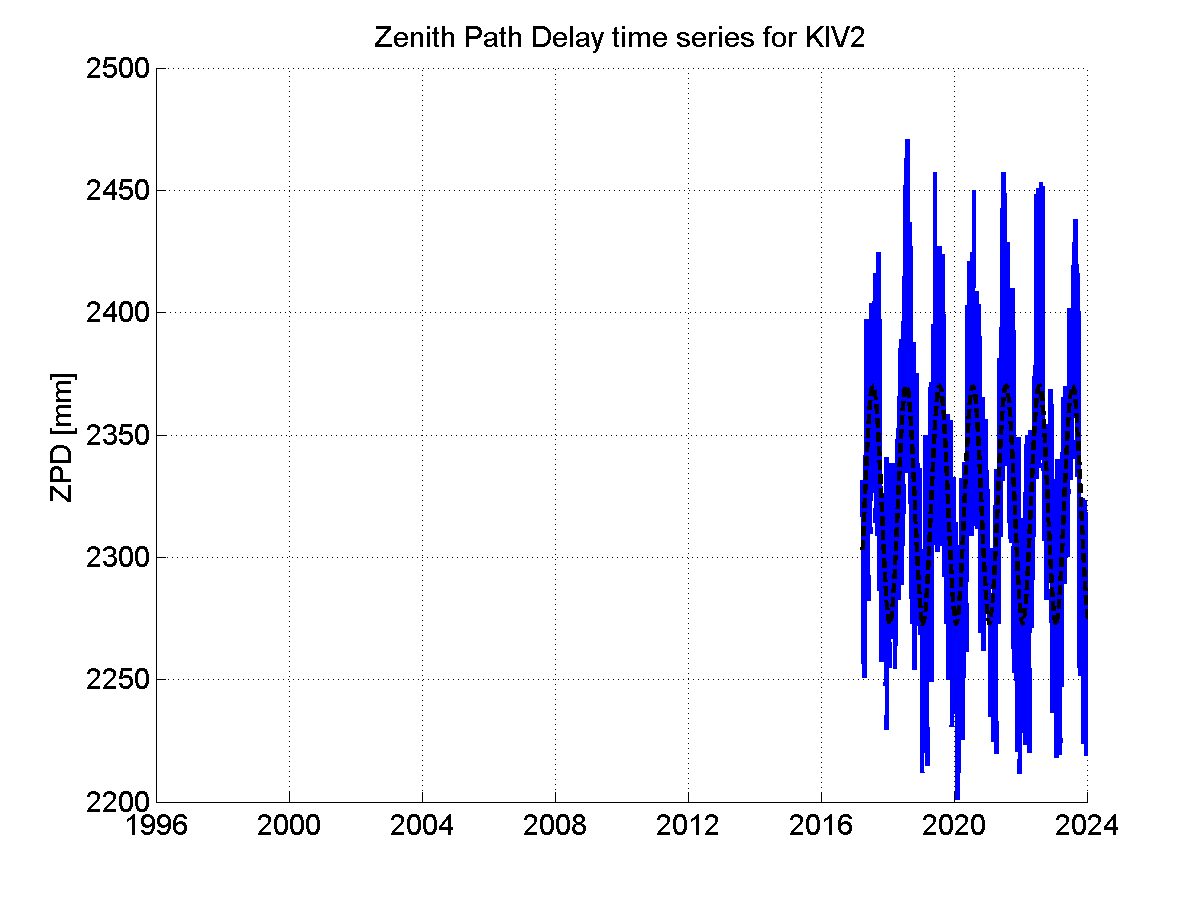

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

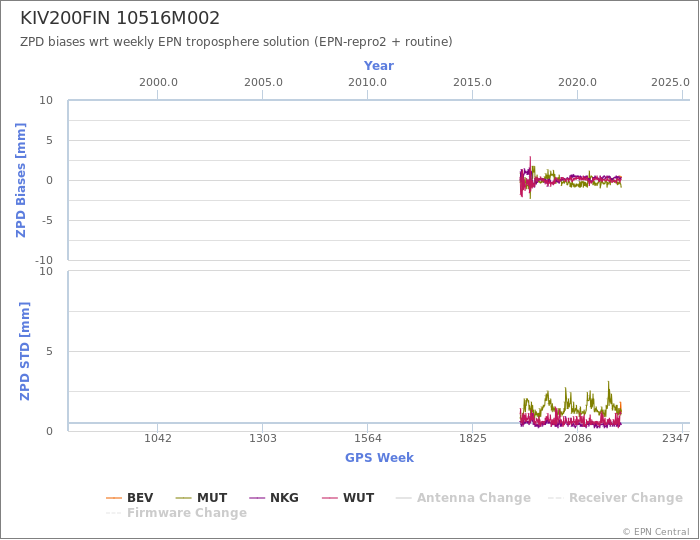

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
