Mukachevo, Ukraine (MKRS00UKR)

RESPONSIBLE FOR METADATA MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
RESPONSIBLE AGENCY CSIRP&NFC (Centre of Special Information Receiving and Processing and Navigation Field Control)
CURRENT STATION CONFIGURATION mkrs00ukr_20180321.log
STATUS IN EPN included since 29-04-2018
LAST AVAILABLE DATA 21-09-2022
LAST RECEIVER NOV OEMV3 (20-03-2018 to now)
SET TO TRACK GPS+GLO
LAST ANTENNA NOV702GG NONE (30-11-2008 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEV, MUT, UPA, WUT
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 263/2022 71.43%
BEV 264/2022 75%
BKGE 264/2022 75%
Hourly
Data centres Online Last data Availability Latency
BEV 264/2022 (G) 0% 0%
BKGE 264/2022 (G) 0% 0%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station MKRS00UKR
Last ETRF2000 position valid from 119/2018 to 106/2022
expressed at epoch 001/2010
X = 3915409.483 m Vx = -0.0001 m/y
Y = 1638600.016 m Vy = 0.0002 m/y
Z = 4745086.901 m Vz = -0.0013 m/y

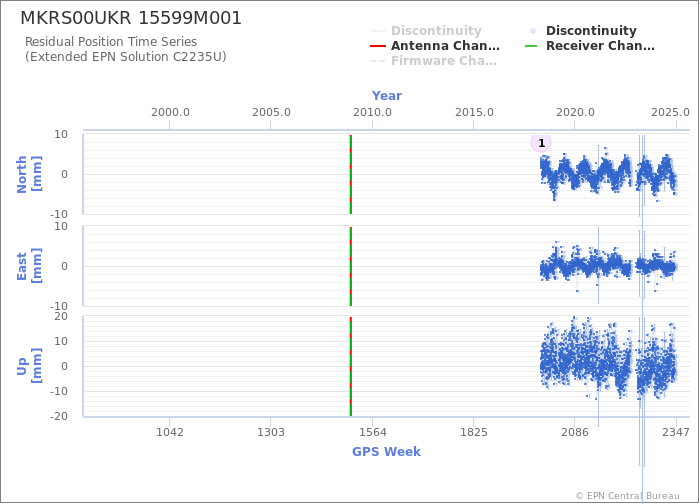

Position time series

Position time series

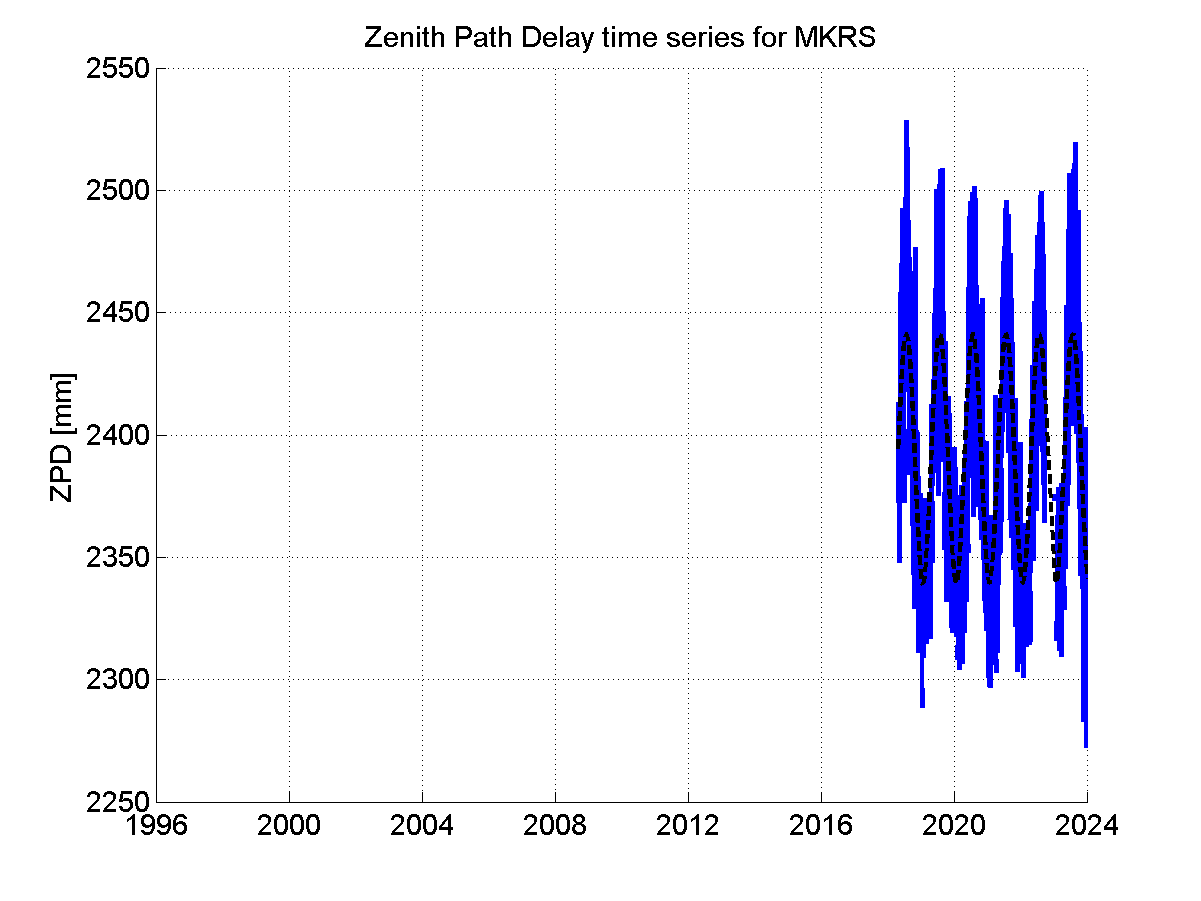

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

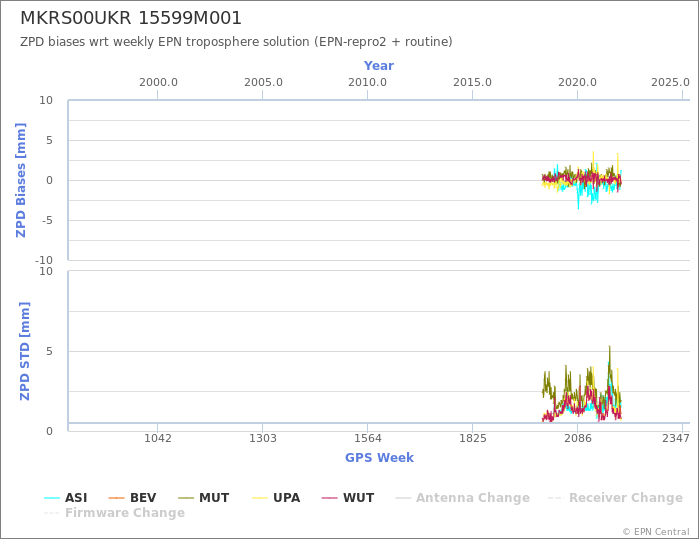

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
