Minsk, Belarus (MNKW00BLR)

RESPONSIBLE AGENCY BYGEO (State Enterprise Belgeodesy)
RESPONSIBLE FOR METADATA BYGEO (State Enterprise Belgeodesy)
CURRENT STATION CONFIGURATION mnkw00blr_20220801.log
STATUS IN EPN included since 12-04-2020
LAST AVAILABLE DATA 18-04-2024
LAST RECEIVER LEICA GR30 (01-08-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAT504GG/LEIS (01-02-2010 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, GFZ, NKG, WUT

The RINEX 2 data are no more submitted to the EPN data centres since 05-03-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 062/2022 N/A
BEV 062/2022 N/A
BKGE 062/2022 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 103/2024 75%
BEV 109/2024 96.43%
BKGE 109/2024 96.43%
Hourly

No recent data available

Hourly

No recent data available

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station MNKW00BLR
Last ETRF2000 position valid from 103/2020 to 316/2022
expressed at epoch 202/2021
X = 3337518.732 m
Y = 1742285.374 m
Z = 5131458.999 m

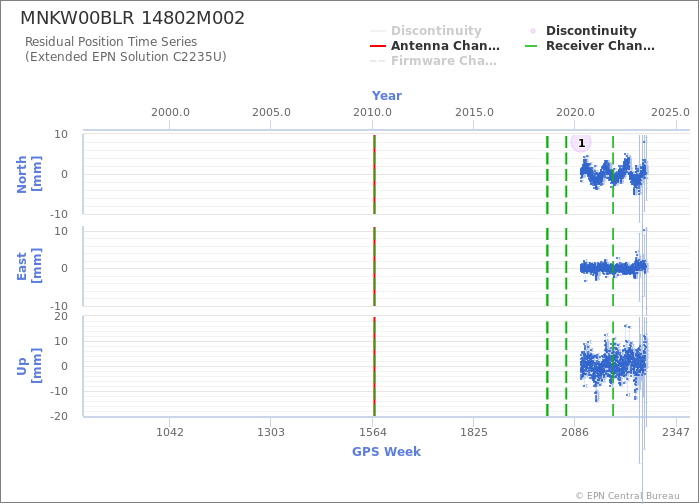

Position time series

Position time series

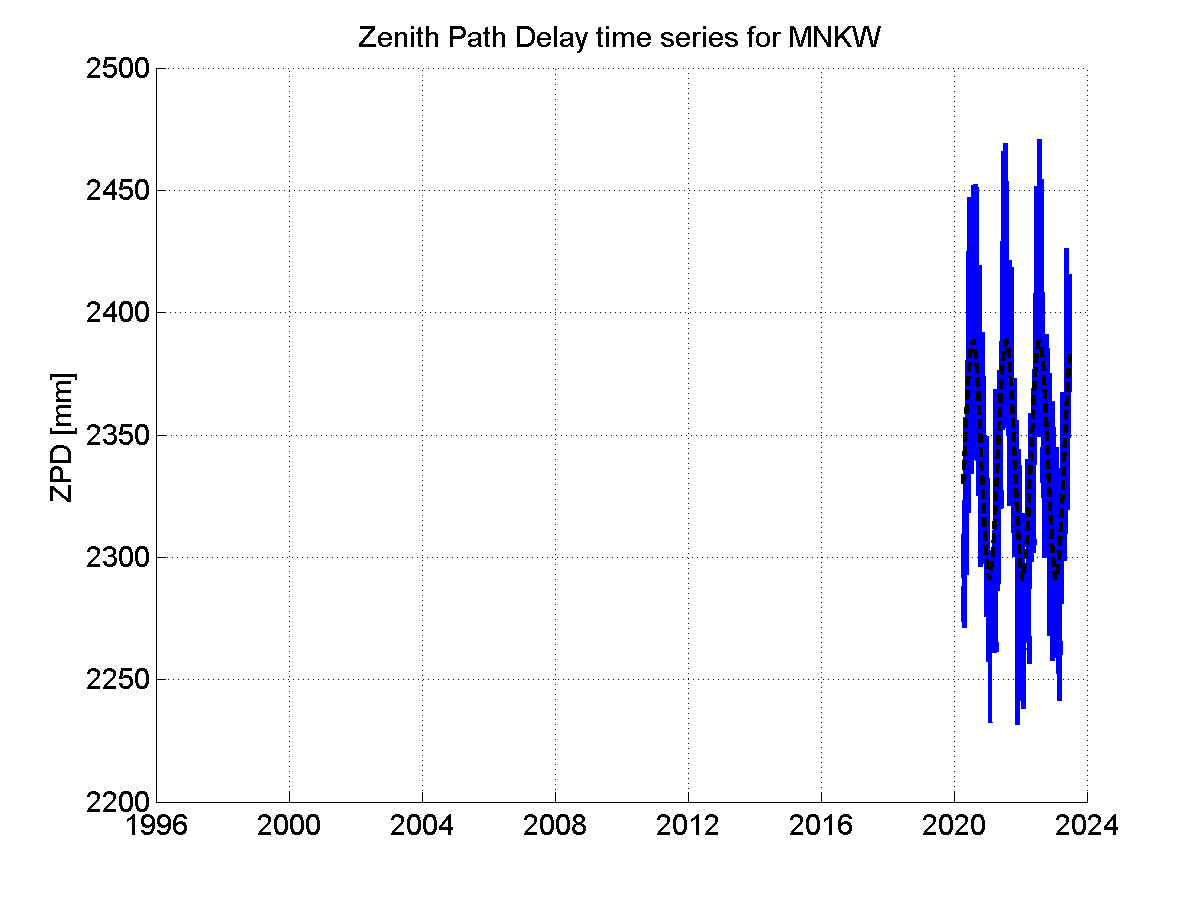

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

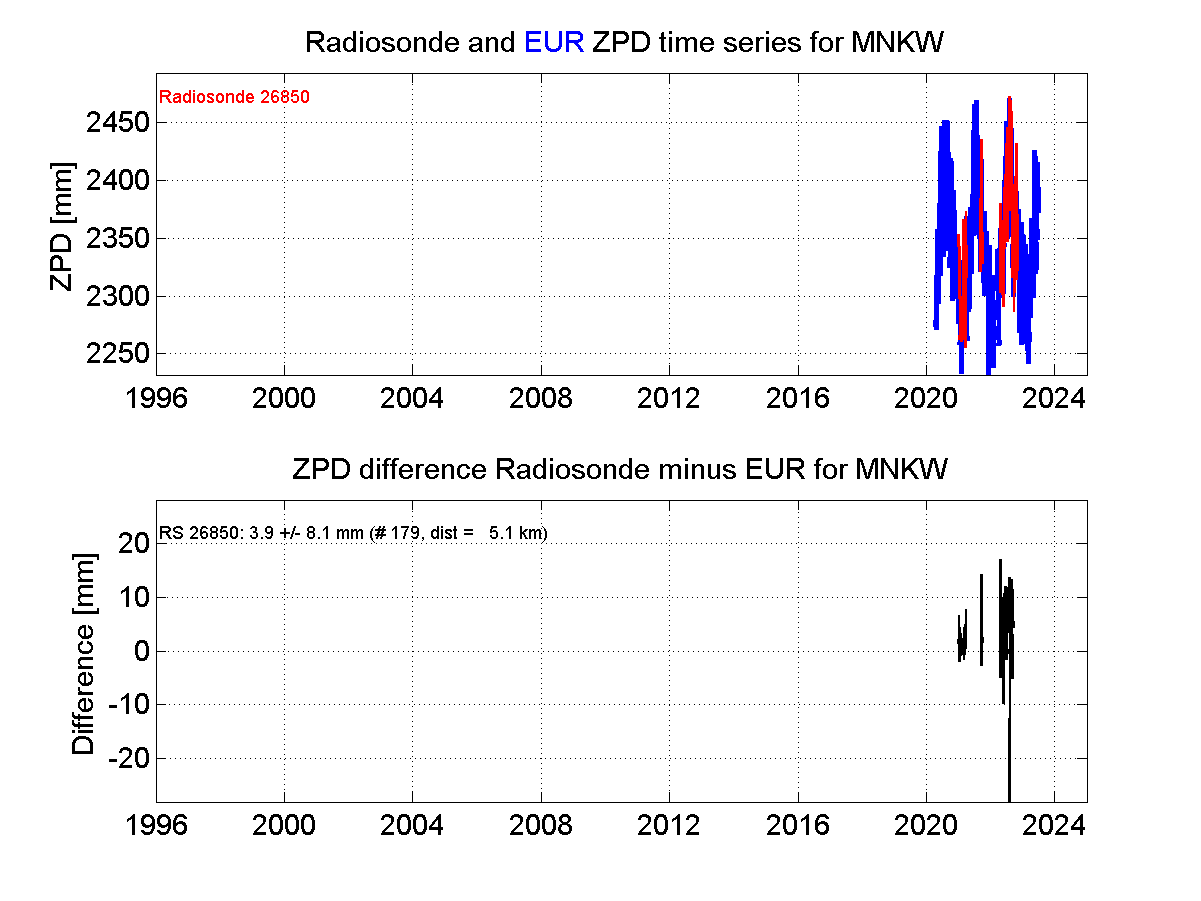

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
