EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	RGZ (Republic Geodetic Authority)
RESPONSIBLE FOR METADATA	RGZ (Republic Geodetic Authority)
CURRENT STATION CONFIGURATION	npaz00srb_20230207.log
STATUS IN EPN	included since 21-06-2015
LAST AVAILABLE DATA	22-04-2024
LAST RECEIVER	TRIMBLE NETR9 (02-04-2019 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM115000.00/TZGD (18-09-2017 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, RGA, SGO, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 26-05-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

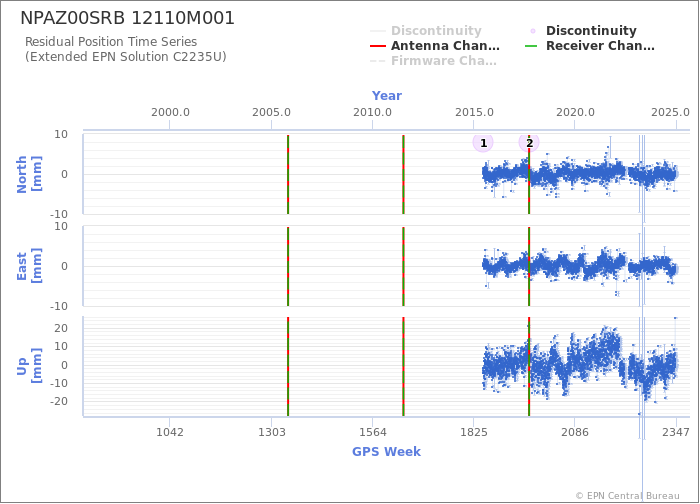

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station NPAZ00SRB
Last ETRF2000 position valid from 275/2017 to 316/2022 expressed at epoch 001/2010
X = 4365991.251 m	Vx = -0.0008 m/y
Y = 1634053.045 m	Vy = 0.0002 m/y
Z = 4339210.504 m	Vz = -0.0019 m/y
