Plymouth, United Kingdom Of Great Britain And Northern Ireland (the) (PMTH00GBR)

The RINEX 2 data are no more submitted to the EPN data centres since 2021-02-18.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 049/2021 N/A
BEV 049/2021 N/A
BKGE 049/2021 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 103/2021 78.57%
BEV 109/2021 100%
BKGE 109/2021 100%
Hourly
Data centres Online Last data Availability Latency
BEV 049/2021 (J) N/A 0%
BKGE 049/2021 (J) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 110/2021 (T) 99.4% 99.4%
BKGE 110/2021 (T) 99.4% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified PMTH00GBR as a class A station
Last ETRF2000 position valid from 043/2017 to 312/2020
expressed at epoch 001/2010
X = 4061825.486 m Vx = -0.0018 m/y
Y = -293021.187 m Vy = -0.0001 m/y
Z = 4892572.204 m Vz = -0.0014 m/y

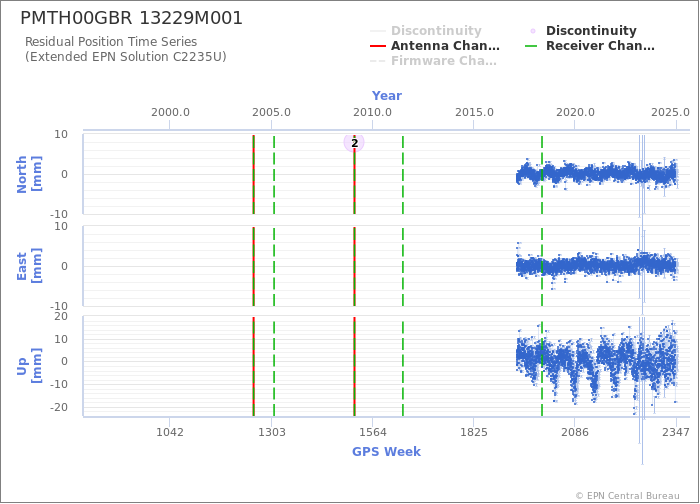

Position time series

Position time series

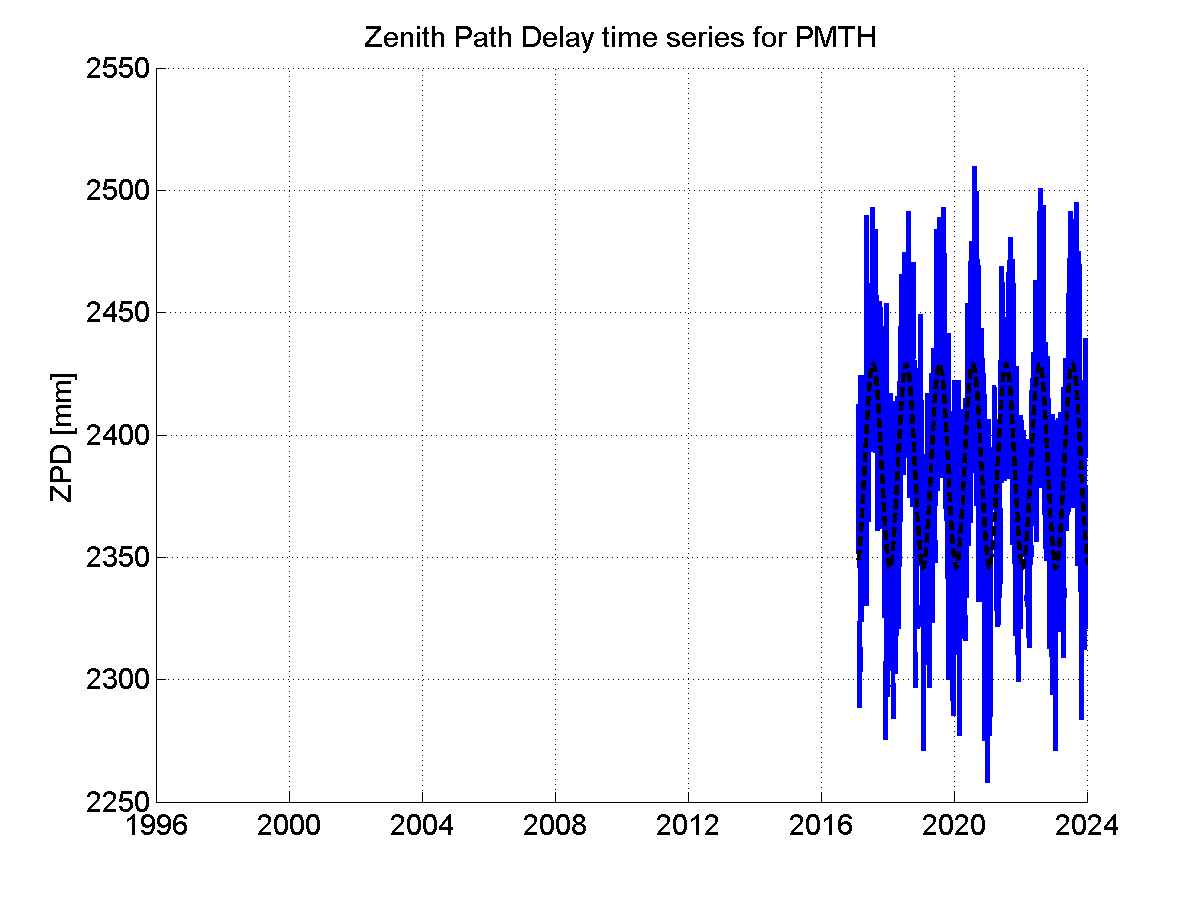

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

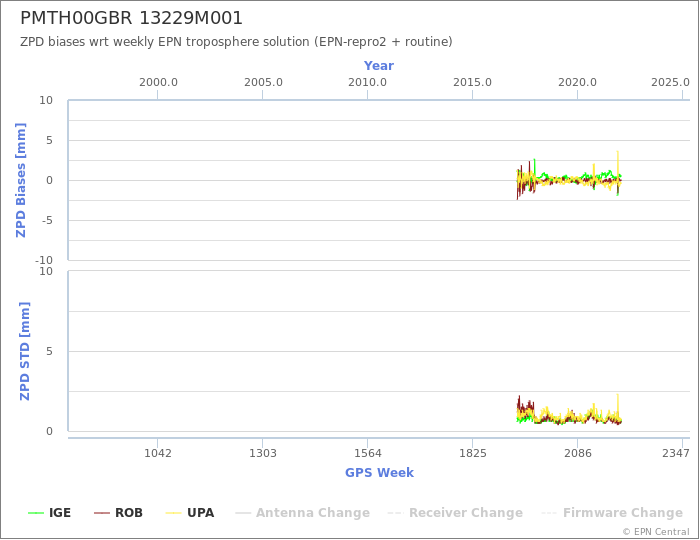

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
