San Fernando, Spain (SFER00ESP)

The RINEX 2 data are no more submitted to the EPN data centres since 2020-05-04.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 124/2020 N/A
BEV 124/2020 N/A
BKGI 124/2020 N/A
RINEX V3.03 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 284/2021 78.57%
BEV 289/2021 96.43%
BKGI 289/2021 96.43%
Hourly
Data centres Online Last data Availability Latency
BEV 125/2020 (G) N/A 0%
BKGI 125/2020 (G) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 291/2021 (C) 100% 100%
BKGI 291/2021 (C) 100% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified SFER00ESP as a class A station
Last ETRF2000 position valid from 018/2019 to 156/2021
expressed at epoch 001/2010
X = 5105519.180 m Vx = -0.0007 m/y
Y = -555146.182 m Vy = -0.0039 m/y
Z = 3769803.127 m Vz = 0.0002 m/y

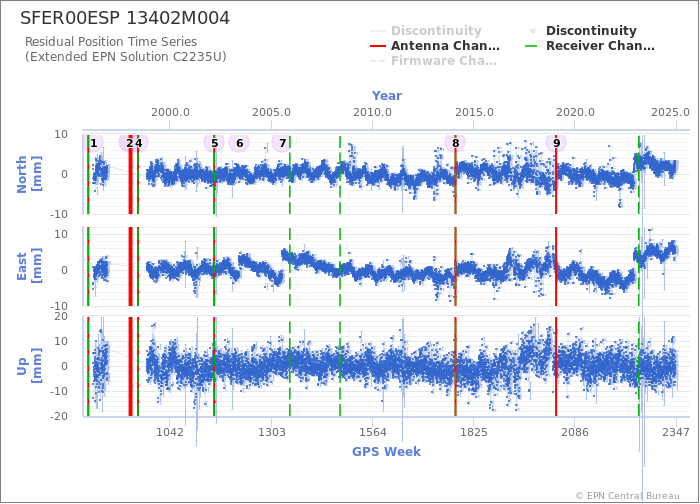

Position time series

Position time series

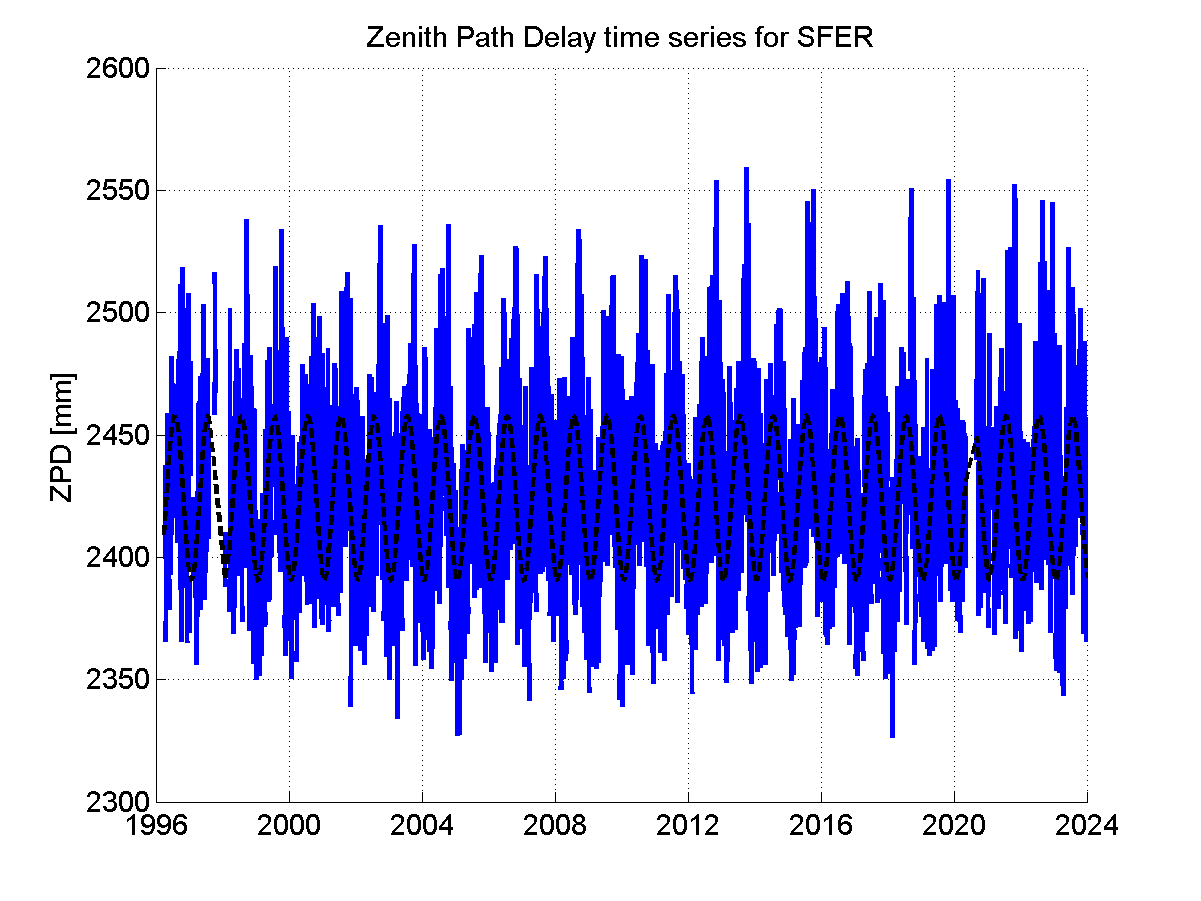

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

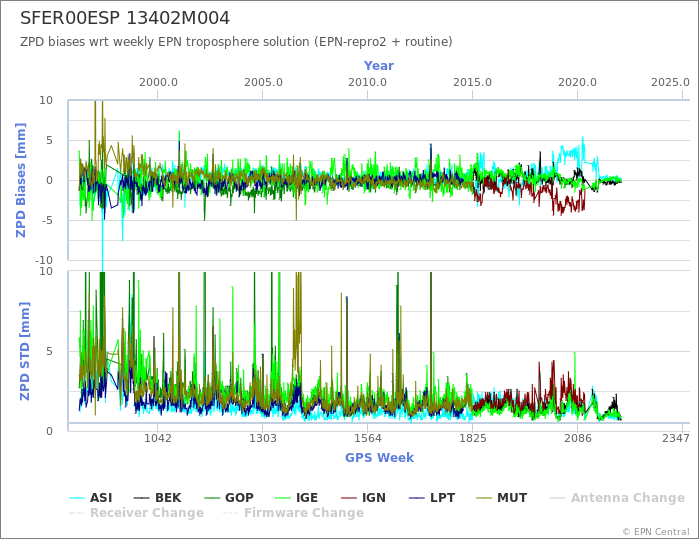

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

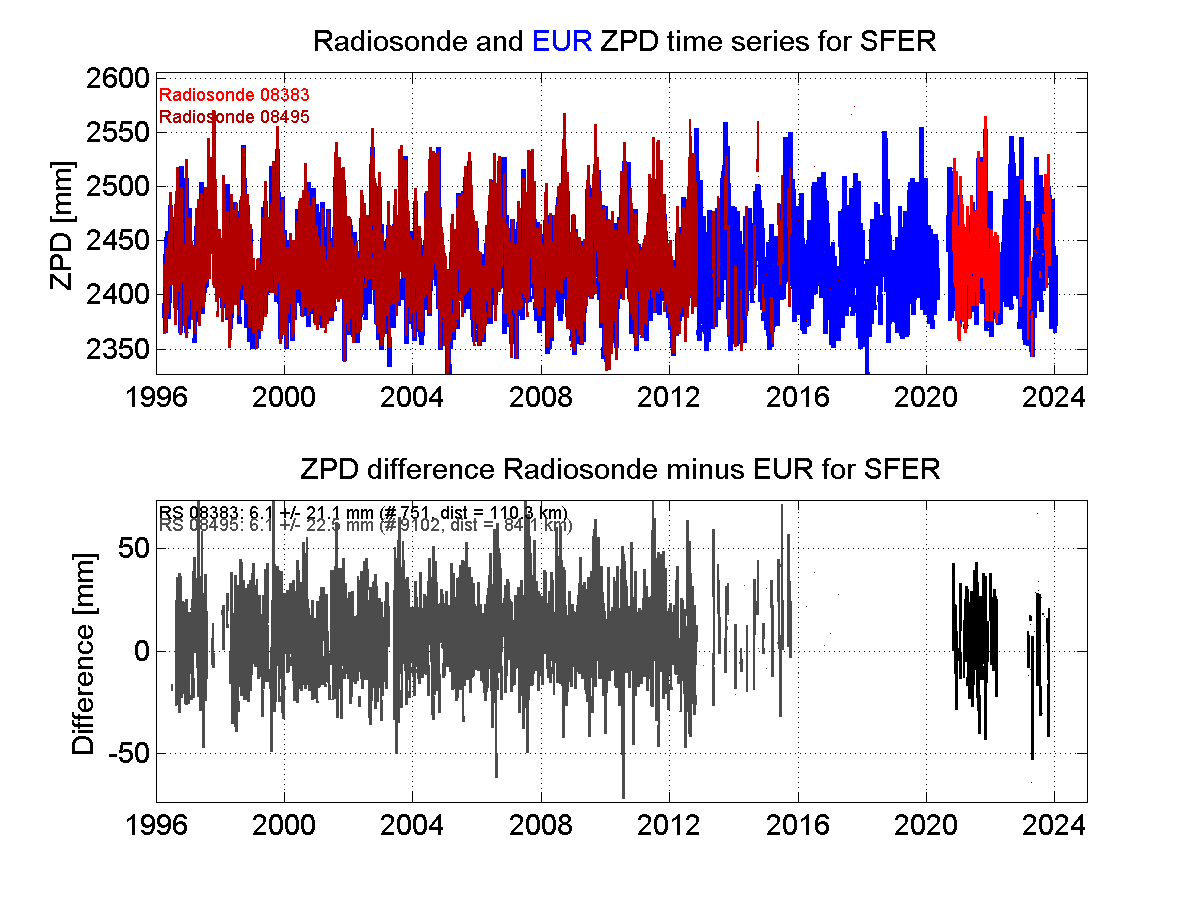

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
