EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	KAD (Kadaster)
RESPONSIBLE FOR METADATA	DUT (Delft University of Technology)
CURRENT STATION CONFIGURATION	ters00nld_20230417.log
STATUS IN EPN	included since 20-06-1999
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	SEPT POLARX5E (25-11-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (20-11-2020 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 726700) from 2014-06-07 to 2020-11-20, from 2020-11-20 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2013-12-20)
DATA ROUTINELY ANALYSED BY	COD, GFZ, LPT, MUT, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 01-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

TERS00NLD0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/04/19 01:27 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt source table (GPS+GLO+GAL+BDS+QZSS)
2024/04/19 01:27 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/04/18 23:50 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/04/19 04:52 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

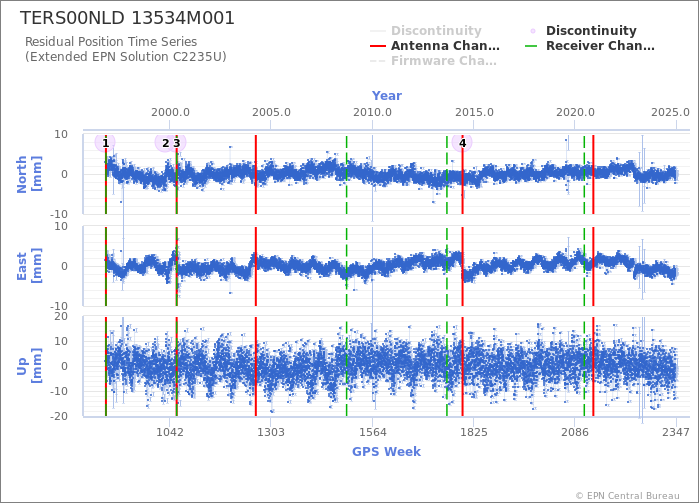

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station TERS00NLD
Last ETRF2000 position valid from 159/2014 to 316/2022 expressed at epoch 001/2010
X = 3798580.867 m	Vx = -0.0000 m/y
Y = 346993.843 m	Vy = 0.0006 m/y
Z = 5094780.812 m	Vz = -0.0016 m/y
