EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
RESPONSIBLE FOR METADATA	LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
CURRENT STATION CONFIGURATION	vis000swe_20221208.log
STATUS IN EPN	included since 03-11-1996
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	SEPT POLARX5 (08-12-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	AOAD/M_T/OSOD (08-11-1996 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, GFZ, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

VIS000SWE0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)
2024/04/19 03:06 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 03:06 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO+GAL+BDS)
2024/04/19 03:06 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0710 m) wrt site log (0.16284 m)
2024/04/19 03:06 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0814 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)
2024/04/19 01:26 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 01:26 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0710 m) wrt site log (0.16284 m)
2024/04/19 01:26 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0814 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)
2024/04/19 06:28 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 06:28 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0710 m) wrt site log (0.16284 m)
2024/04/19 06:28 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0814 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

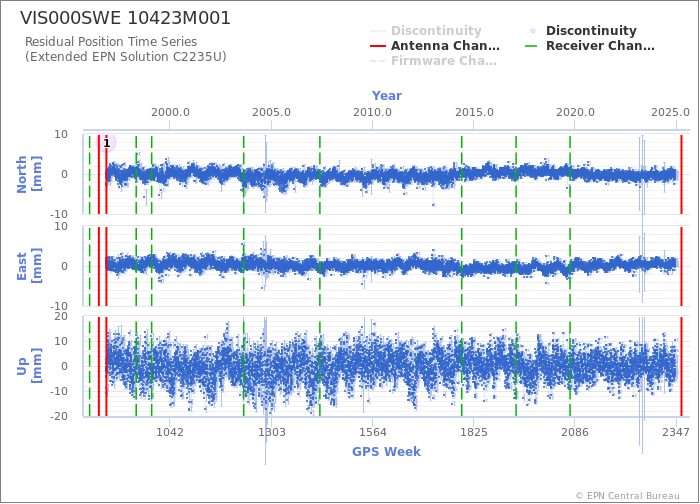

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station VIS000SWE
Last ETRF2000 position valid from 310/1996 to 316/2022 expressed at epoch 001/2010
X = 3246470.589 m	Vx = 0.0016 m/y
Y = 1077900.332 m	Vy = 0.0003 m/y
Z = 5365277.930 m	Vz = 0.0014 m/y
