EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGG (Wroclaw University of Environmental and Life Sciences Institute of Geodesy and Geoinformatics)
RESPONSIBLE FOR METADATA	IGG (Wroclaw University of Environmental and Life Sciences Institute of Geodesy and Geoinformatics)
CURRENT STATION CONFIGURATION	wroc00pol_20240215.log
STATUS IN EPN	included since 24-11-1996
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	22-07-2024
LAST RECEIVER	LEICA GR50 (15-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (22-10-2012 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725270) from 2012-10-22 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2012-09-07)
DATA ROUTINELY ANALYSED BY	BEV, BKG, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 31-05-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

WROC00POL0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/23 03:22 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/07/23 03:22 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/07/23 03:22 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/23 03:22 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM7)
2024/07/24 01:43 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/07/24 01:43 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO+GAL+BDS)
2024/07/24 01:43 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/24 01:43 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM7)
2024/07/23 06:46 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/07/23 06:46 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/23 06:46 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

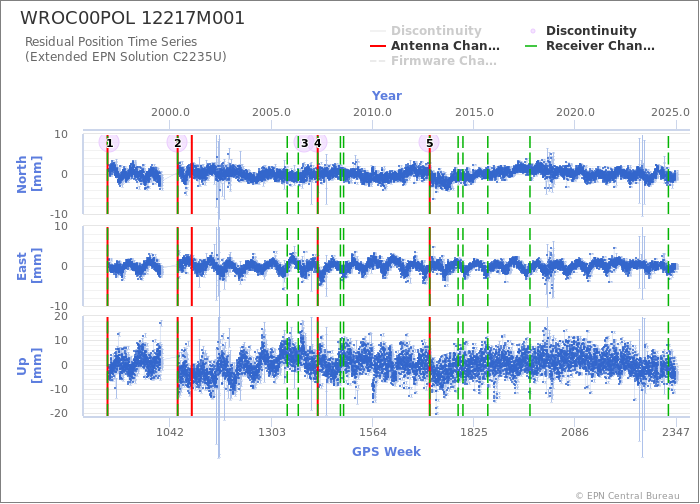

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station WROC00POL
Last ETRF2000 position valid from 302/2012 to 316/2022 expressed at epoch 001/2010
X = 3835751.621 m	Vx = -0.0004 m/y
Y = 1177249.743 m	Vy = -0.0007 m/y
Z = 4941605.047 m	Vz = -0.0008 m/y
