EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BMEDGS (Budapest University of Technology and Economics)
RESPONSIBLE FOR METADATA	BMEDGS (Budapest University of Technology and Economics)
CURRENT STATION CONFIGURATION	bute00hun_20240723.log
STATUS IN EPN	included since 31-10-2004
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (13-10-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (04-11-2013 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725335) from 2013-11-04 to now : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2013-04-09) TRM55971.00/TZGD (SN: 30436720) from 2007-07-31 to 2013-11-04 : BERL - ROBOT (freq: G01, G02, date: 2007-07-09)
DATA ROUTINELY ANALYSED BY	BEV, BKG, RGA, SGO, SUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

BUTE00HUN0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 10:58 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 10:58 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/11/20 10:58 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/21 07:42 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/21 07:42 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 09:00 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 09:00 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

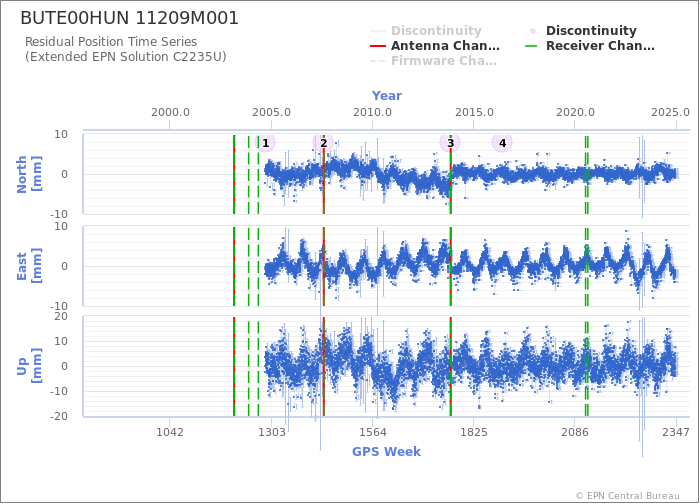

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BUTE00HUN
Last ETRF2000 position valid from 146/2016 to 316/2022 expressed at epoch 001/2010
X = 4081882.368 m	Vx = -0.0007 m/y
Y = 1410011.146 m	Vy = 0.0001 m/y
Z = 4678199.390 m	Vz = -0.0007 m/y
