EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA	IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION	eglt00fra_20240716.log
STATUS IN EPN	included since 03-07-2005
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (16-07-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	TRM57971.00/NONE (11-10-2012 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, IGN, LPT, ROB, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

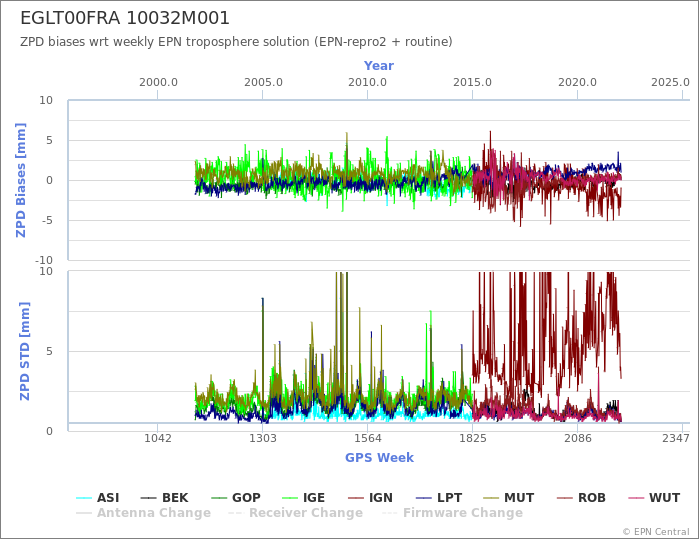

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

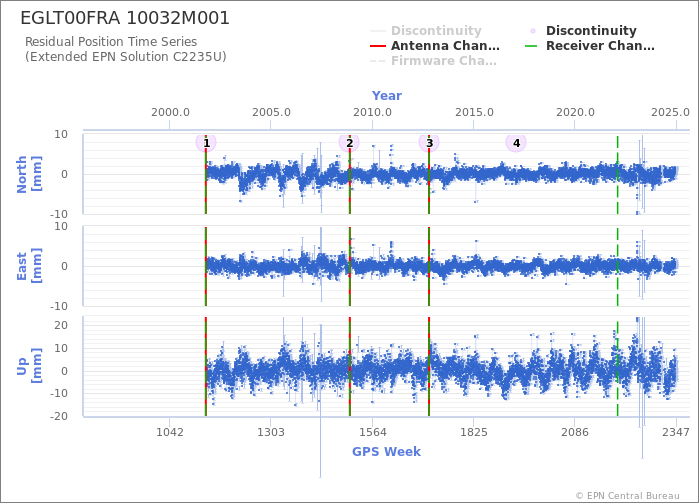

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station EGLT00FRA
Last ETRF2000 position valid from 029/2017 to 316/2022 expressed at epoch 001/2010
X = 4483373.866 m	Vx = -0.0001 m/y
Y = 160636.301 m	Vy = -0.0000 m/y
Z = 4519408.742 m	Vz = -0.0006 m/y
