EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	HGM (Map General Directorate)
RESPONSIBLE FOR METADATA	GCM (General Directorate of Mapping)
CURRENT STATION CONFIGURATION	ank200tur_20220218.log
STATUS IN EPN	included since 05-09-2021
DATA LICENSE	CC0-1.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (18-02-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM115000.00/NONE (28-06-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BEV, BKG, GFZ
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 11-02-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station ANK200TUR
Last ETRF2000 position valid from 248/2021 to 316/2022 expressed at epoch 048/2022
X = 4124041.412 m
Y = 2655251.693 m
Z = 4065430.052 m

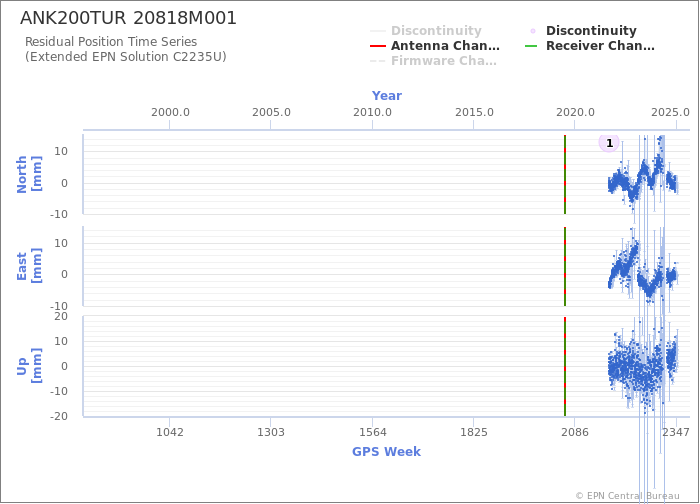

Position time series

Tropospheric Delays

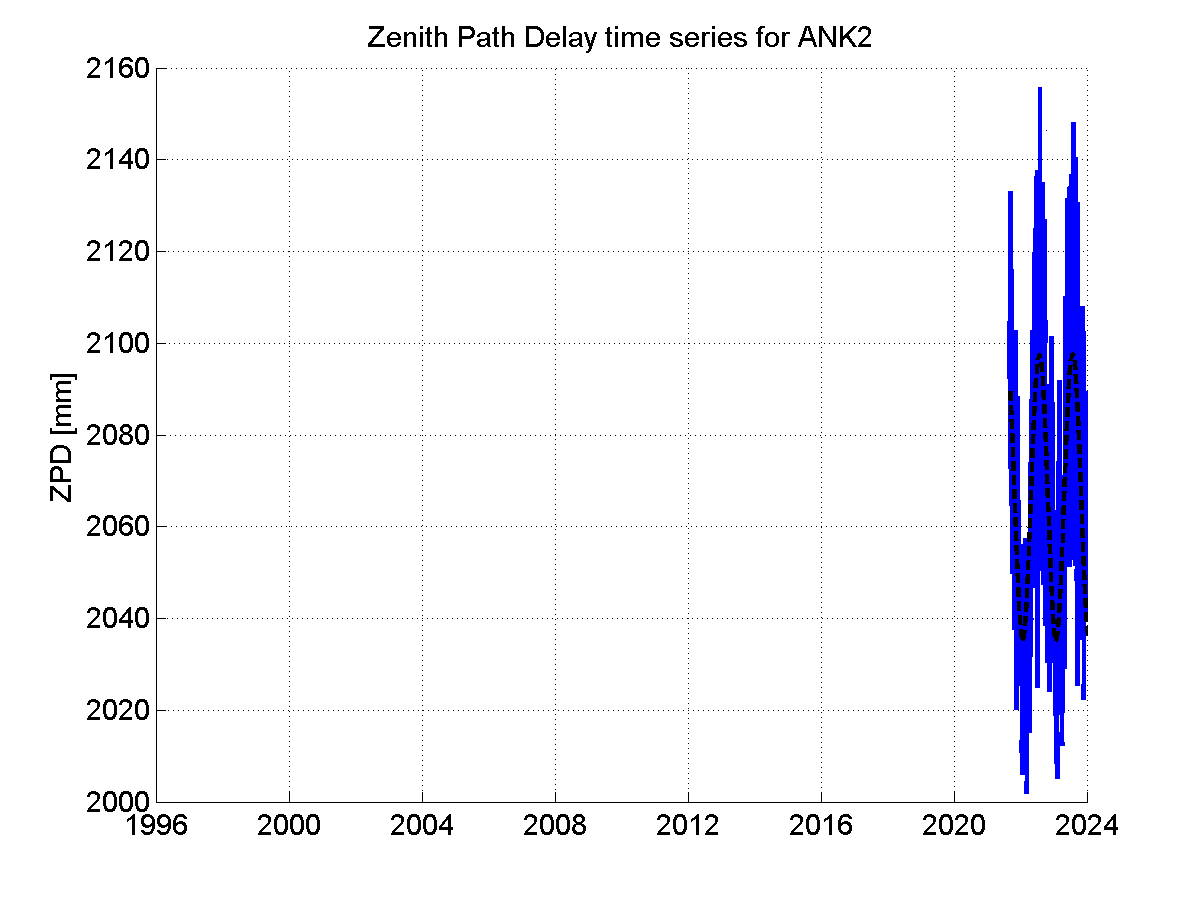

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

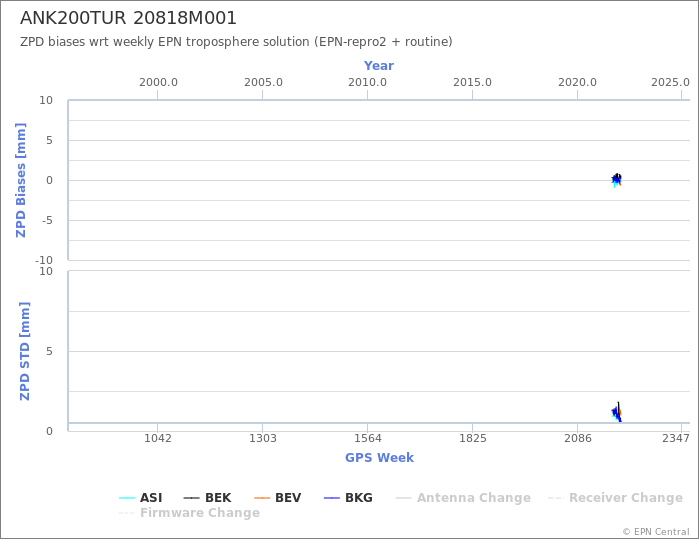

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Ankara, Turkey (ANK200TUR)
