Belfast, United Kingdom Of Great Britain And Northern Ireland (the) (BELF00GBR)

RESPONSIBLE AGENCY OSNI (Ordnance Survey of Northern Ireland)
RESPONSIBLE FOR METADATA OSNI (Ordnance Survey of Northern Ireland)
CURRENT STATION CONFIGURATION belf00gbr_20241112.log
STATUS IN EPN former since 10-04-2016
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 07-04-2016 (decommissioned station)
LAST RECEIVER LEICA GRX1200GGPRO (30-06-2015 to 07-04-2016)
SET TO TRACK GPS+GLO
LAST ANTENNA LEIAT504GG/LEIS (13-09-2014 to 07-04-2016)
INDIVIDUAL CALIBRATION(S) none
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 097/2016
BKGE 098/2016
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station BELF00GBR
Last ETRF2000 position valid from 118/2008 to 099/2016
expressed at epoch 001/2010
X = 3685258.226 m Vx = -0.0004 m/y
Y = -382909.278 m Vy = -0.0003 m/y
Z = 5174310.798 m Vz = -0.0003 m/y
Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

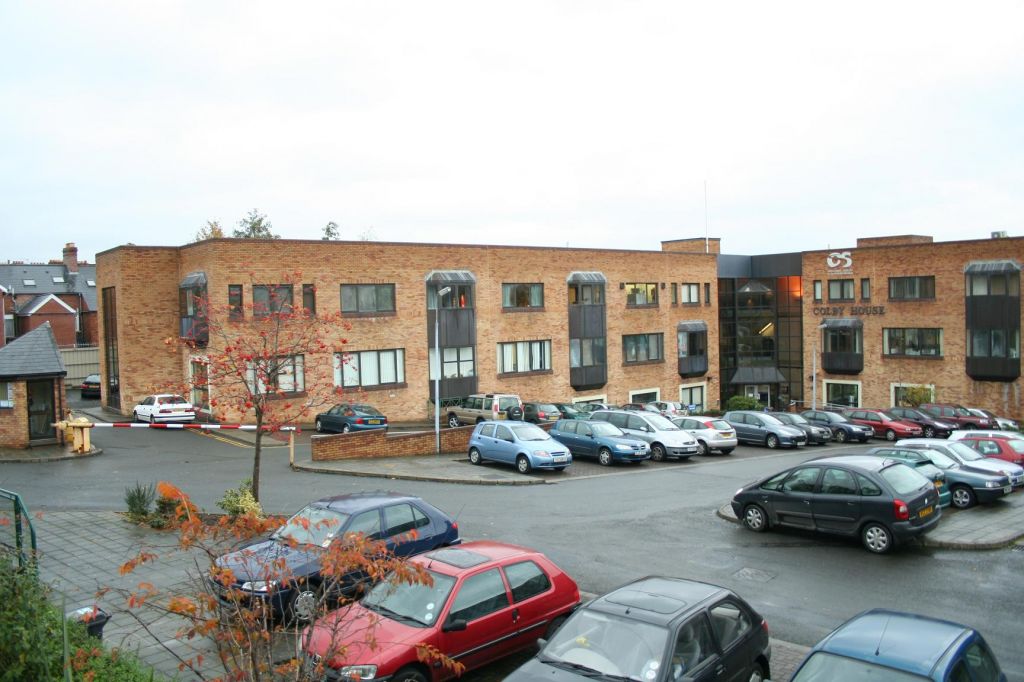

Pictures
