Trapani, Italy (BIRG00ITA)

RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION birg00ita_20220913.log
STATUS IN EPN included since 05-06-2022
LAST AVAILABLE DATA 25-09-2023
LAST RECEIVER LEICA GR30 (29-10-2019 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA LEIAR20/NONE (29-10-2019 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, BKG, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 08-02-2022.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.03 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 262/2023 78.57%
BEV 268/2023 100%
BKGE 268/2023 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 269/2023 (M) 100% 98.81%
BKGE 269/2023 (M) 100% 98.81%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

BIRG00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/09/25 17:47 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/09/25 17:47 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)

    2023/09/25 17:47 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.20.232) wrt site log (4.20/7.300)

    2023/09/25 17:47 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 3.5332 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/09/25 15:32 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/09/25 15:32 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.20.232) wrt site log (4.20/7.300)

    2023/09/25 15:32 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 3.5332 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/09/25 20:33 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/09/25 20:33 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.20.232) wrt site log (4.20/7.300)

    2023/09/25 20:33 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 3.5332 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station BIRG00ITA
Last ETRF2000 position valid from 163/2022 to 307/2022
expressed at epoch 224/2022
X = 4919304.205 m
Y = 1091123.593 m
Z = 3897292.761 m

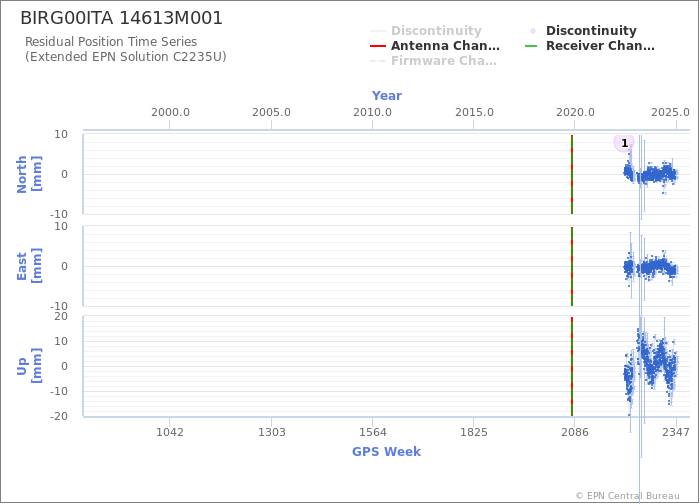

Position time series

Position time series

Location

Pictures
