EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGIK (Institute of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	IGIK (Institute of Geodesy and Cartography)
CURRENT STATION CONFIGURATION	bogo00pol_20180123.log
STATUS IN EPN	included since 30-06-1996
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JPS EGGDT (23-01-2018 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	ASH700936C_M/SNOW (17-08-2001 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, COD, GFZ, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 09-06-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BOGO00POL
Last ETRF2000 position valid from 230/2001 to 316/2022 expressed at epoch 001/2010
X = 3633739.308 m	Vx = -0.0004 m/y
Y = 1397433.928 m	Vy = -0.0007 m/y
Z = 5035353.285 m	Vz = -0.0009 m/y

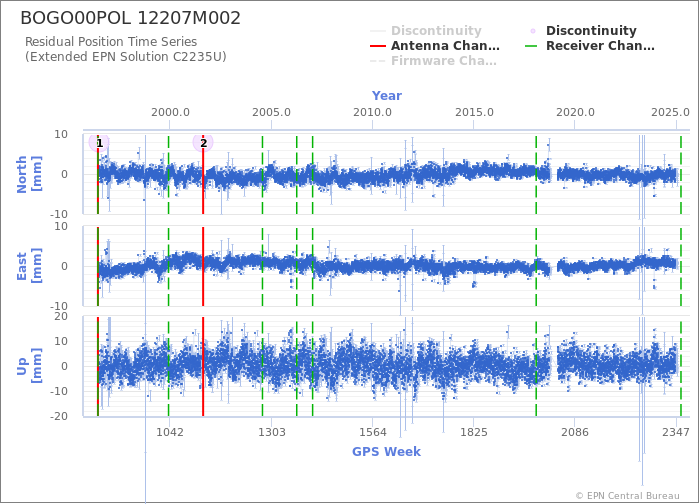

Position time series

Tropospheric Delays

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

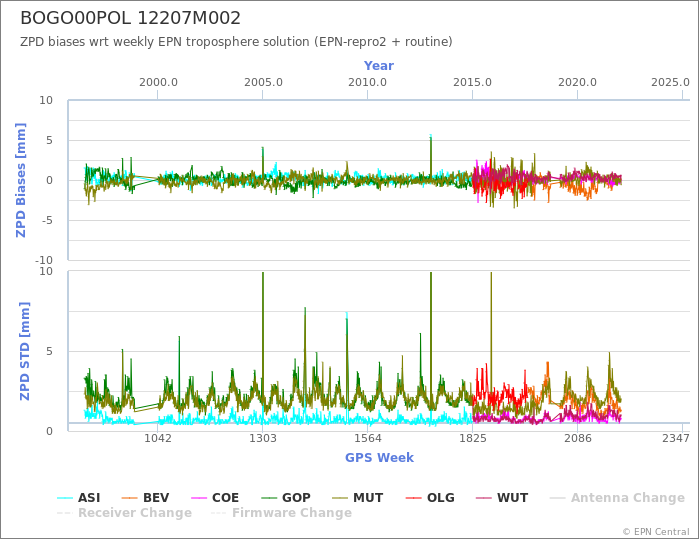

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

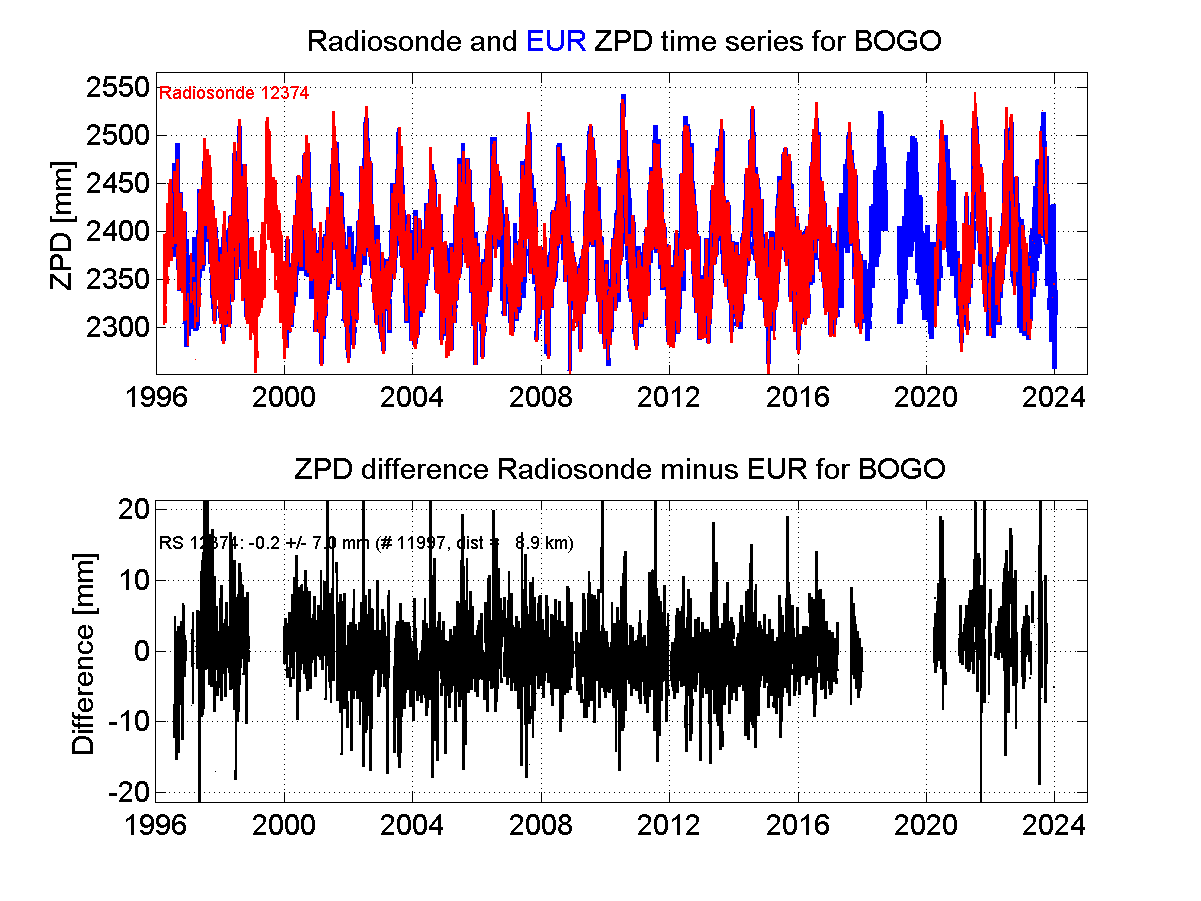

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Borowa Gora, Poland (BOGO00POL)
