EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SRCPAS (Astrogeodynamical Observatory)
RESPONSIBLE FOR METADATA	SRCPAS (Astrogeodynamical Observatory)
CURRENT STATION CONFIGURATION	bor100pol_20220425.log
STATUS IN EPN	included since 31-12-1995
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (18-09-2020 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA	TRM59800.00/NONE (05-10-2016 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, COD, MUT, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 25-04-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

BOR100POL0 :

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

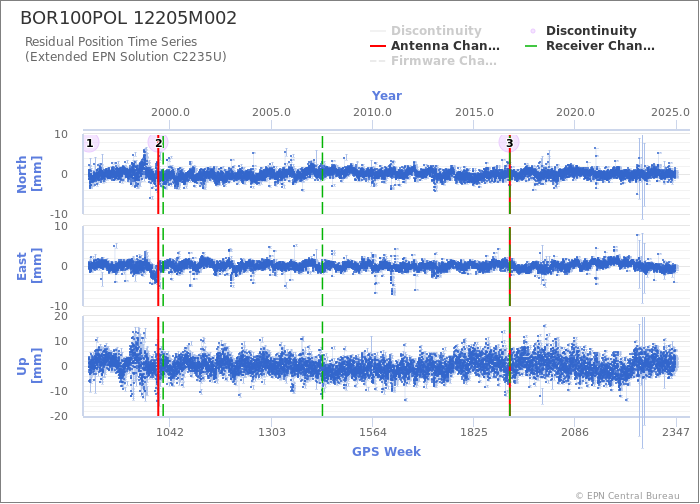

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BOR100POL
Last ETRF2000 position valid from 283/2016 to 316/2022 expressed at epoch 001/2010
X = 3738358.778 m	Vx = -0.0006 m/y
Y = 1148173.499 m	Vy = -0.0004 m/y
Z = 5021815.570 m	Vz = -0.0012 m/y
