Cascais, Portugal (CASC00PRT)

RESPONSIBLE AGENCY DGT (Direcao-Geral do Territorio)
RESPONSIBLE FOR METADATA DGT (Direcao-Geral do Territorio)
CURRENT STATION CONFIGURATION casc00prt_20240219.log
STATUS IN EPN included since 20-09-1998
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 01-07-2024
LAST RECEIVER TRIMBLE ALLOY (19-02-2024 to now)
SET TO TRACK GPS+GLO+GAL
LAST ANTENNA TRM159900.00/NONE (26-01-2021 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEK, COD, IGE, IGN
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 14-07-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 196/2020 N/A
BEV 023/2020 N/A
BKGE 191/2020 N/A
RINEX V3.04 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 177/2024 78.57%
BEV 183/2024 96.43%
BKGE 183/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 185/2024 (A) 32.74% 27.38%
BKGE 185/2024 (A) 100% 90.48%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

CASC00PRT0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)

    2024/07/02 18:29 RTCM 3.2/1006: Incorrect Antenna Height in stream (1.0210 m) wrt site log (1.13507 m)

    2024/07/02 18:29 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0515 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)

    2024/07/02 16:15 RTCM 3.2/1006: Incorrect Antenna Height in stream (1.0210 m) wrt site log (1.13507 m)

    2024/07/02 16:15 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0515 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)

    2024/07/02 21:18 RTCM 3.2/1006: Incorrect Antenna Height in stream (1.0210 m) wrt site log (1.13507 m)

    2024/07/02 21:18 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0515 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CASC00PRT
Last ETRF2000 position valid from 027/2021 to 316/2022
expressed at epoch 001/2010
X = 4917537.106 m Vx = -0.0009 m/y
Y = -815726.490 m Vy = -0.0009 m/y
Z = 3965857.128 m Vz = -0.0004 m/y

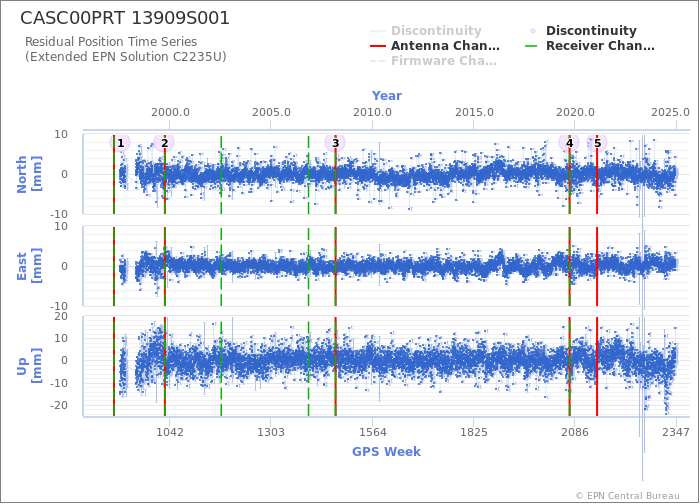

Position time series

Position time series

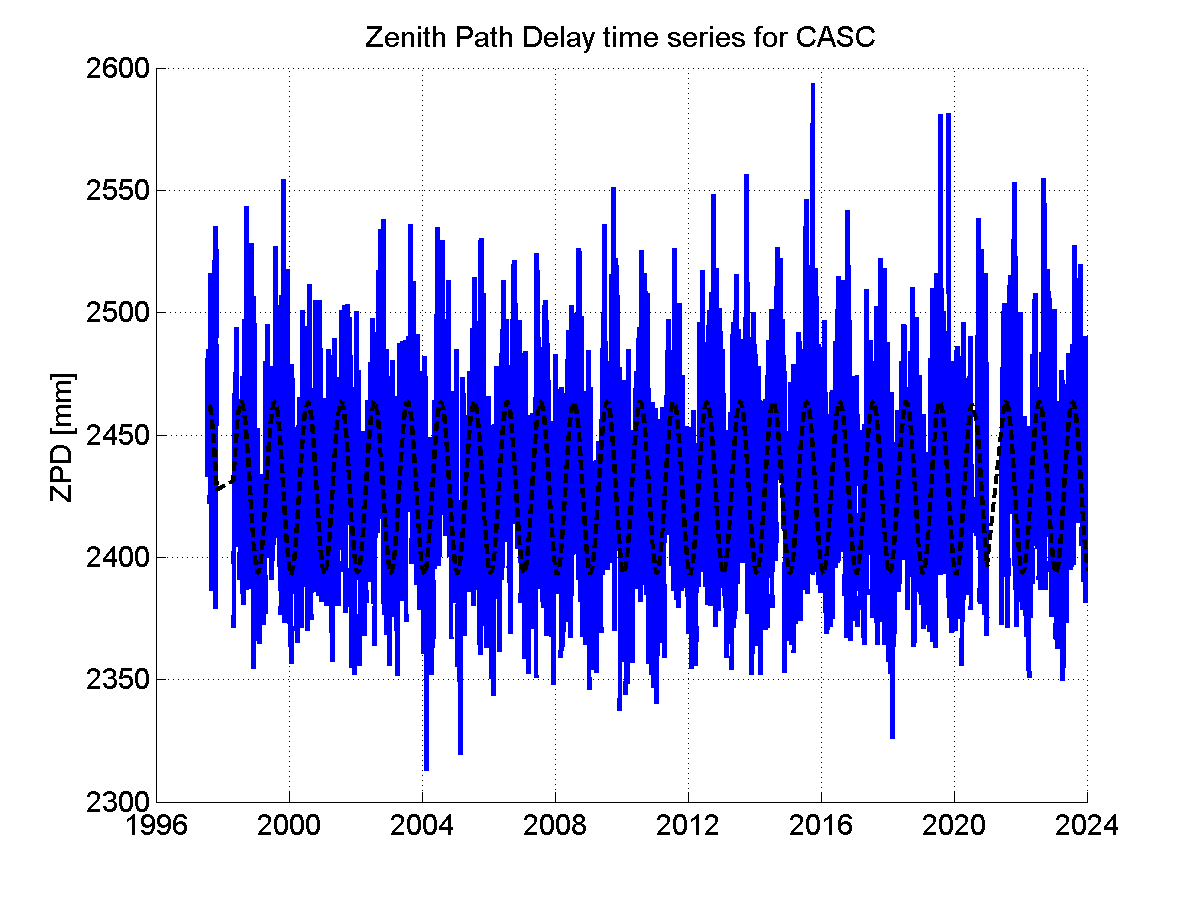

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

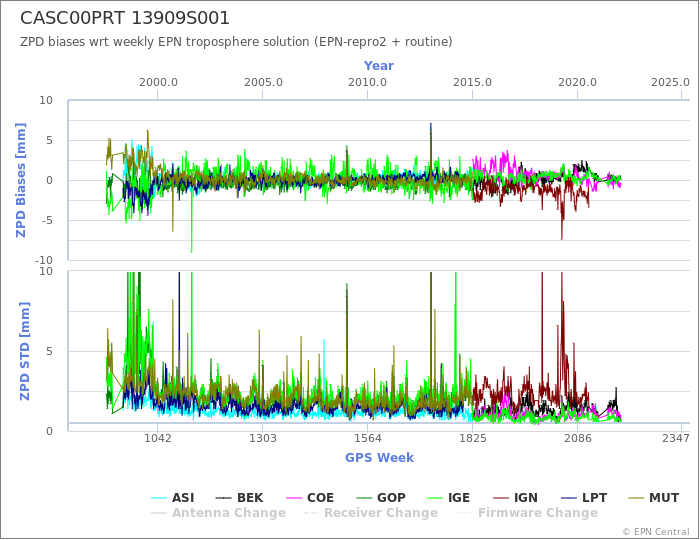

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

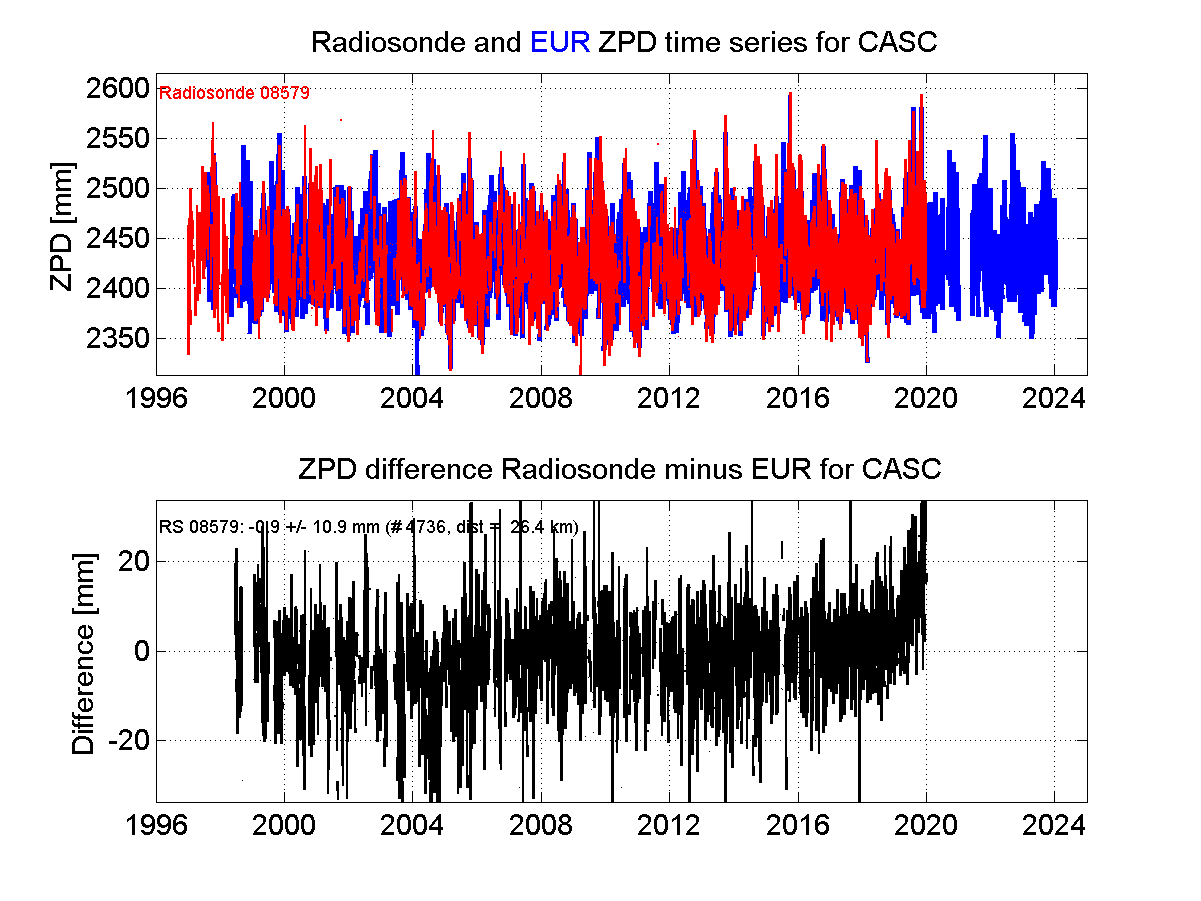

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
