EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	gor200deu_20240215.log
STATUS IN EPN	included since 14-08-2016
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (15-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R3/LEIT (13-09-2021 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 08500024) from 2019-03-26 to 2021-09-13 : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2019-01-18) LEIAR25.R3/LEIT (SN: 10170023) from 2021-09-13 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, E01, E05, E06, E07, E08, C01, C02, C05, C06, C07, C08, J01, J02, J05, J06, S01, S05, I05, date: 2019-09-23) - careful: not used within EPN analysis BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2020-02-03) LEIAR25.R4/LEIT (SN: 725057) from 2012-09-12 to 2019-03-26 : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C01, C05, C07, C08, C06, I05, date: 2019-05-21) - careful: not used within EPN analysis GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-07-29) BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2011-09-12) - careful: not used within EPN analysis BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-06-12) - careful: not used within EPN analysis TPSCR3_GGD/CONE (SN: 2170241) from 2008-04-15 to 2012-09-12 : GEO - ROBOT (freq: G01, G02, date: 2004-02-13)
DATA ROUTINELY ANALYSED BY	BEK, BKG, ROB, SUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-11-2021.

RINEX V2.11 - GPS+GLO+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		305/2021	N/A
BEV		305/2021	N/A
BKGE		305/2021	N/A

RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		319/2024	78.57%
BEV		324/2024	96.43%
BKGE		325/2024	100%

Hourly

No recent data available

Hourly

Data centres	Online	Last data	Availability	Latency
BEV		326/2024 (H)	100%	100%
BKGE		326/2024 (H)	100%	100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GOR200DEU
Last ETRF2000 position valid from 257/2021 to 316/2022 expressed at epoch 001/2010
X = 3767160.399 m	Vx = 0.0013 m/y
Y = 756144.738 m	Vy = -0.0003 m/y
Z = 5073919.763 m	Vz = 0.0005 m/y

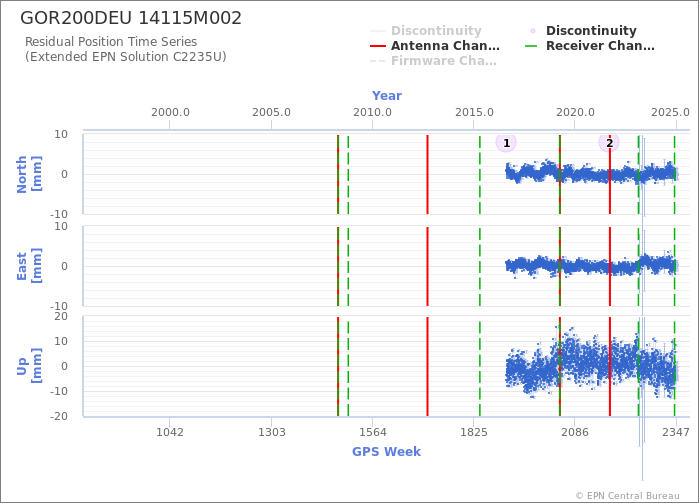

Position time series

Tropospheric Delays

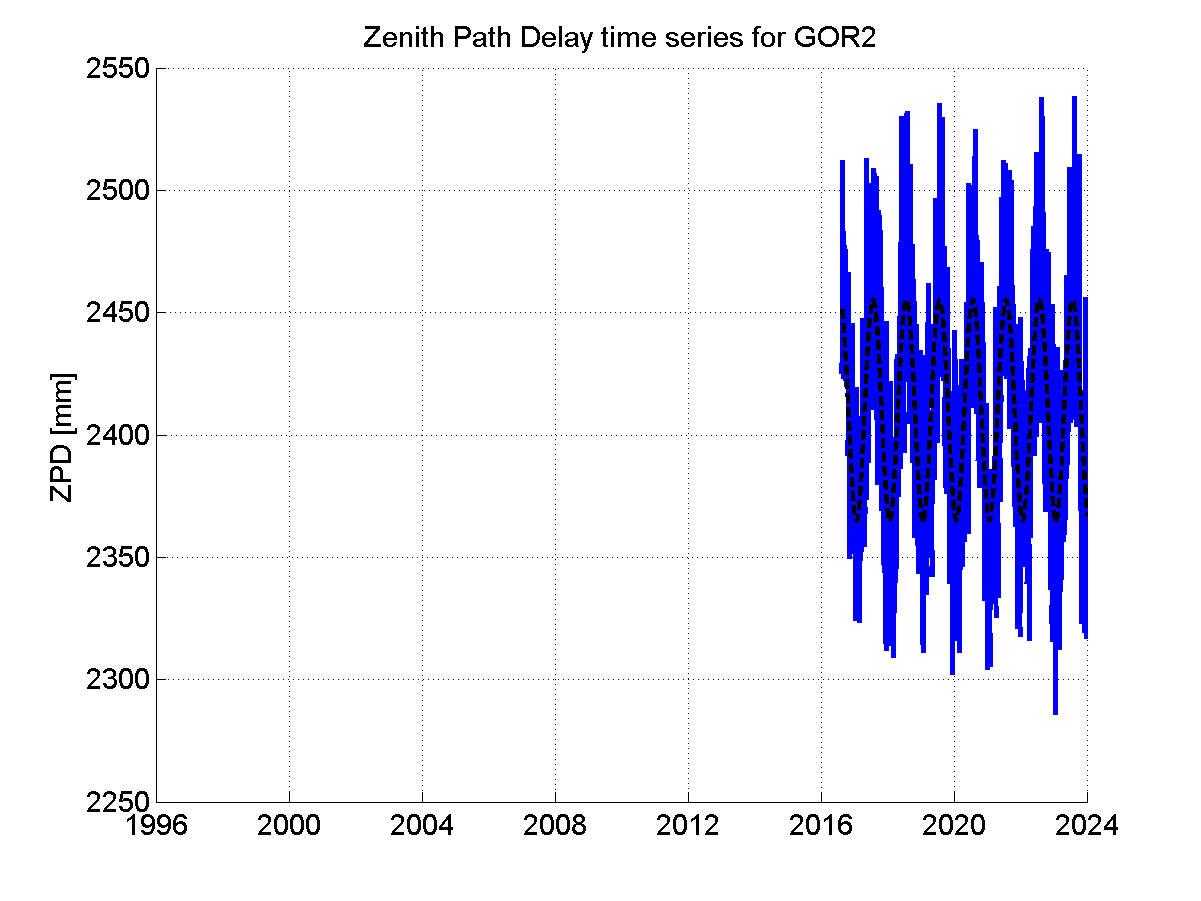

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

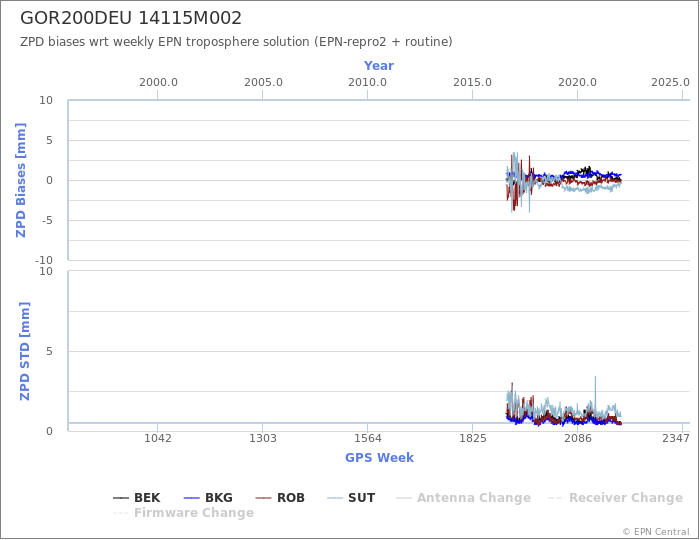

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
