Inverness, United Kingdom Of Great Britain And Northern Ireland (the) (INVR00GBR)

RESPONSIBLE AGENCY OS (Ordnance Survey)
RESPONSIBLE FOR METADATA OS (Ordnance Survey)
CURRENT STATION CONFIGURATION invr00gbr_20230406.log
STATUS IN EPN included since 19-04-2009
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-INVR00GBR
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER SEPT POLARX5 (01-09-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR10/NONE (28-01-2020 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BKG, IGN, NKG, ROB, SUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 18-02-2021.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 049/2021 N/A
BEV 049/2021 N/A
BKGE 049/2021 N/A
RINEX V3.05 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 93.45%
BKGE 326/2024 (H) 100% 43.45%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

INVR00GBR0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 13:36 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0512 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 10:28 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0512 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 11:52 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0512 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station INVR00GBR
Last ETRF2000 position valid from 029/2020 to 316/2022
expressed at epoch 001/2010
X = 3427172.382 m Vx = -0.0002 m/y
Y = -252834.321 m Vy = -0.0002 m/y
Z = 5355255.516 m Vz = 0.0005 m/y

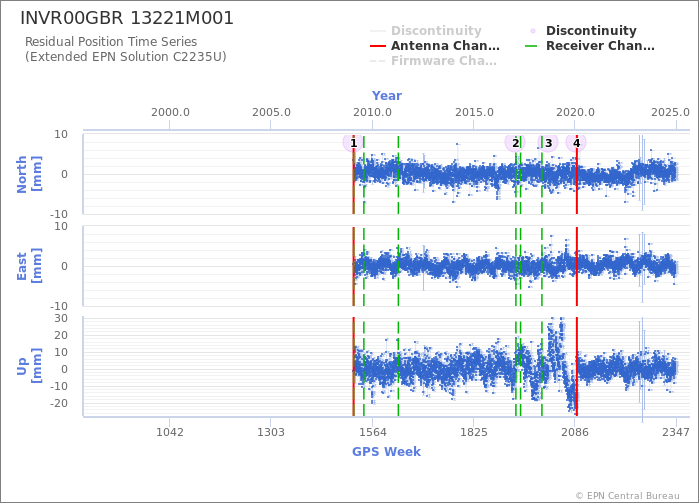

Position time series

Position time series

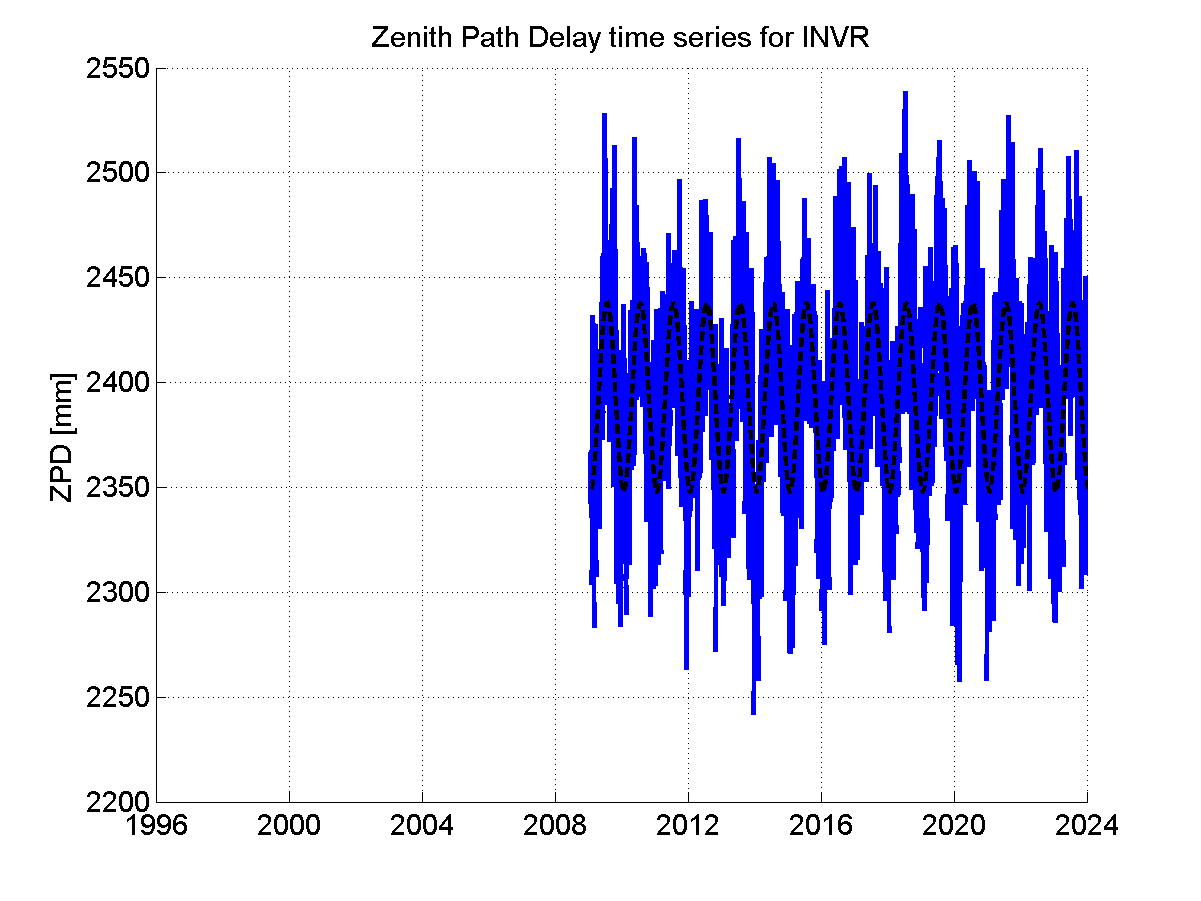

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

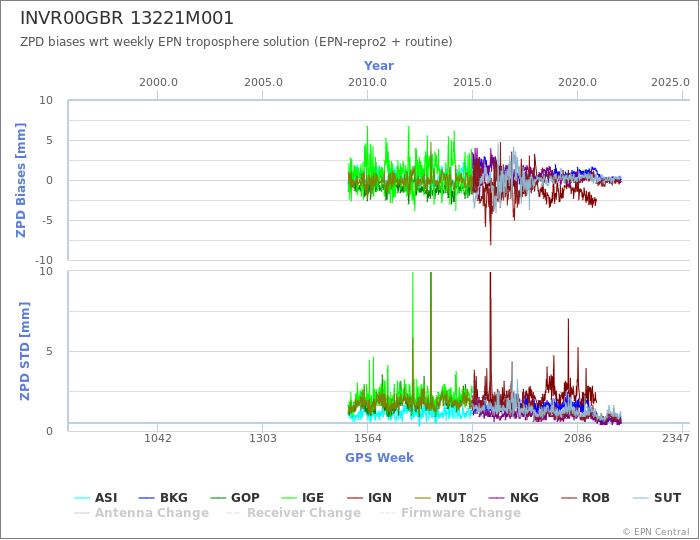

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
