EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	ista00tur_20230511.log
STATUS IN EPN	included since 30-01-2000
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR25 (26-05-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (09-05-2016 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 726339) from 2016-05-09 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2015-08-13) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, E01, E05, E06, E07, E08, C01, C06, C07, J01, J02, J05, J06, S01, S05, date: 2015-10-13)
DATA ROUTINELY ANALYSED BY	BEK, BEV, BKG, RGA, SGO
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 01-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

ISTA00TUR0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 13:42 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 13:42 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS)
2024/11/20 13:42 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/6.713)
2024/11/20 13:42 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0728 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 10:34 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 10:34 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/6.713)
2024/11/20 10:34 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0728 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 11:58 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 11:58 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/6.713)
2024/11/20 11:58 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0728 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

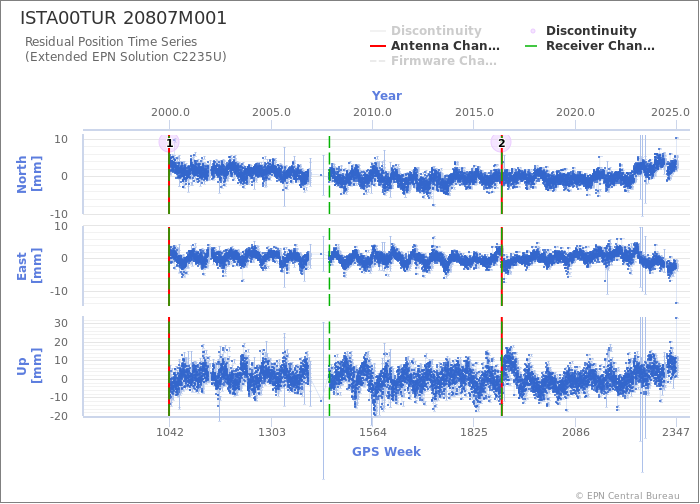

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ISTA00TUR
Last ETRF2000 position valid from 131/2016 to 316/2022 expressed at epoch 001/2010
X = 4208830.674 m	Vx = 0.0017 m/y
Y = 2334850.015 m	Vy = -0.0025 m/y
Z = 4171267.056 m	Vz = -0.0013 m/y
