Guimar, Spain (IZAN00ESP)

RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION izan00esp_20221130.log
STATUS IN EPN included since 18-01-2009
LAST AVAILABLE DATA 23-03-2023
LAST RECEIVER LEICA GR50 (30-11-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAT504GG/LEIS (16-05-2008 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEK, IGE, MUT, RGA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 335/2020 N/A
BEV 003/2020 N/A
BKGE 335/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 081/2023 78.57%
BEV 082/2023 82.14%
BKGE 082/2023 82.14%
Hourly
Data centres Online Last data Availability Latency
BEV 336/2020 (S) N/A 0%
BKGE 336/2020 (S) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 086/2023 (L) 33.93% 26.19%
BKGE 086/2023 (L) 33.93% 26.79%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

IZAN00ESP0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7) : stream temporarily unavailable

    2023/03/26 20:46 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2023/03/26 20:46 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.61.290) wrt site log (4.61/7.811)

    2023/03/26 20:46 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2600 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7) : stream temporarily unavailable

    2023/03/26 18:45 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.61.290) wrt site log (4.61/7.811)

    2023/03/26 18:45 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2600 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7) : stream temporarily unavailable

    2023/03/26 23:44 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.61.290) wrt site log (4.61/7.811)

    2023/03/26 23:44 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2600 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station IZAN00ESP
Last ETRF2000 position valid from 254/2008 to 316/2022
expressed at epoch 001/2010
X = 5390243.532 m Vx = -0.0034 m/y
Y = -1596630.459 m Vy = -0.0045 m/y
Z = 3007752.434 m Vz = -0.0012 m/y

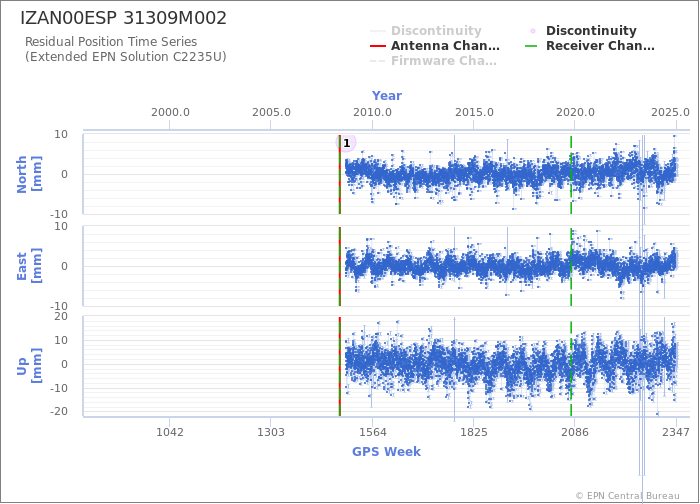

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

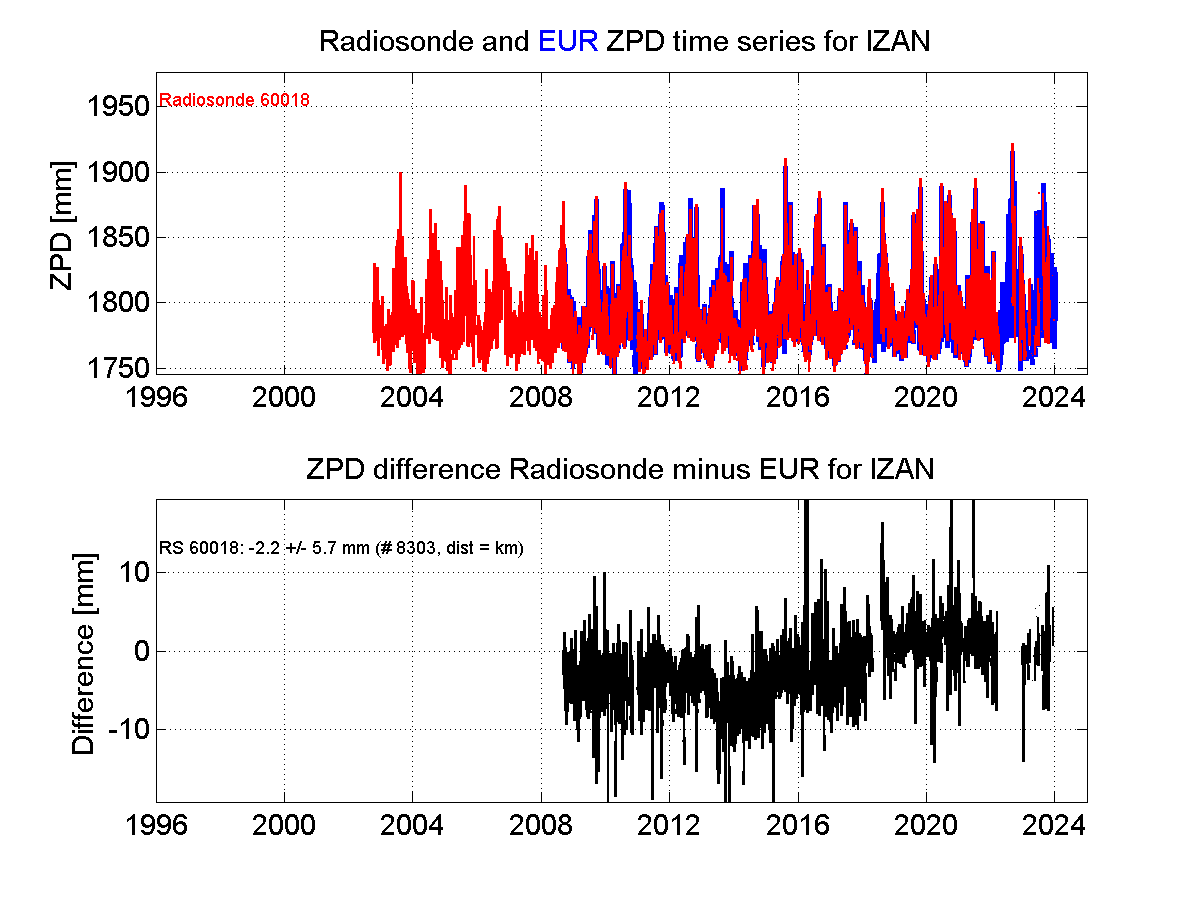

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
