RESPONSIBLE AGENCY WUT (Warsaw University of Technology)
RESPONSIBLE FOR METADATA WUT (Warsaw University of Technology)
CURRENT STATION CONFIGURATION joz200pol_20210730.log
STATUS IN EPN included since 14-09-2003
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-JOZ200POL
LAST AVAILABLE DATA 03-10-2024
LAST RECEIVER TRIMBLE NETR9 (30-07-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA TRM59800.00/NONE (22-03-2019 to now)
INDIVIDUAL CALIBRATION(S)
  • TRM59800.00/NONE (SN: 5516356133) from 2019-03-22 to now :
DATA ROUTINELY ANALYSED BY BEV, MUT, SUT, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 16-03-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 074/2022 N/A
BEV 074/2022 N/A
BKGI 074/2022 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+QZSS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 271/2024 78.57%
BEV 277/2024 100%
BKGI 277/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 278/2024 (N) 100% 100%
BKGI 278/2024 (M) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

JOZ200POL0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM4)

    2024/10/03 20:58 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO)

    2024/10/03 20:58 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.50,29/MAR/2021) wrt site log (5.50)

    2024/10/03 20:58 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.08935 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM4)

    2024/10/03 18:55 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO+GAL+BDS)

    2024/10/03 18:55 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.50,29/MAR/2021) wrt site log (5.50)

    2024/10/03 18:55 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.08935 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM4)

    2024/10/04 04:59 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

    2024/10/04 04:59 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+QZSS)

    2024/10/04 04:59 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.50,29/MAR/2021) wrt site log (5.50)

    2024/10/04 04:59 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.08935 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Location

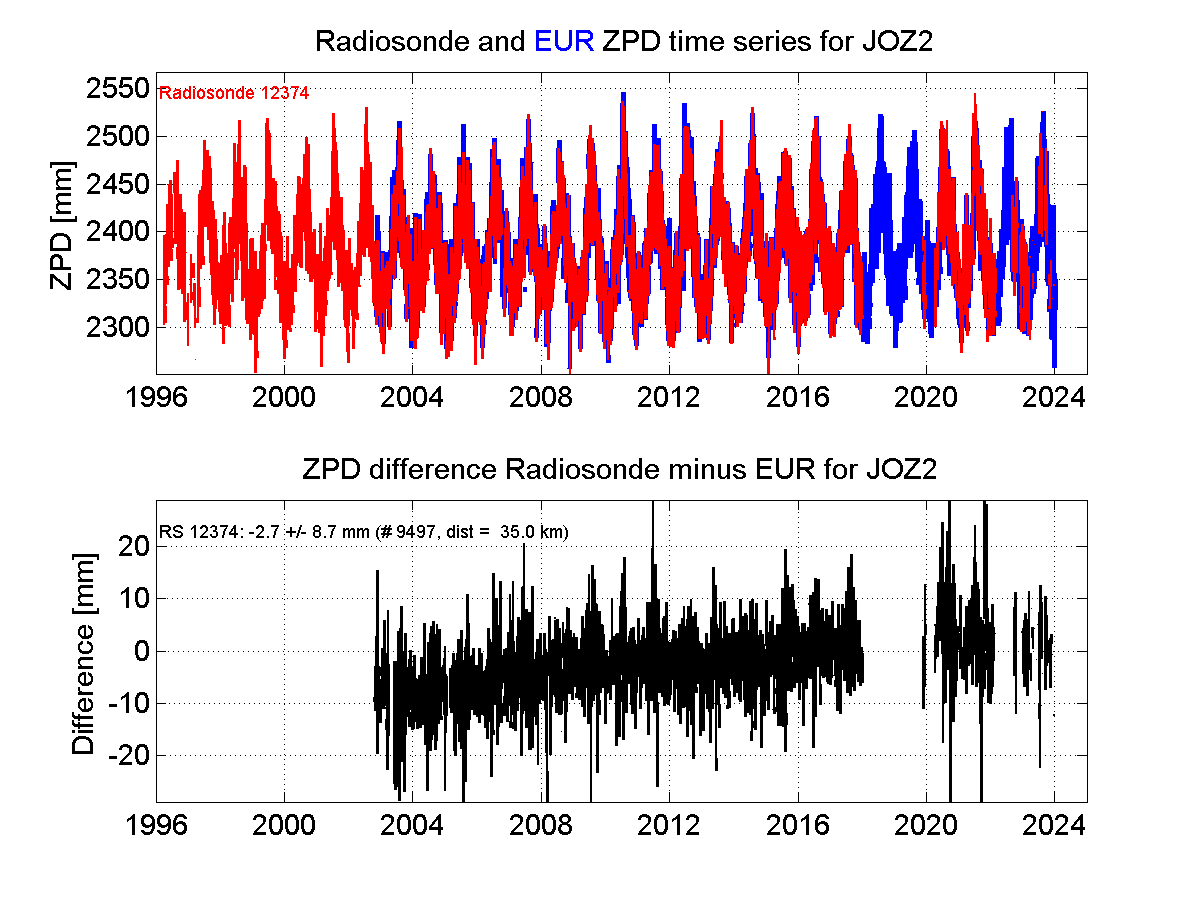

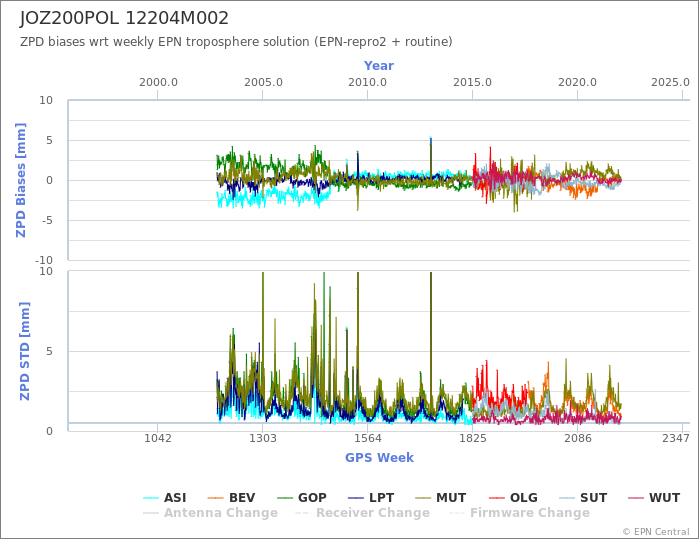

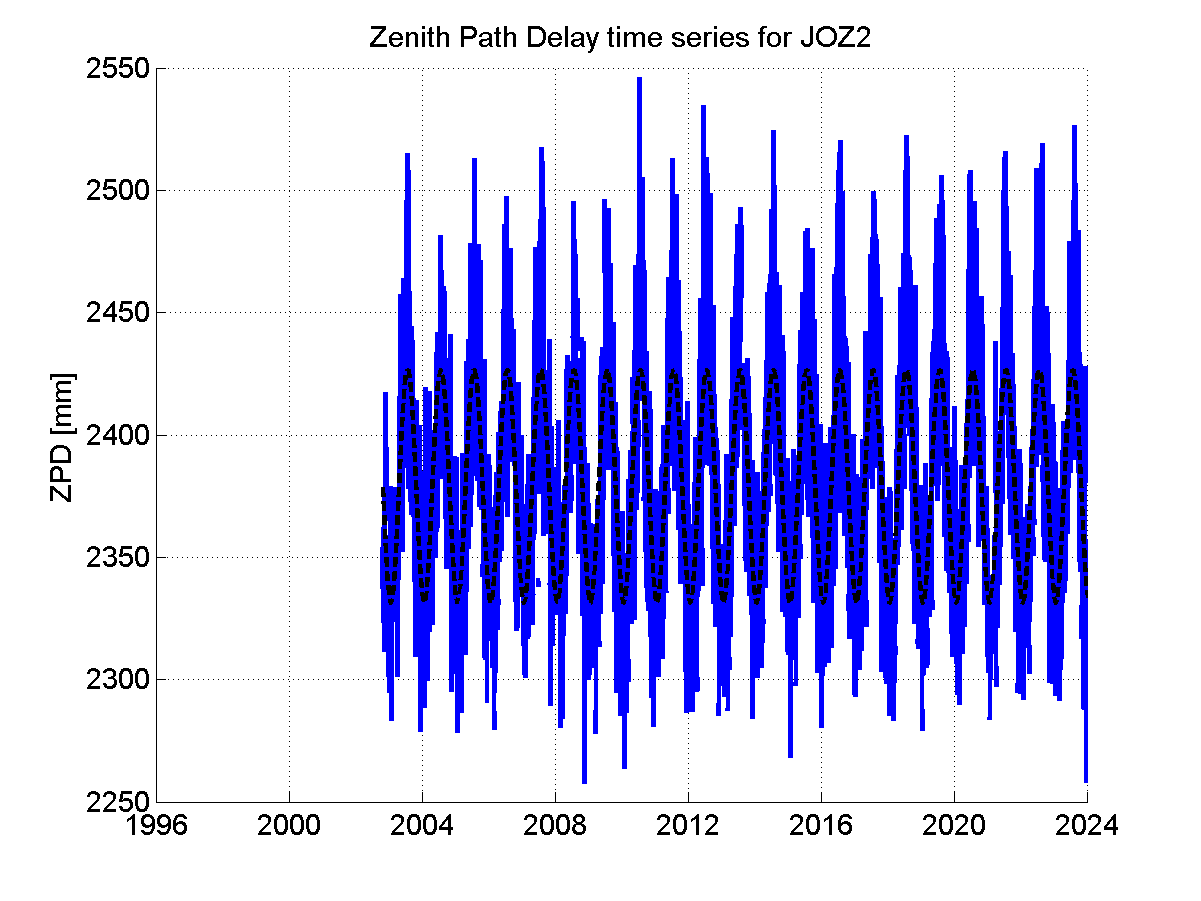

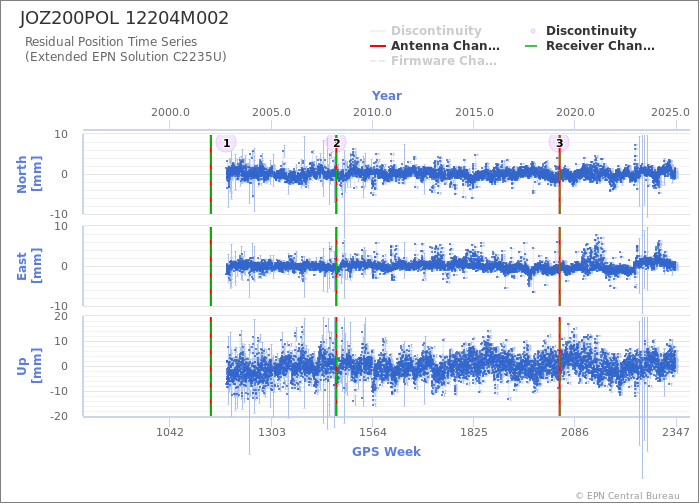

Pictures
