EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GUGiK (Head Office of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	ASGEUPOS (ASG-EUPOS Management Center Head Office of Geodesy and Cartography)
CURRENT STATION CONFIGURATION	kato00pol_20240123.log
STATUS IN EPN	included since 10-08-2003
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-KATO00POL
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE ALLOY (23-01-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM59900.00/SCIS (18-02-2017 to now)
INDIVIDUAL CALIBRATION(S)	TRM41249.00/TZGD (SN: 60187554) from 2008-04-08 to 2010-12-17 : BERL - ROBOT (freq: G01, G02, date: 2007-09-14) TRM57971.00/TZGD (SN: 1440929151) from 2010-12-17 to 2017-02-18 : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2010-02-17) TRM59900.00/SCIS (SN: 5550362330) from 2017-02-18 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2016-09-01)
DATA ROUTINELY ANALYSED BY	BEV, MUT, RGA, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 13-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

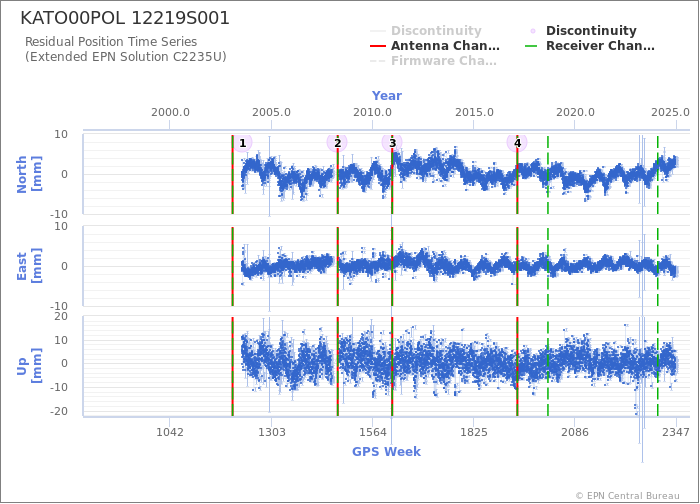

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KATO00POL
Last ETRF2000 position valid from 050/2017 to 316/2022 expressed at epoch 001/2010
X = 3862992.373 m	Vx = 0.0012 m/y
Y = 1332822.663 m	Vy = 0.0006 m/y
Z = 4881105.438 m	Vz = -0.0034 m/y
