EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
RESPONSIBLE FOR METADATA	LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
CURRENT STATION CONFIGURATION	kir800swe_20221207.log
STATUS IN EPN	included since 31-01-2016
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE ALLOY (07-12-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA	LEIAR25.R3/LEIT (12-08-2011 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 09030016) from 2011-08-12 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-02-19)
DATA ROUTINELY ANALYSED BY	BEV, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

KIR800SWE0 :

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)
2024/11/20 11:03 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/11/20 11:03 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.15,22/JUL/2022) wrt site log (6.15)
2024/11/20 11:03 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.0030 m)
2024/11/20 11:03 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1554 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)
2024/11/20 12:27 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/11/20 12:27 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.15,22/JUL/2022) wrt site log (6.15)
2024/11/20 12:27 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.0030 m)
2024/11/20 12:27 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1554 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

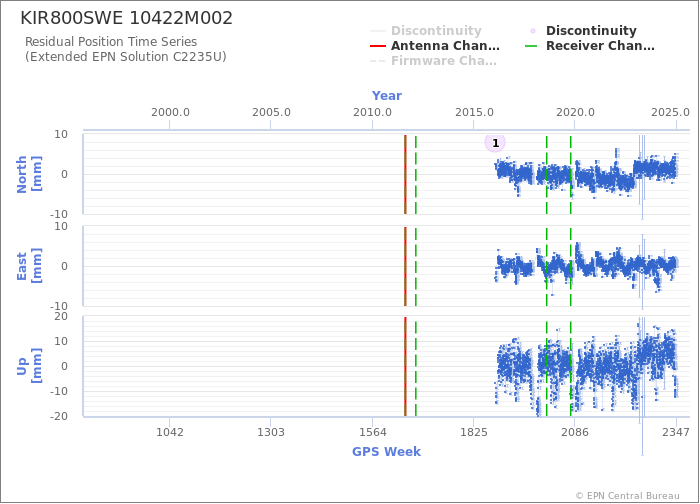

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KIR800SWE
Last ETRF2000 position valid from 031/2016 to 316/2022 expressed at epoch 001/2010
X = 2248127.400 m	Vx = 0.0017 m/y
Y = 865685.494 m	Vy = 0.0002 m/y
Z = 5886424.378 m	Vz = 0.0055 m/y
