EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	RGZ (Republic Geodetic Authority)
RESPONSIBLE FOR METADATA	RGZ (Republic Geodetic Authority)
CURRENT STATION CONFIGURATION	knja00srb_20230207.log
STATUS IN EPN	included since 27-09-2015
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (05-04-2019 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM41249.00/TZGD (19-07-2011 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEV, GFZ, RGA, SGO, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 26-05-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

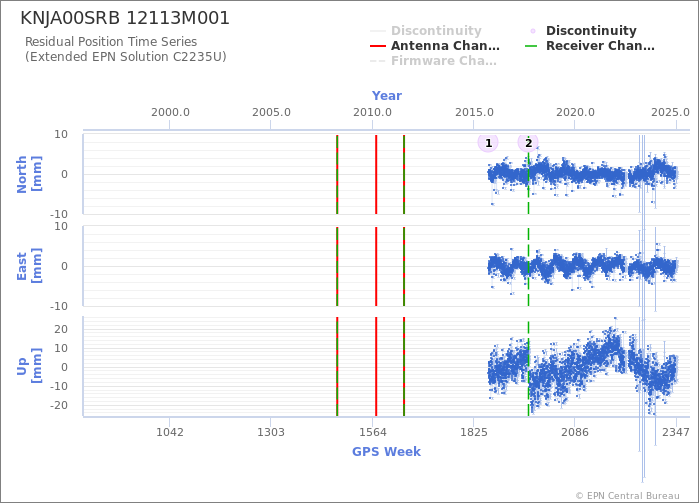

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KNJA00SRB
Last ETRF2000 position valid from 275/2017 to 316/2022 expressed at epoch 001/2010
X = 4284174.952 m	Vx = 0.0008 m/y
Y = 1753166.290 m	Vy = 0.0004 m/y
Z = 4373521.740 m	Vz = -0.0017 m/y
