EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IMVP (Institute of Metrology for Time and Space)
RESPONSIBLE FOR METADATA	IMVP (Institute of Metrology for Time and Space)
CURRENT STATION CONFIGURATION	mdvj00rus_20190409.log
STATUS IN EPN	included since 04-03-2007
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TPS NETG3 (04-04-2019 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	JPSREGANT_DD_E1/NONE (18-07-2001 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, BKG, GFZ, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station MDVJ00RUS
Last ETRF2000 position valid from 161/2002 to 316/2022 expressed at epoch 001/2010
X = 2845456.467 m	Vx = -0.0001 m/y
Y = 2160954.084 m	Vy = -0.0003 m/y
Z = 5265993.062 m	Vz = -0.0005 m/y

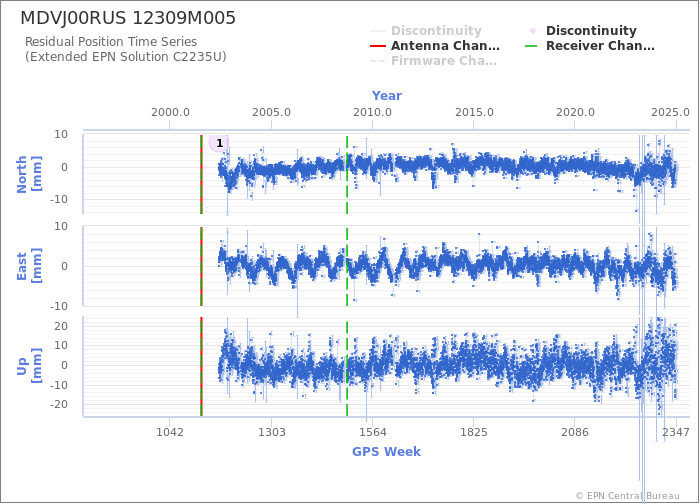

Position time series

Tropospheric Delays

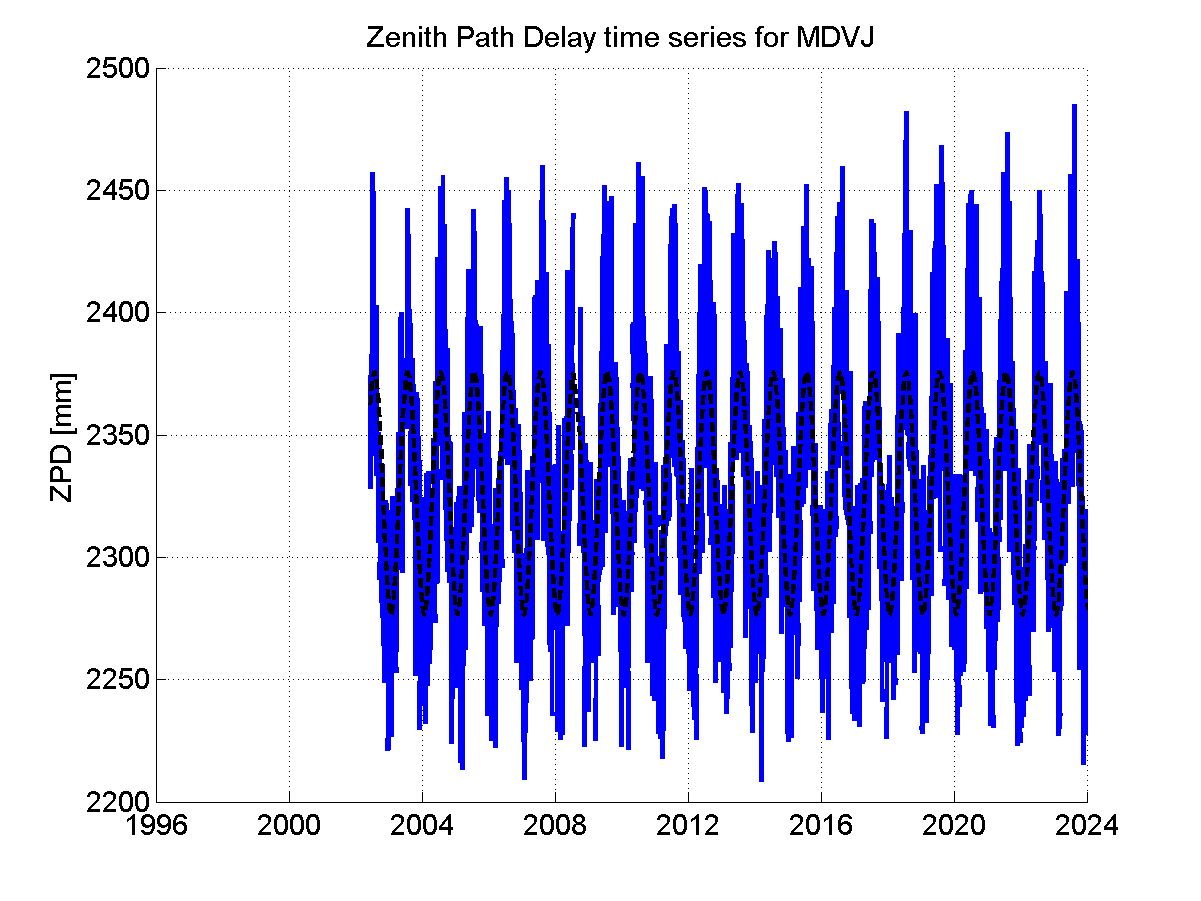

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

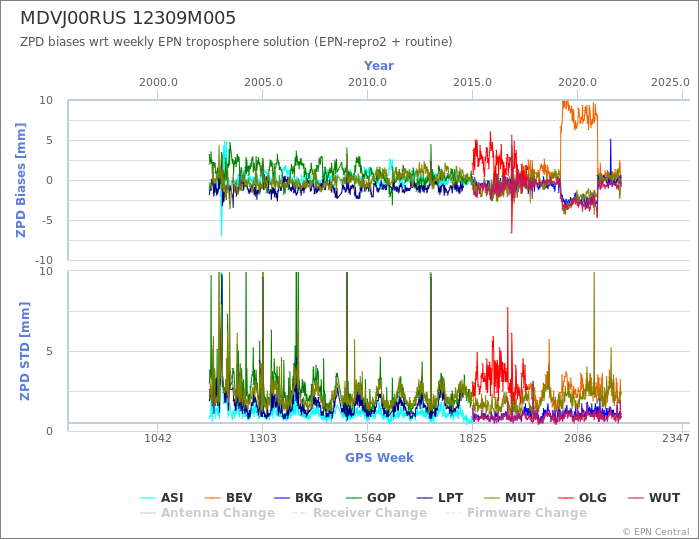

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

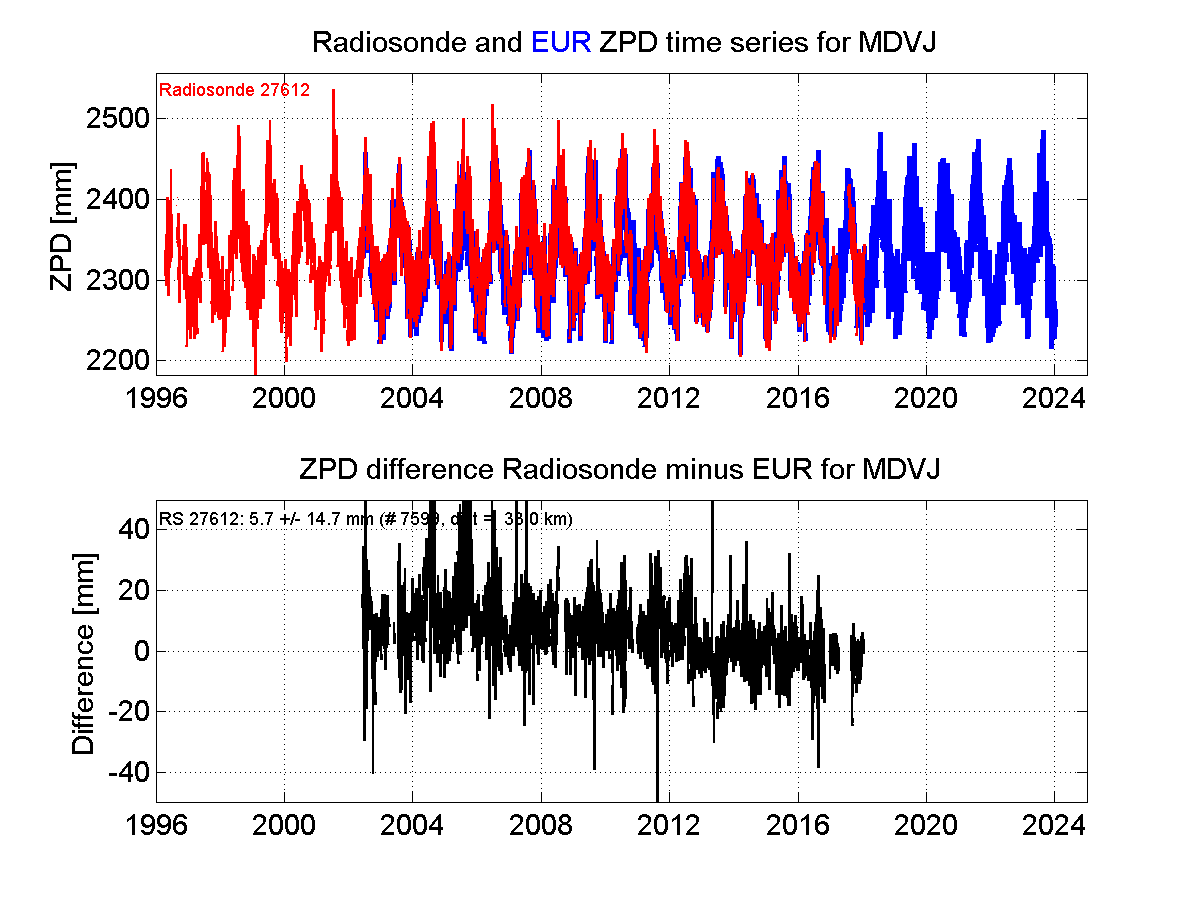

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Mendeleevo, Russian Federation (the) (MDVJ00RUS)
