Oberpfaffenhofen, Germany (OBE400DEU)

RESPONSIBLE FOR METADATA GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE AGENCY GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION obe400deu_20211125.log
STATUS IN EPN included since 08-03-2015
LAST AVAILABLE DATA 30-03-2023
LAST RECEIVER SEPT ASTERX4 (17-11-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA SEPCHOKE_B3E6/NONE (30-04-2021 to now)
INDIVIDUAL CALIBRATION(S)
  • JAV_RINGANT_G3T/NONE (SN: 340) from 2012-09-28 to 2021-04-30 :
  • SEPCHOKE_B3E6/NONE (SN: 5612) from 2021-04-30 to now :
DATA ROUTINELY ANALYSED BY BEK, BKG, GFZ, LPT, ROB
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 09-01-2020.

RINEX V2.11 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 008/2020 N/A
BEV 003/2020 N/A
BKGI 008/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+IRNSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 083/2023 78.57%
BEV 089/2023 100%
BKGI 089/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 009/2020 (A) N/A 0%
BKGI 009/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 090/2023 (J) 100% 99.4%
BKGI 090/2023 (J) 100% 80.36%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

OBE400DEU0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/03/30 23:05 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/03/30 23:05 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS+GLO+GAL)

    2023/03/30 23:05 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6260 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/03/30 21:08 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/03/30 21:08 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6260 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/03/31 02:06 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/03/31 02:06 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/03/31 02:06 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6260 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station OBE400DEU
Last ETRF2000 position valid from 121/2021 to 316/2022
expressed at epoch 001/2010
X = 4186704.803 m Vx = -0.0008 m/y
Y = 834903.206 m Vy = 0.0000 m/y
Z = 4723664.521 m Vz = -0.0006 m/y
Position time series

Position time series

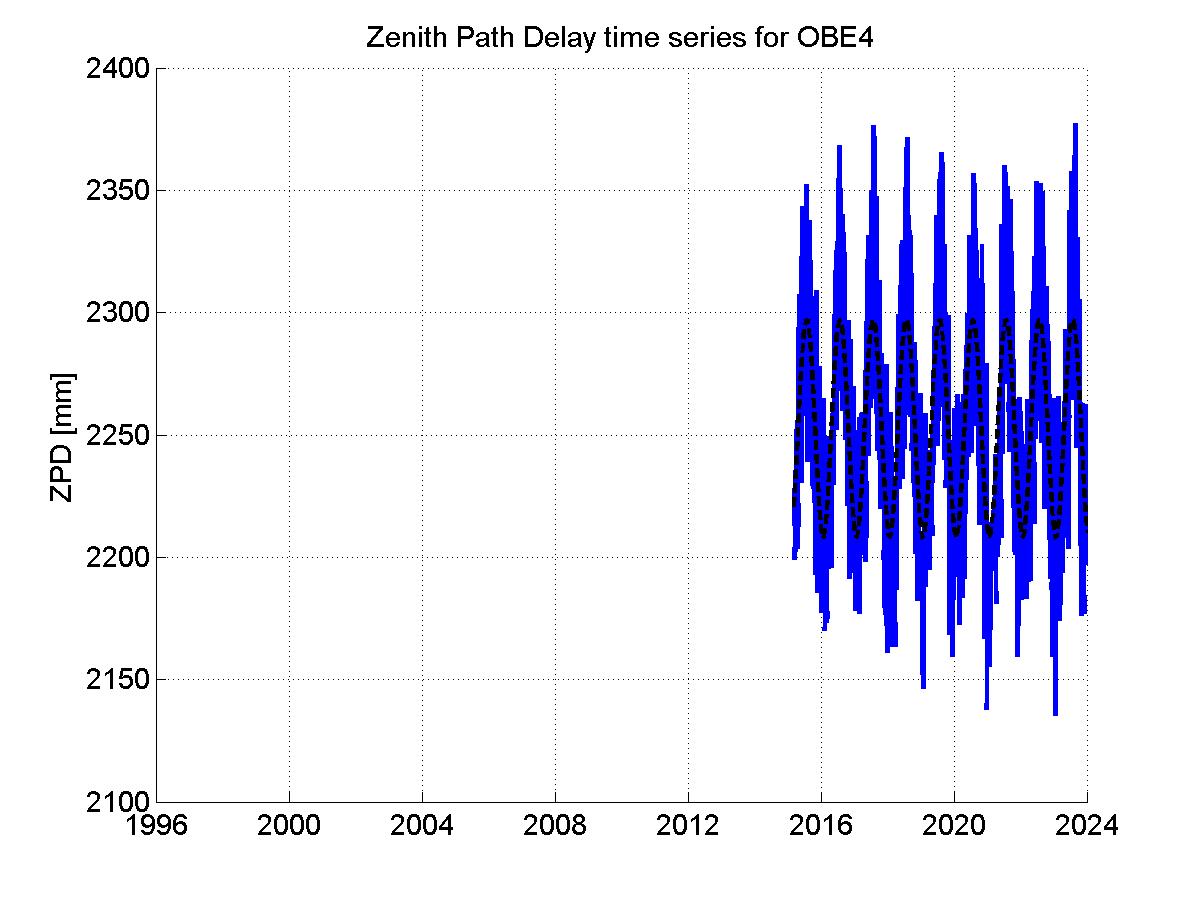

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

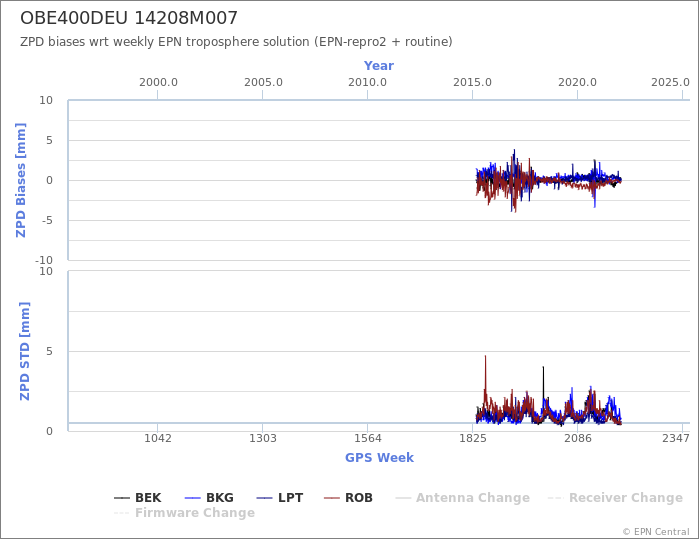

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
