Orivesi, Finland (ORIV00FIN)

RESPONSIBLE FOR METADATA FGI (National Land Survey of Finland)
RESPONSIBLE AGENCY FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION oriv00fin_20221103.log
STATUS IN EPN included since 28-10-2018
LAST AVAILABLE DATA 08-06-2023
LAST RECEIVER JAVAD TRE_3 DELTA (03-11-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA JAVRINGANT_DM/SCIS (07-11-2018 to now)
INDIVIDUAL CALIBRATION(S)
  • JAVRINGANT_DM/SCIS (SN: 00740) from 2013-09-05 to 2018-11-07, from 2018-11-07 to now :
DATA ROUTINELY ANALYSED BY BEV, GFZ, NKG, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 231/2020 N/A
BEV 003/2020 N/A
BKGE 231/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 153/2023 78.57%
BEV 159/2023 100%
BKGE 159/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 232/2020 (A) N/A 0%
BKGE 232/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 160/2023 (X) 100% 99.4%
BKGE 160/2023 (X) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

ORIV00FIN0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/06/09 23:00 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)

    2023/06/09 23:00 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SIZCN09S5PV70T4F2MW) wrt site log (02872)

    2023/06/09 23:00 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1570 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/06/09 21:05 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SIZCN09S5PV70T4F2MW) wrt site log (02872)

    2023/06/09 21:05 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1570 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/06/09 01:59 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SIZCN09S5PV70T4F2MW) wrt site log (02872)

    2023/06/09 01:59 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1570 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ORIV00FIN
Last ETRF2000 position valid from 301/2018 to 316/2022
expressed at epoch 001/2010
X = 2772556.618 m Vx = 0.0028 m/y
Y = 1246719.282 m Vy = 0.0018 m/y
Z = 5588449.298 m Vz = 0.0040 m/y

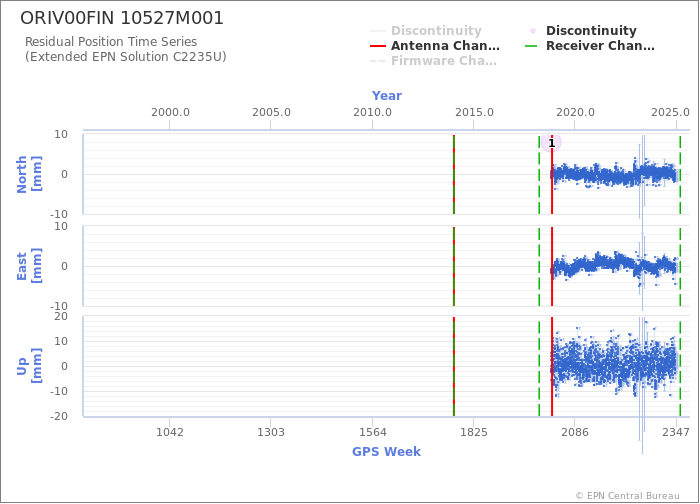

Position time series

Position time series

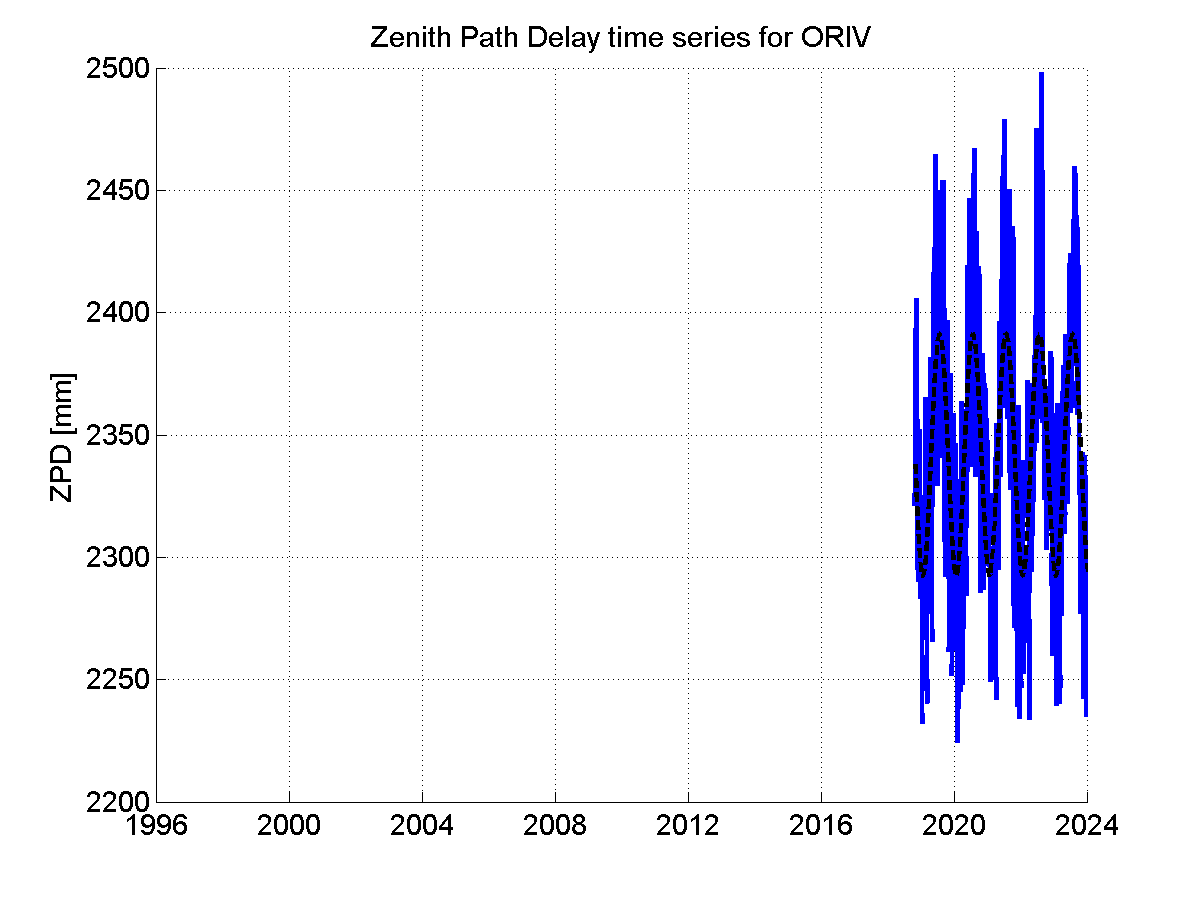

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

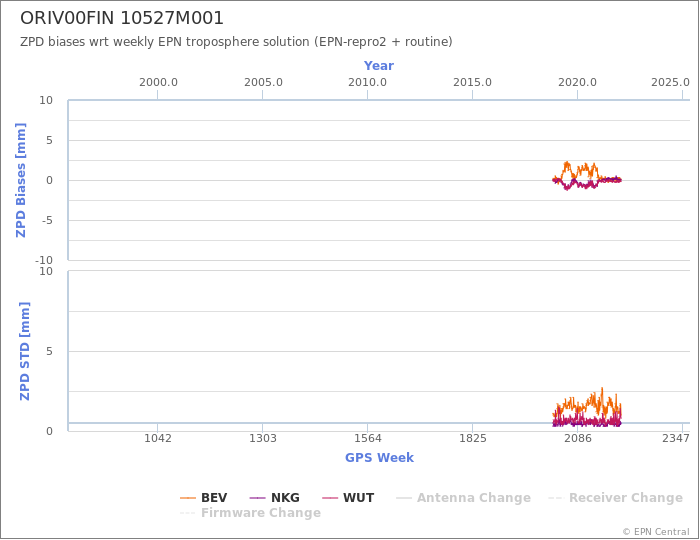

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

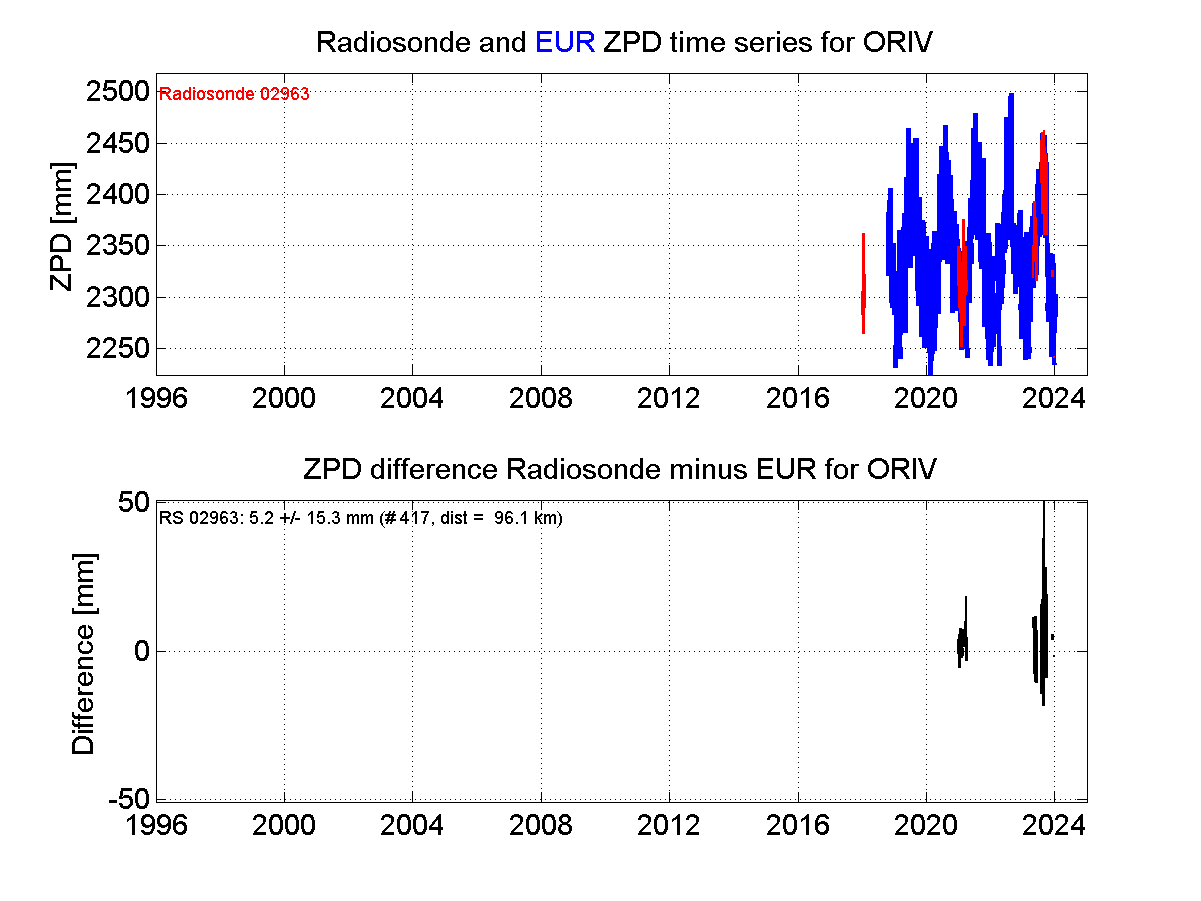

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
