Pinsk, Belarus (PINS00BLR)

RESPONSIBLE AGENCY BYGEO (State Enterprise Belgeodesy)
RESPONSIBLE FOR METADATA BYGEO (State Enterprise Belgeodesy)
CURRENT STATION CONFIGURATION pins00blr_20240808.log
STATUS IN EPN included since 08-11-2020
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER LEICA GR30 (10-03-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR10/NONE (20-04-2011 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, BKG, SGO, WUT

The RINEX 2 data are no more submitted to the EPN data centres since 05-03-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 062/2022 N/A
BEV 062/2022 N/A
BKGE 062/2022 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly

No recent data available

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station PINS00BLR
Last ETRF2000 position valid from 313/2020 to 316/2022
expressed at epoch 336/2021
X = 3525285.570 m
Y = 1726511.316 m
Z = 5010514.855 m
Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

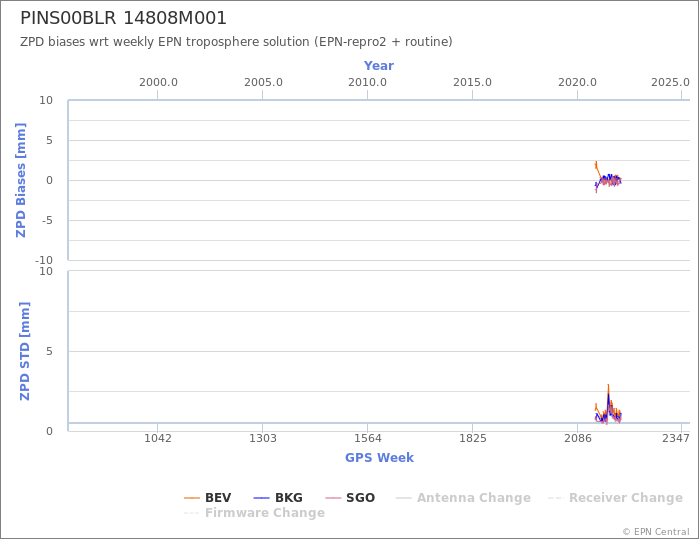

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
