Polish Polar Station, Hornsund, Norway (PPSH00NOR)

RESPONSIBLE FOR METADATA WUT (Warsaw University of Technology)
RESPONSIBLE AGENCY WUT (Warsaw University of Technology)
CURRENT STATION CONFIGURATION ppsh00nor_20230830.log
STATUS IN EPN included since 27-02-2022
LAST AVAILABLE DATA 21-09-2023
LAST RECEIVER LEICA GR25 (27-08-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR20/LEIM (04-09-2020 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR20/LEIM (SN: 18327015) from 2020-09-04 to now :
DATA ROUTINELY ANALYSED BY BEV, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 29-06-2021.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 262/2023 78.57%
BEV 264/2023 85.71%
BKGE 264/2023 85.71%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 265/2023 (K) 44.05% 32.74%
BKGE 265/2023 (K) 44.05% 32.74%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station PPSH00NOR
Last ETRF2000 position valid from 058/2022 to 316/2022
expressed at epoch 174/2022
X = 1386495.218 m
Y = 385508.626 m
Z = 6192886.376 m
Position time series

Position time series

Location

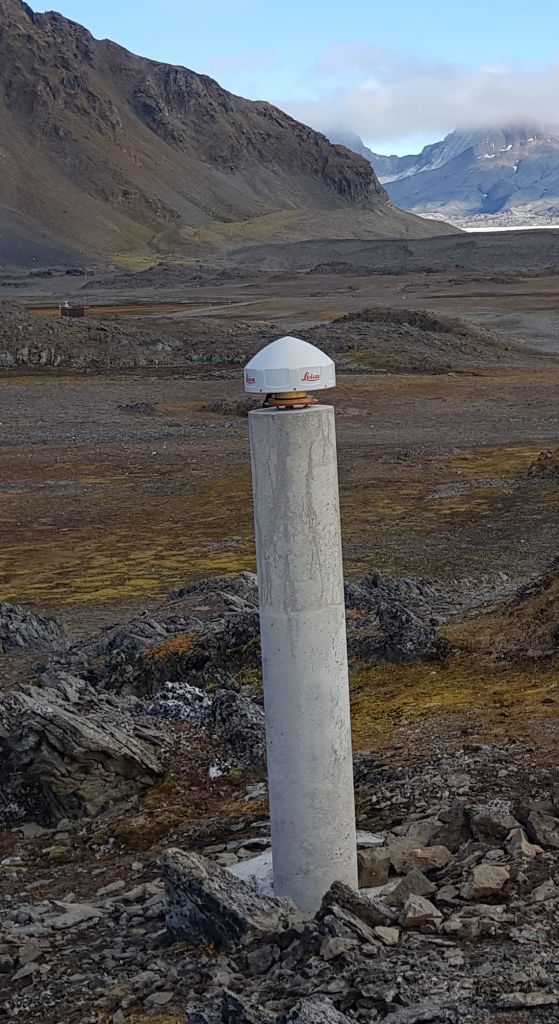

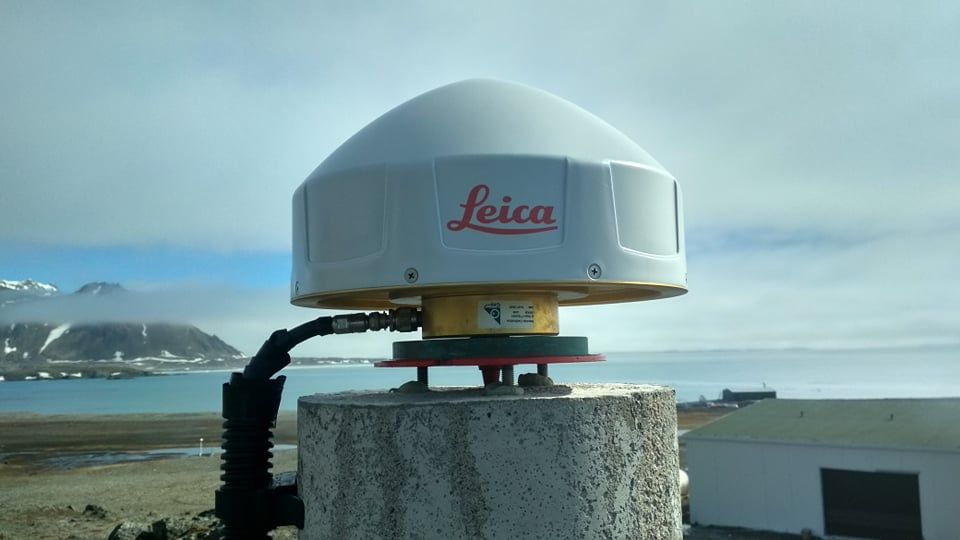

Pictures
