EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE FOR METADATA	UNAVCO (University NAVSTAR Consortium)
RESPONSIBLE AGENCY	UNAVCO (University NAVSTAR Consortium)
CURRENT STATION CONFIGURATION	rabt00mar_20211021.log
STATUS IN EPN	included since 25-02-2001
LAST AVAILABLE DATA	29-05-2023
LAST RECEIVER	JAVAD TRE_3 DELTA (21-10-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS
LAST ANTENNA	TRM29659.00/SCIS (17-05-2000 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, BKG, IGE, MUT
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 24-03-2022.

Data centres	Online	Last data	Availability	Latency
BKGI		064/2021 (N)	N/A	0%

Data centres	Online	Last data	Availability	Latency
BKGI		150/2023 (E)	86.31%	0%

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station RABT00MAR
Last ETRF2000 position valid from 139/2000 to 316/2022 expressed at epoch 001/2010
X = 5255617.829 m	Vx = -0.0022 m/y
Y = -631746.005 m	Vy = -0.0040 m/y
Z = 3546322.290 m	Vz = 0.0002 m/y

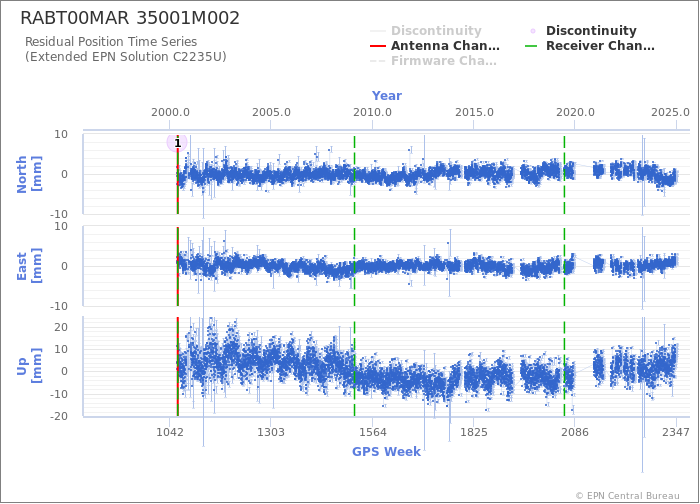

Position time series

Tropospheric Delays

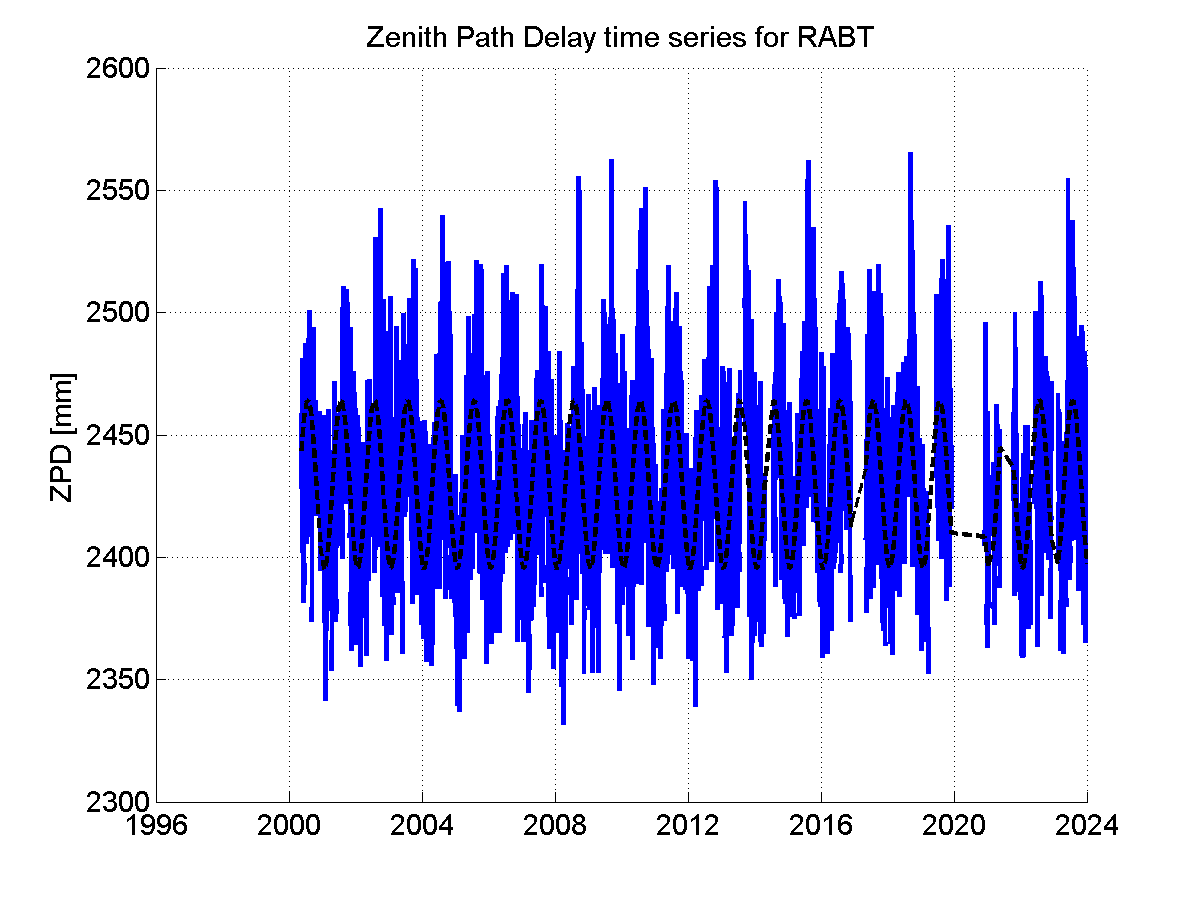

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Rabat, Morocco (RABT00MAR)
