EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	reyk00isl_20231010.log
STATUS IN EPN	included since 31-12-1995
LAST AVAILABLE DATA	06-12-2023
LAST RECEIVER	LEICA GR50 (20-09-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (14-05-2019 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725281) from 2013-05-02 to 2016-12-27, from 2017-01-05 to 2019-05-14, from 2019-05-14 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E06, E07, E08, date: 2012-03-01) TPSCR.G3/TPSH (SN: 3830142) from 2008-03-13 to 2013-05-02 : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2007-11-08)
DATA ROUTINELY ANALYSED BY	BEV, BKG, COD, NKG, SUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 21-10-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

REYK00ISL0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2023/12/07 00:09 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2023/12/07 00:09 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2023/12/07 00:09 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)
2023/12/07 00:09 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0872 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2023/12/06 22:31 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2023/12/06 22:31 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)
2023/12/06 22:31 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0872 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2023/12/07 03:28 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2023/12/07 03:28 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)
2023/12/07 03:28 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0872 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

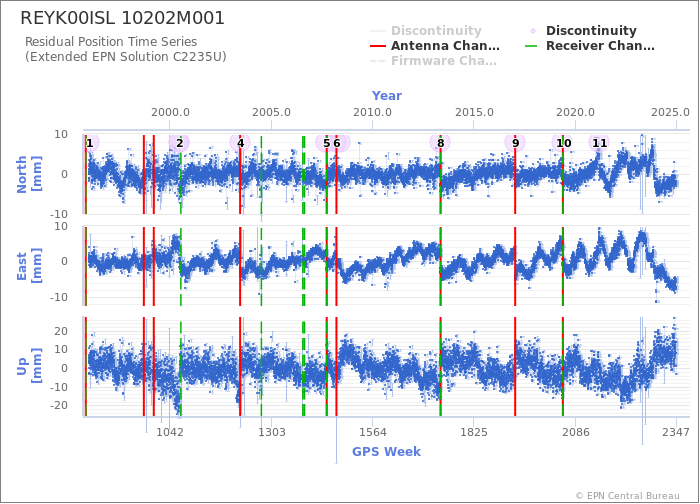

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station REYK00ISL
Last ETRF2000 position valid from 056/2021 to 316/2022 expressed at epoch 001/2010
X = 2587384.454 m	Vx = -0.0097 m/y
Y = -1043033.737 m	Vy = -0.0136 m/y
Z = 5716563.859 m	Vz = 0.0008 m/y
