Riga, Latvia (RIGA00LVA)

RESPONSIBLE AGENCY LUAI (Institute of Astronomy University of Latvia)
RESPONSIBLE FOR METADATA LUAI (Institute of Astronomy University of Latvia)
CURRENT STATION CONFIGURATION riga00lva_20240507.log
STATUS IN EPN included since 03-11-1996
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 05-11-2024
LAST RECEIVER LEICA GR25 (04-04-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR25.R4/LEIT (11-12-2013 to now)
INDIVIDUAL CALIBRATION(S)
  • AOAD/M_T/NONE (SN: 519) from 1995-12-05 to 1996-03-28 :
  • LEIAR25.R4/LEIT (SN: 726676) from 2013-12-11 to now :
DATA ROUTINELY ANALYSED BY BEV, NKG, SUT, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 07-03-2023.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 066/2023 N/A
BEV 066/2023 N/A
BKGI 066/2023 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 310/2024 46.43%
BEV 310/2024 46.43%
BKGI 310/2024 46.43%
Hourly
Data centres Online Last data Availability Latency
BEV 066/2023 (A) N/A 0%
BKGI 066/2023 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGI 326/2024 (H) 100% 68.45%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

RIGA00LVA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 16:47 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 16:47 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/6.525)

    2024/11/20 16:47 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2433 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 14:01 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 14:01 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/6.525)

    2024/11/20 14:01 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2433 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 15:27 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 15:27 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/6.525)

    2024/11/20 15:27 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2433 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station RIGA00LVA
Last ETRF2000 position valid from 354/2014 to 316/2022
expressed at epoch 001/2010
X = 3183899.544 m Vx = 0.0006 m/y
Y = 1421478.316 m Vy = 0.0001 m/y
Z = 5322810.623 m Vz = 0.0001 m/y

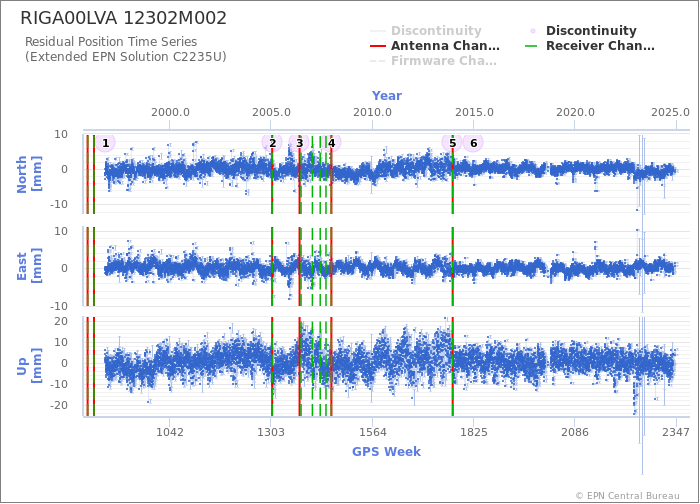

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

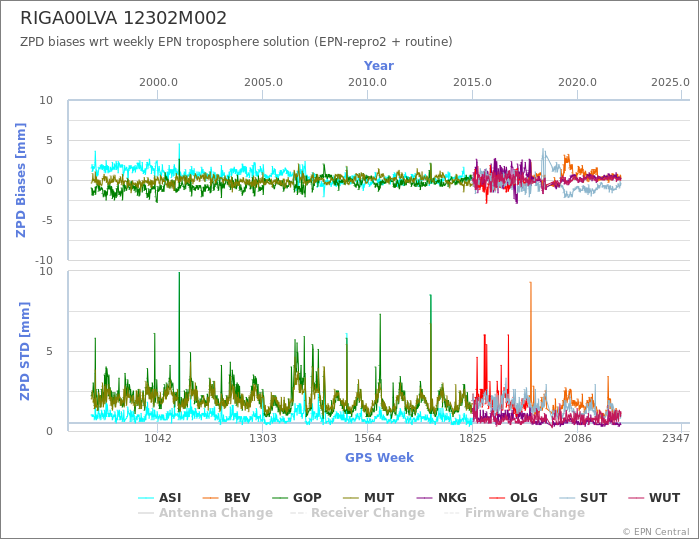

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
