EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	NULP (National University "Lviv Polytechnic")
RESPONSIBLE FOR METADATA	NULP (National University "Lviv Polytechnic")
CURRENT STATION CONFIGURATION	ter200ukr_20230413.log
STATUS IN EPN	included since 09-01-2022
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	10-10-2024
LAST RECEIVER	TRIMBLE NETR9 (23-07-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA	TRM55971.00/NONE (23-07-2021 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, BKG, GFZ, UPA

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 20-09-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station TER200UKR
Last ETRF2000 position valid from 009/2022 to 316/2022 expressed at epoch 149/2022
X = 3737870.328 m
Y = 1791703.815 m
Z = 4831815.663 m

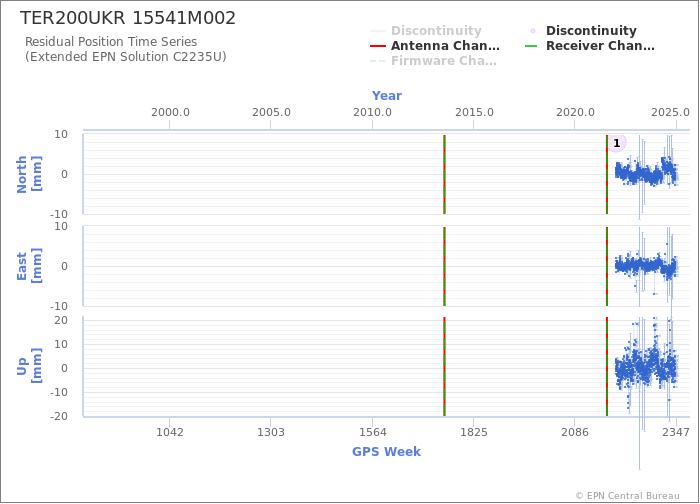

Position time series

Tropospheric Delays

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Ternopil, Ukraine (TER200UKR)
