Toulouse, France (TLSE00FRA)

RESPONSIBLE AGENCY CNES (Centre National d'Etudes Spatiales)
RESPONSIBLE FOR METADATA CNES (Centre National d'Etudes Spatiales)
CURRENT STATION CONFIGURATION tlse00fra_20231129.log
STATUS IN EPN included since 18-03-2001
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER TRIMBLE ALLOY (29-11-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA TRM59800.00/NONE (21-03-2016 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEK, IGN, MUT, ROB
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 14-12-2020.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 349/2020 N/A
BEV 316/2020 N/A
BKGI 349/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+IRNSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGI 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGI 326/2024 (H) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

TLSE00FRA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 18:16 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 18:16 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.21,27/JUN/2023) wrt site log (6.21)

    2024/11/20 18:16 RTCM 3.2/1006: Incorrect Antenna Height in stream (1.0529 m) wrt site log (1.0530 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 15:32 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 15:32 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.21,27/JUN/2023) wrt site log (6.21)

    2024/11/20 15:32 RTCM 3.2/1006: Incorrect Antenna Height in stream (1.0529 m) wrt site log (1.0530 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 16:59 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 16:59 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.21,27/JUN/2023) wrt site log (6.21)

    2024/11/20 16:59 RTCM 3.2/1006: Incorrect Antenna Height in stream (1.0529 m) wrt site log (1.0530 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station TLSE00FRA
Last ETRF2000 position valid from 087/2016 to 316/2022
expressed at epoch 001/2010
X = 4627852.058 m Vx = -0.0006 m/y
Y = 119639.758 m Vy = -0.0003 m/y
Z = 4372993.310 m Vz = -0.0006 m/y

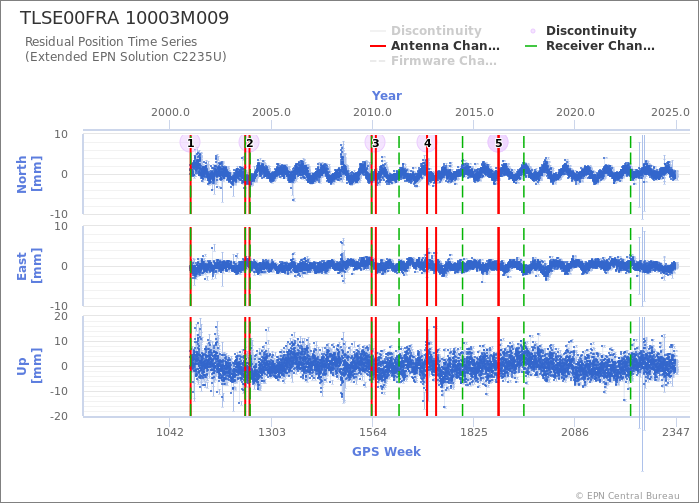

Position time series

Position time series

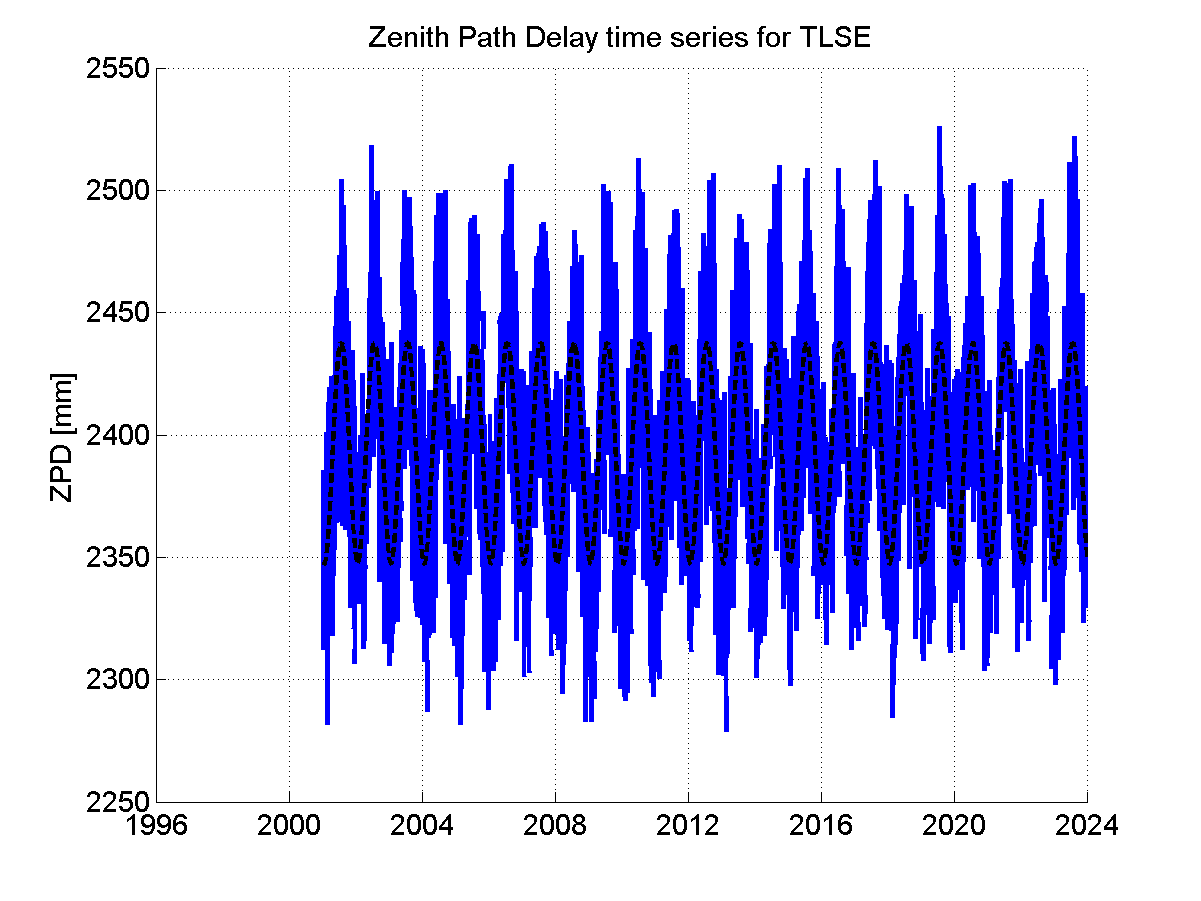

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
