Trento, Italy (TREU00ITA)

RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION treu00ita_20220913.log
STATUS IN EPN included since 02-10-2022
LAST AVAILABLE DATA 30-09-2023
LAST RECEIVER LEICA GR30 (29-06-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA LEIAR20/NONE (29-06-2021 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, UPA, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 21-06-2022.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.03 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 267/2023 78.57%
BEV 273/2023 100%
BKGE 273/2023 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 274/2023 (S) 100% 100%
BKGE 274/2023 (S) 100% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

TREU00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/10/01 02:37 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/10/01 02:37 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)

    2023/10/01 02:37 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.20.232) wrt site log (4.20/7.300)

    2023/10/01 02:37 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.9738 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/10/01 00:53 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/10/01 00:53 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.20.232) wrt site log (4.20/7.300)

    2023/10/01 00:53 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.9738 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/10/01 05:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2023/10/01 05:51 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.20.232) wrt site log (4.20/7.300)

    2023/10/01 05:51 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.9738 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station TREU00ITA
Last ETRF2000 position valid from 275/2022 to 316/2022
expressed at epoch 296/2022
X = 4349599.533 m
Y = 856876.378 m
Z = 4570728.153 m

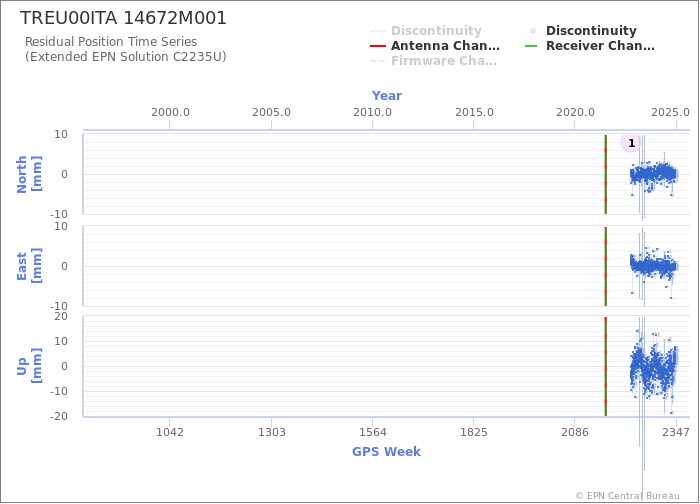

Position time series

Position time series

Location

Pictures
