Virolahti, Finland (VIR200FIN)

RESPONSIBLE AGENCY FGI (National Land Survey of Finland)
RESPONSIBLE FOR METADATA FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION vir200fin_20240418.log
STATUS IN EPN included since 19-03-2017
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER JAVAD TRE_3 DELTA (18-04-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA JAVRINGANT_DM/SCIS (15-10-2012 to now)
INDIVIDUAL CALIBRATION(S)
  • JAVRINGANT_DM/SCIS (SN: 00748) from 2012-10-15 to now :
DATA ROUTINELY ANALYSED BY BEV, NKG, ROB, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 231/2020 N/A
BEV 023/2020 N/A
BKGE 231/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 324/2024 96.43%
BKGE 325/2024 96.43%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGE 326/2024 (H) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

VIR200FIN0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/11/20 19:40 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)

    2024/11/20 19:40 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SQDNKJAODCTV0T4F2MW) wrt site log (02864)

    2024/11/20 19:40 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.0817 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/11/20 16:50 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SQDNKJAODCTV0T4F2MW) wrt site log (02864)

    2024/11/20 16:50 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.0817 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/11/20 18:20 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SQDNKJAODCTV0T4F2MW) wrt site log (02864)

    2024/11/20 18:20 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.0817 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station VIR200FIN
Last ETRF2000 position valid from 078/2017 to 316/2022
expressed at epoch 001/2010
X = 2788251.674 m Vx = 0.0014 m/y
Y = 1454871.130 m Vy = 0.0012 m/y
Z = 5530279.038 m Vz = 0.0013 m/y

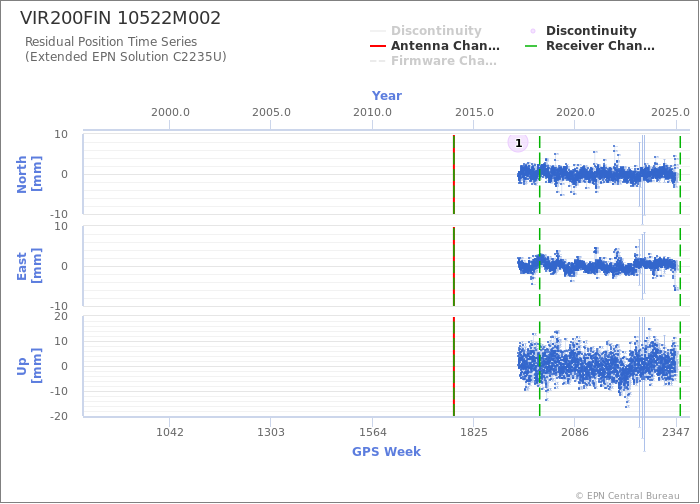

Position time series

Position time series

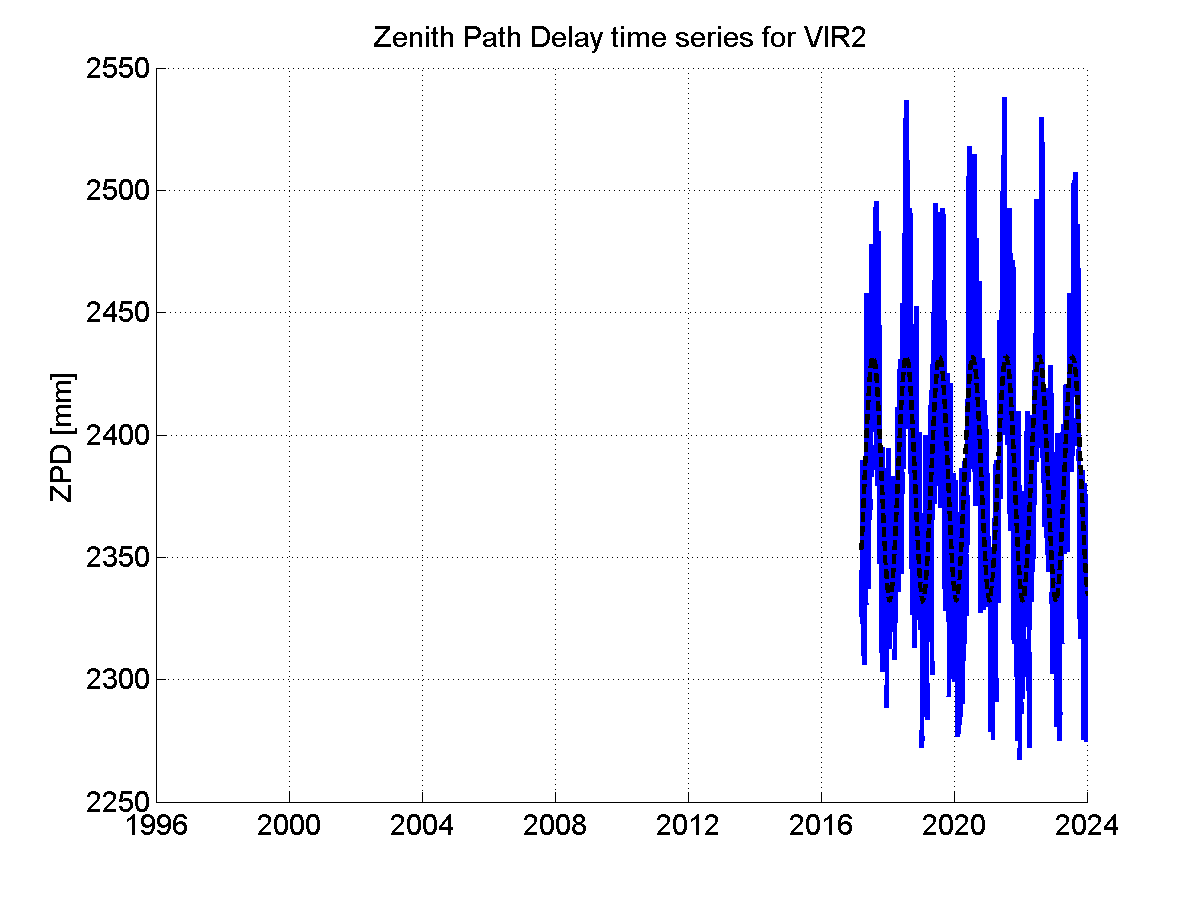

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

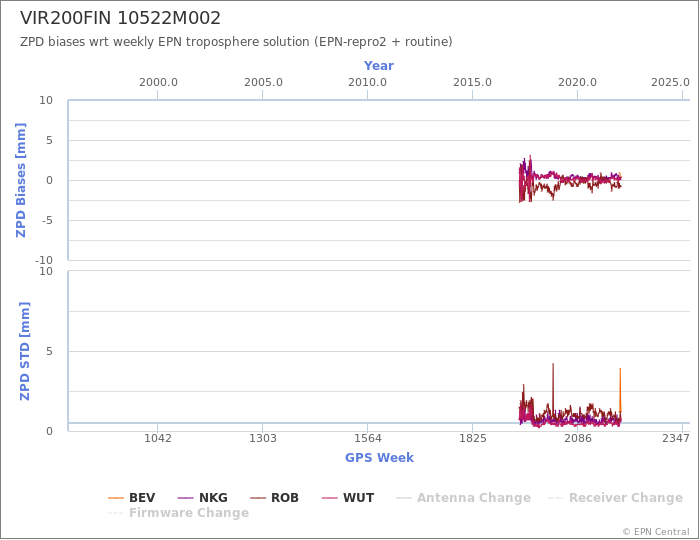

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
