Valentia, Ireland (VLN100IRL)

RESPONSIBLE FOR METADATA OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
RESPONSIBLE AGENCY OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
CURRENT STATION CONFIGURATION vln100irl_20230331.log
STATUS IN EPN included since 15-09-2019
LAST AVAILABLE DATA 25-09-2023
LAST RECEIVER LEICA GR50 (13-12-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR20/LEIM (01-02-2019 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BKG, GFZ, IGE, ROB
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 105/2020 N/A
BEV 003/2020 N/A
BKGE 105/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 262/2023 78.57%
BEV 268/2023 100%
BKGE 268/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 106/2020 (A) N/A 0%
BKGE 106/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 269/2023 (K) 100% 26.19%
BKGE 269/2023 (K) 100% 75%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station VLN100IRL
Last ETRF2000 position valid from 258/2019 to 316/2022
expressed at epoch 001/2010
X = 3877519.985 m Vx = -0.0019 m/y
Y = -700588.987 m Vy = -0.0003 m/y
Z = 4998722.357 m Vz = -0.0012 m/y
Position time series

Position time series

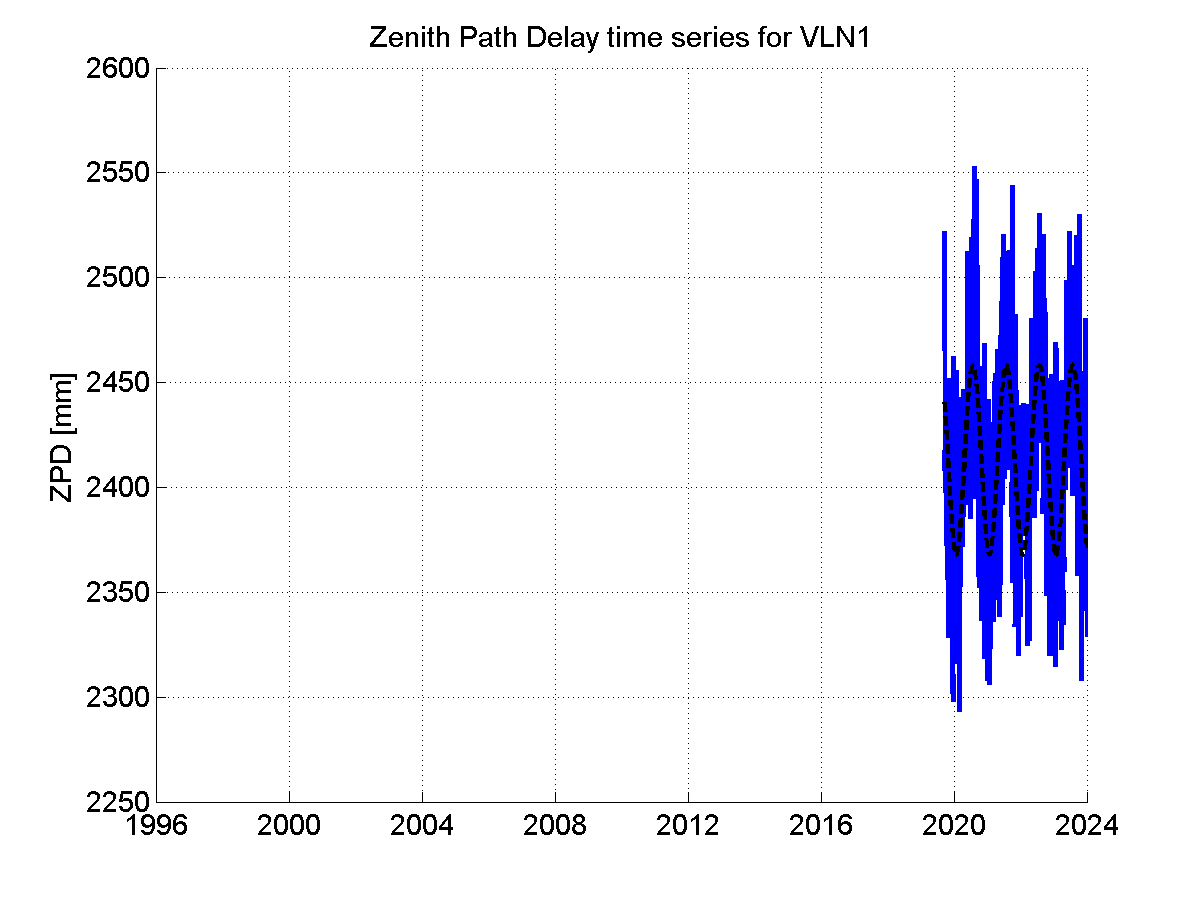

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

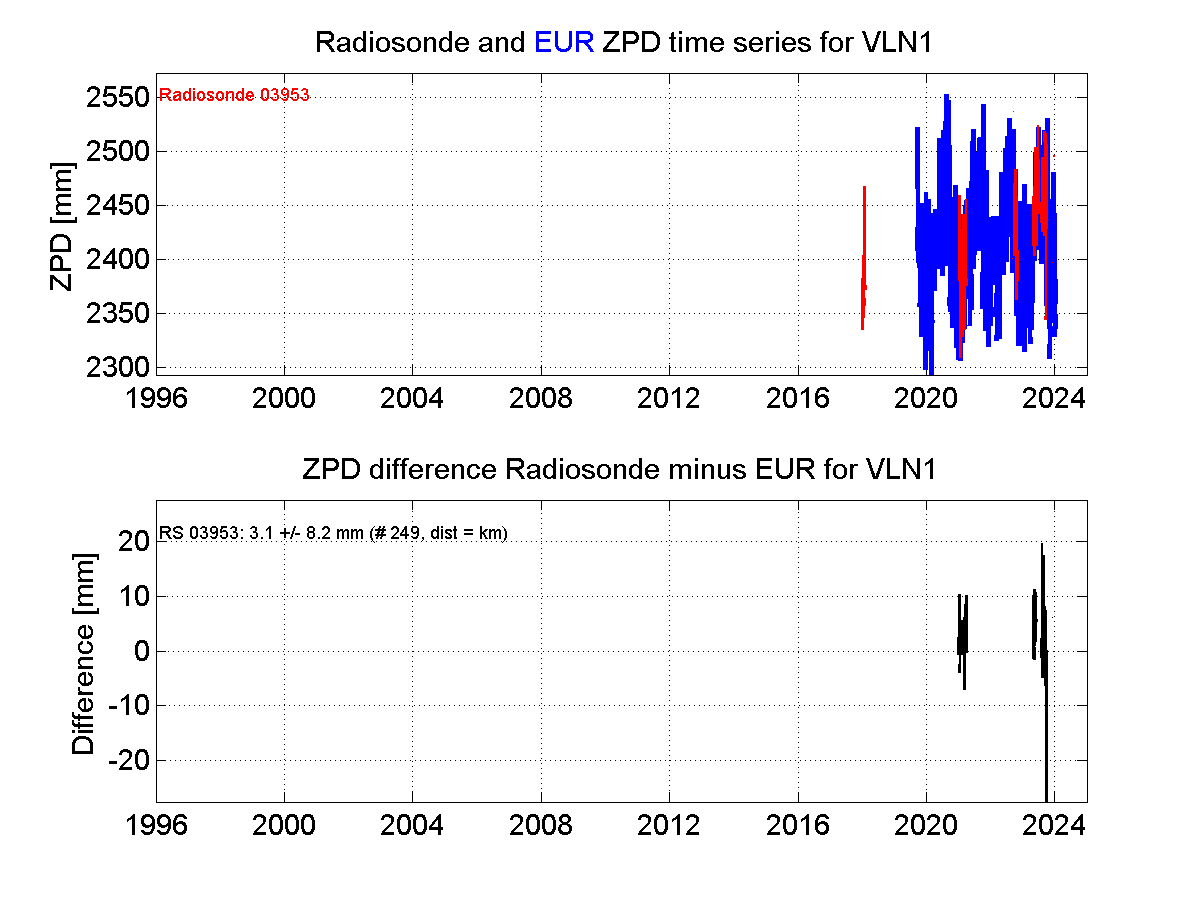

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
