Vinnytsia, Ukraine (VNRS00UKR)

RESPONSIBLE FOR METADATA MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
RESPONSIBLE AGENCY CSIRP&NFC (Centre of Special Information Receiving and Processing and Navigation Field Control)
CURRENT STATION CONFIGURATION vnrs00ukr_20181003.log
STATUS IN EPN included since 24-03-2019
LAST AVAILABLE DATA 30-09-2023
LAST RECEIVER NOV OEMV3 (01-10-2018 to now)
SET TO TRACK GPS+GLO
LAST ANTENNA NOV702GG/NONE (12-11-2009 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, MUT, UPA, WUT
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 267/2023 78.57%
BEV 273/2023 100%
BKGE 273/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 274/2023 (R) 99.4% 98.21%
BKGE 274/2023 (R) 100% 98.21%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station VNRS00UKR
Last ETRF2000 position valid from 090/2019 to 316/2022
expressed at epoch 001/2010
X = 3670860.895 m Vx = 0.0013 m/y
Y = 1987087.045 m Vy = -0.0037 m/y
Z = 4806792.659 m Vz = -0.0018 m/y

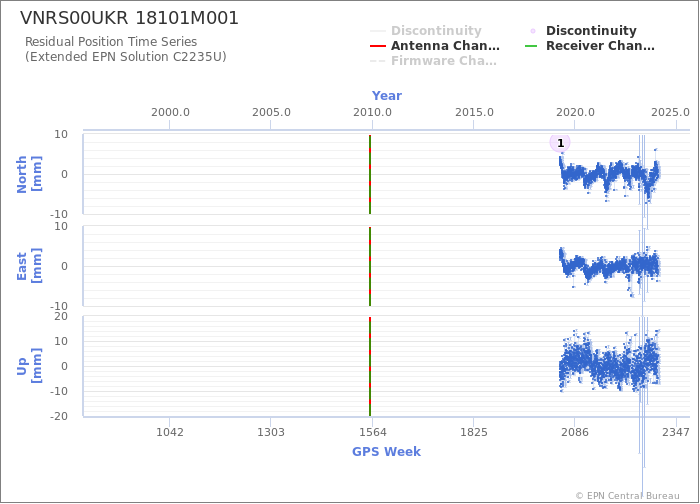

Position time series

Position time series

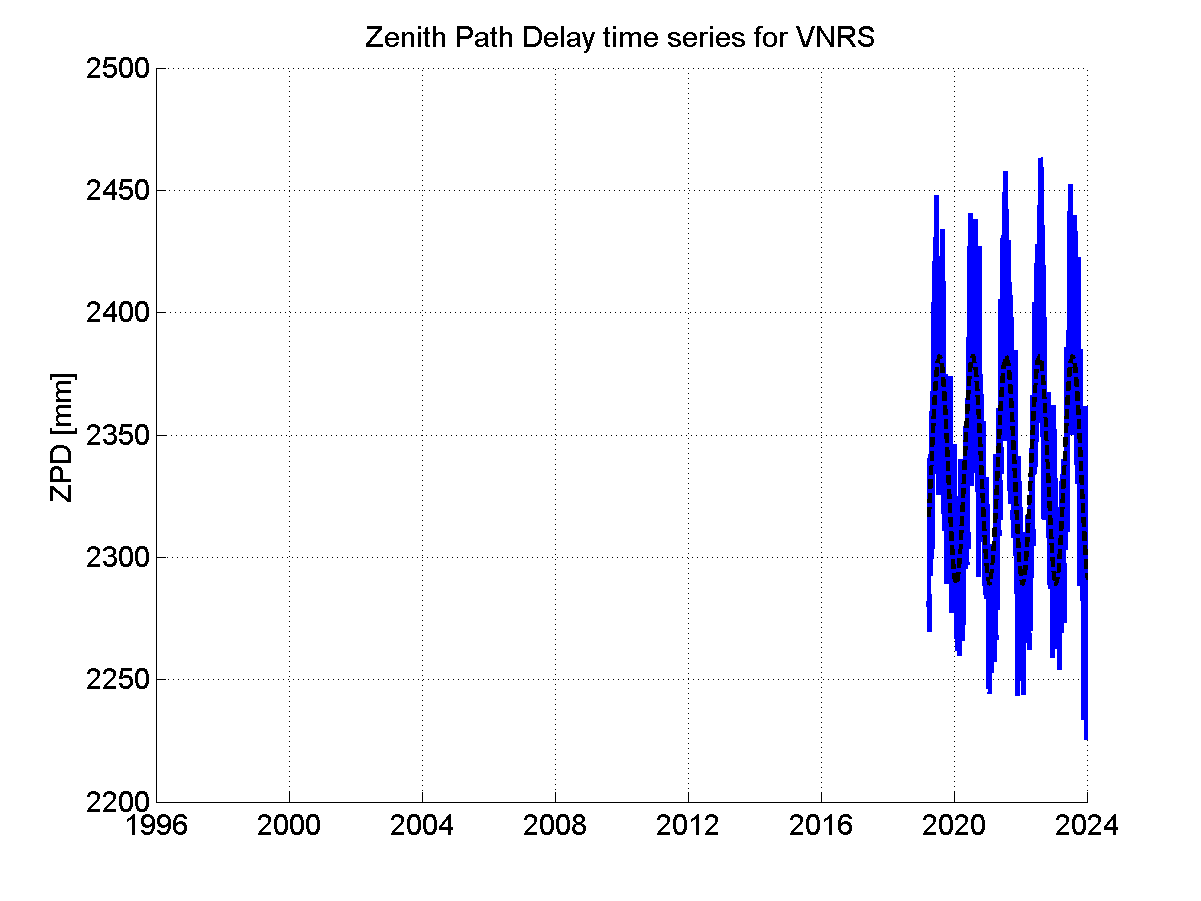

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

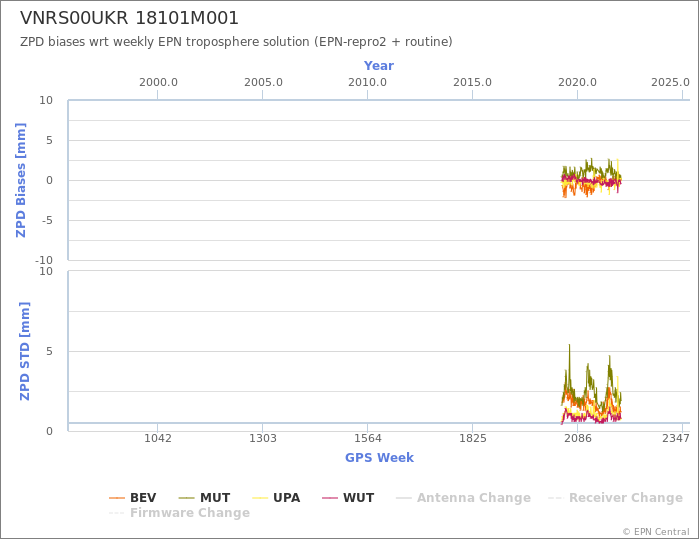

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
