EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	warn00deu_20240215.log
STATUS IN EPN	included since 26-10-2003
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (15-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (13-05-2019 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 09050002) from 2010-09-15 to 2019-05-13 : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C01, C02, C05, C06, C07, C08, I05, date: 2019-07-19) - careful: not used within EPN analysis BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-06-18) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2010-08-06) - careful: not used within EPN analysis GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-07-01) LEIAR25.R4/LEIT (SN: 725559) from 2019-05-13 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2013-03-12) - careful: not used within EPN analysis BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-04-26) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2018-10-15) GEO - ROBOT (freq: G01, G02, R01, R02, date: 2013-01-10) - careful: not used within EPN analysis TPSCR3_GGD/CONE (SN: 2170159) from 2003-10-22 to 2004-08-12, from 2004-08-12 to 2005-03-01, from 2005-03-01 to 2010-09-15 : GEO - ROBOT (freq: G01, G02, date: 2003-09-25)
DATA ROUTINELY ANALYSED BY	BKG, GFZ, MUT, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-05-2021.

RINEX V2.11 - GPS+GLO+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		123/2021	N/A
BEV		123/2021	N/A
BKGI		123/2021	N/A

RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		319/2024	78.57%
BEV		324/2024	96.43%
BKGI		325/2024	100%

Hourly

No recent data available

Hourly

Data centres	Online	Last data	Availability	Latency
BEV		326/2024 (H)	100%	95.83%
BKGI		326/2024 (H)	100%	100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

WARN00DEU0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 20:04 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 20:04 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/11/20 20:04 RTCM 3.2/1033: Incorrect Receiver type in stream (ZAVAD TRE_3 DELTA) wrt site log (JAVAD TRE_3 DELTA)
2024/11/20 20:04 RTCM 3.2/1033: Incorrect Receiver SN in stream (198GILL1QGDGX0QDSPVJ) wrt site log (02890)
2024/11/20 20:04 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7298 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 17:14 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 17:14 RTCM 3.2/1033: Incorrect Receiver type in stream (ZAVAD TRE_3 DELTA) wrt site log (JAVAD TRE_3 DELTA)
2024/11/20 17:14 RTCM 3.2/1033: Incorrect Receiver SN in stream (198GILL1QGDGX0QDSPVJ) wrt site log (02890)
2024/11/20 17:14 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7298 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 18:43 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 18:43 RTCM 3.2/1033: Incorrect Receiver type in stream (ZAVAD TRE_3 DELTA) wrt site log (JAVAD TRE_3 DELTA)
2024/11/20 18:43 RTCM 3.2/1033: Incorrect Receiver SN in stream (198GILL1QGDGX0QDSPVJ) wrt site log (02890)
2024/11/20 18:43 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7298 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

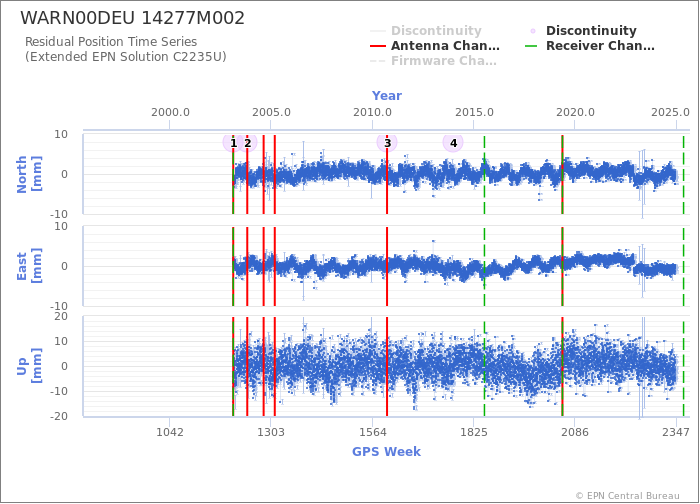

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station WARN00DEU
Last ETRF2000 position valid from 363/2013 to 316/2022 expressed at epoch 001/2010
X = 3658786.102 m	Vx = -0.0003 m/y
Y = 784470.670 m	Vy = -0.0001 m/y
Z = 5147870.396 m	Vz = -0.0004 m/y
