Yebes, Spain (YEBE00ESP)

RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION yebe00esp_20230725.log
STATUS IN EPN included since 22-10-2000
LAST AVAILABLE DATA 06-12-2023
LAST RECEIVER LEICA GR50 (25-07-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR20/LEIM (18-11-2021 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR20/LEIM (SN: 23349016) from 2021-03-24 to 2021-11-18, from 2021-11-18 to now :
DATA ROUTINELY ANALYSED BY BKG, GFZ, IGE, IGN, NKG
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 335/2020 N/A
BEV 003/2020 N/A
BKGI 335/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 334/2023 78.57%
BEV 340/2023 89.29%
BKGI 340/2023 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 341/2023 (P) 72.62% 72.62%
BKGI 341/2023 (P) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

YEBE00ESP0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2023/12/07 03:40 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2023/12/07 03:40 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2023/12/07 02:02 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2023/12/07 06:56 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station YEBE00ESP
Last ETRF2000 position valid from 084/2021 to 316/2022
expressed at epoch 001/2010
X = 4848724.898 m Vx = -0.0003 m/y
Y = -261632.485 m Vy = -0.0007 m/y
Z = 4123093.898 m Vz = -0.0006 m/y

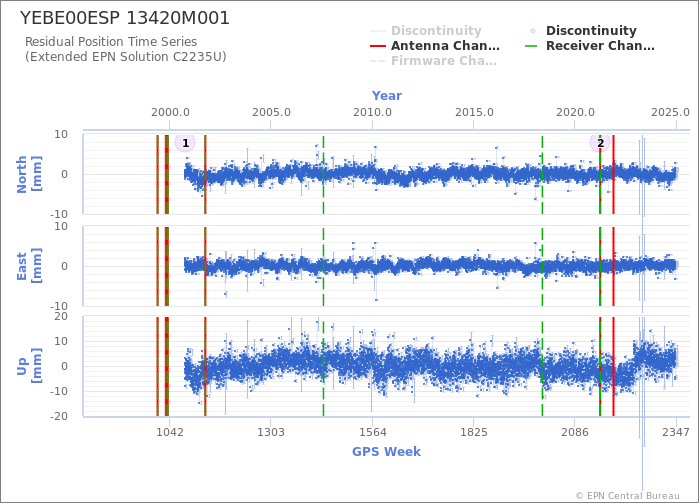

Position time series

Position time series

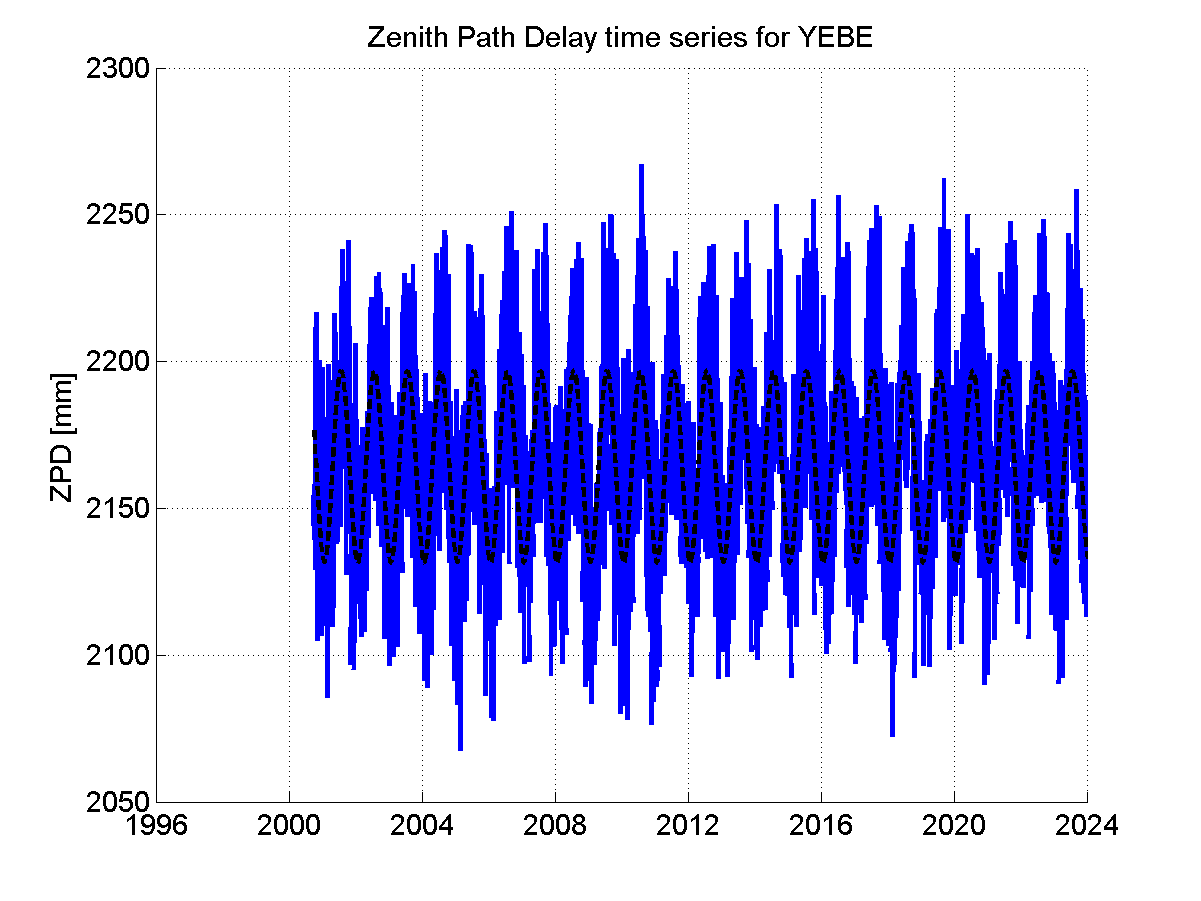

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

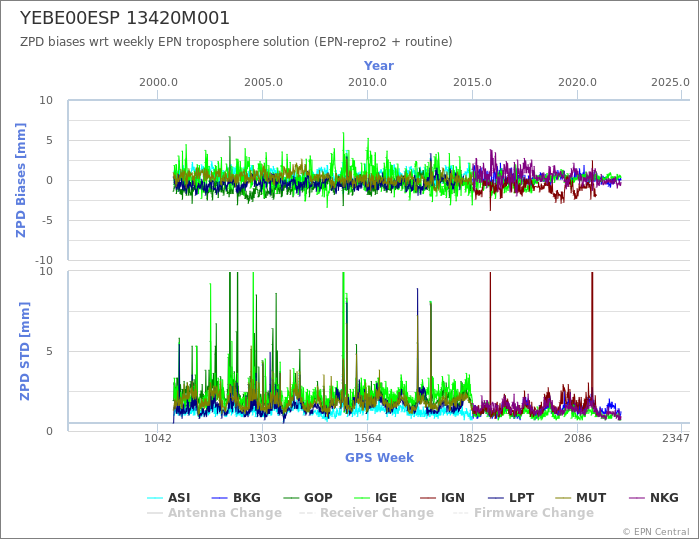

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

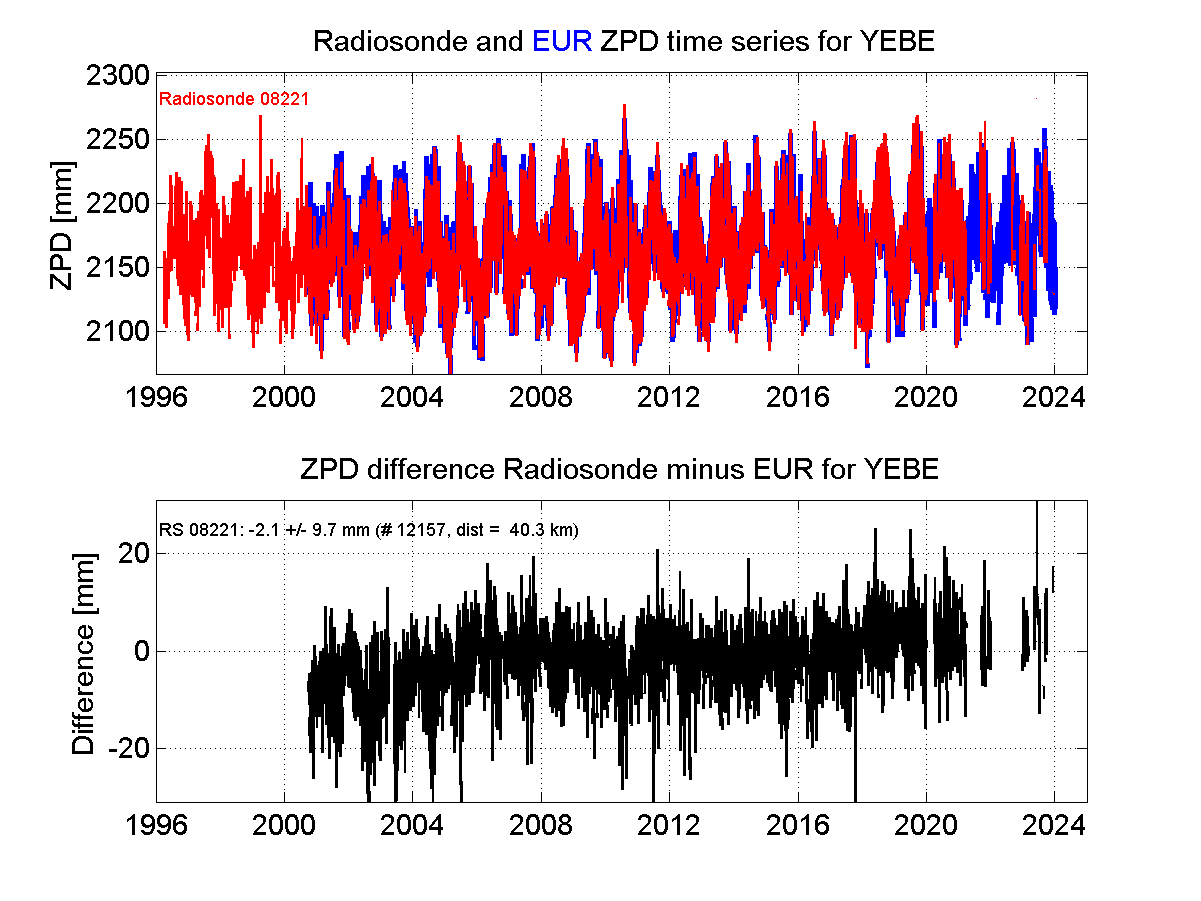

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
