Zaragoza, Spain (ZARA00ESP)

RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION zara00esp_20220907.log
STATUS IN EPN included since 25-06-2006
LAST AVAILABLE DATA 30-03-2023
LAST RECEIVER TRIMBLE NETR9 (23-10-2018 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA TRM29659.00/NONE (20-07-2007 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEK, IGE, IGN, MUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 335/2020 N/A
BEV 003/2020 N/A
BKGE 335/2020 N/A
RINEX V3.02 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 083/2023 78.57%
BEV 088/2023 96.43%
BKGE 089/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 336/2020 (S) N/A 0%
BKGE 336/2020 (S) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 090/2023 (H) 63.69% 57.14%
BKGE 090/2023 (H) 63.69% 57.14%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

ZARA00ESP0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/03/31 03:12 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2023/03/31 03:12 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.37,21/SEP/2018) wrt site log (5.37)

    2023/03/31 03:12 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.2589 m) wrt site log (3.259 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/03/31 01:29 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.37,21/SEP/2018) wrt site log (5.37)

    2023/03/31 01:29 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.2589 m) wrt site log (3.259 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/03/31 06:15 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.37,21/SEP/2018) wrt site log (5.37)

    2023/03/31 06:15 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.2589 m) wrt site log (3.259 m)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ZARA00ESP
Last ETRF2000 position valid from 203/2007 to 316/2022
expressed at epoch 001/2010
X = 4773803.539 m Vx = -0.0008 m/y
Y = -73506.535 m Vy = -0.0006 m/y
Z = 4215453.682 m Vz = -0.0011 m/y

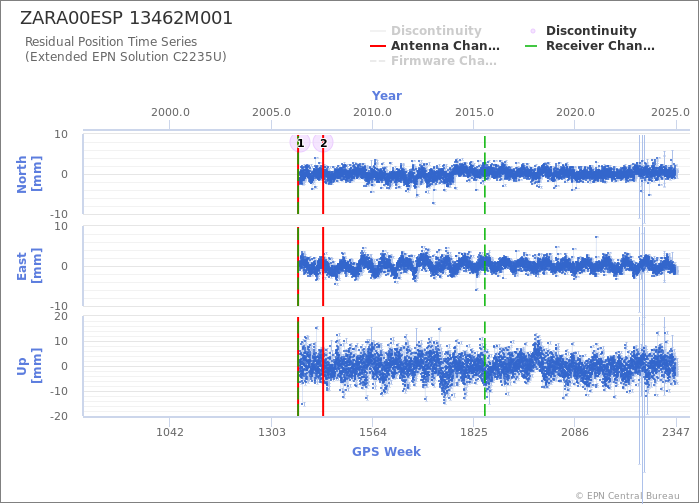

Position time series

Position time series

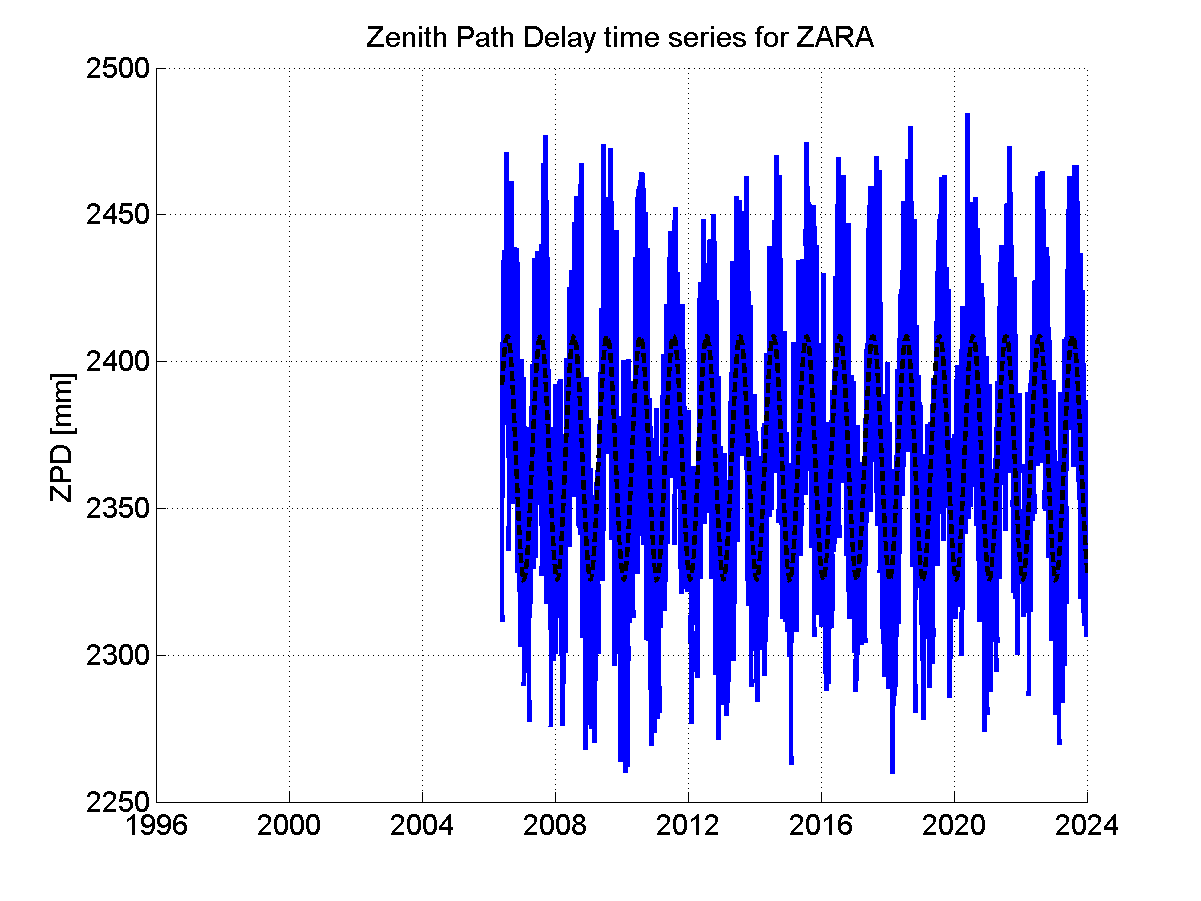

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

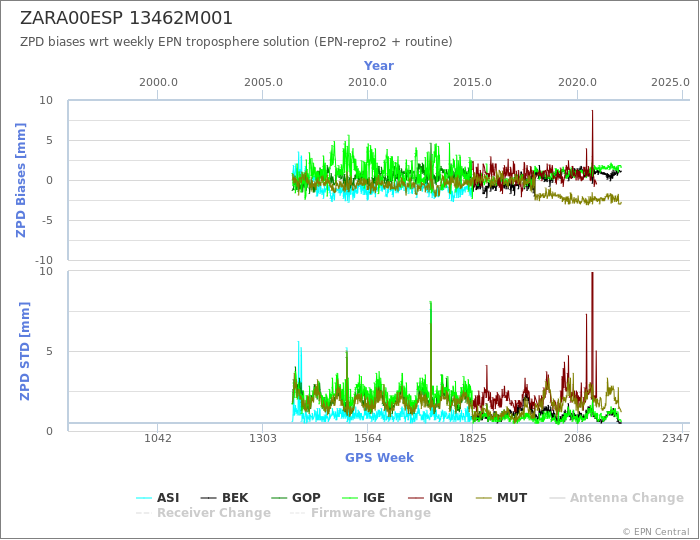

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

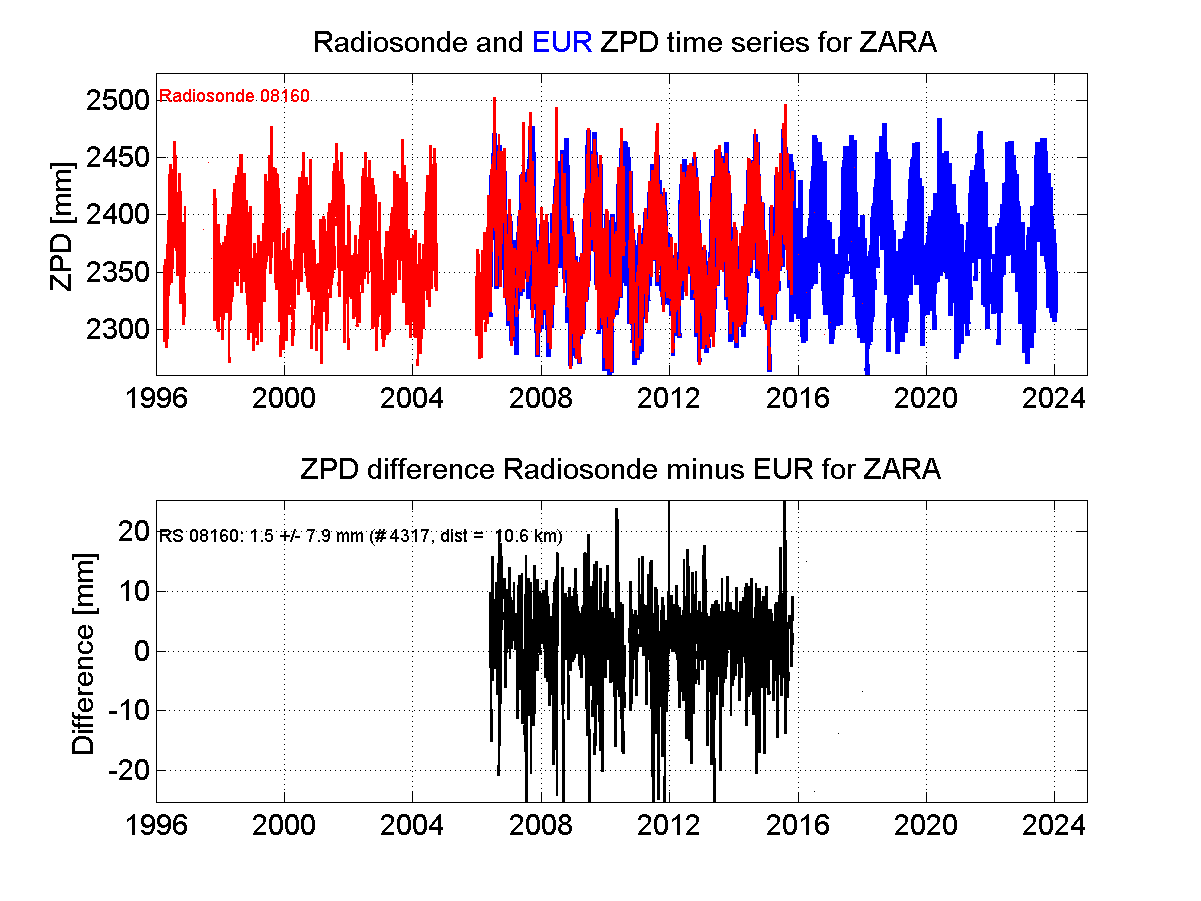

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
