Zimmerwald, Switzerland (ZIMM00CHE)

RESPONSIBLE FOR METADATA LPT (Swiss Federal Office of Topography (swisstopo))
RESPONSIBLE AGENCY LPT (Swiss Federal Office of Topography (swisstopo))
CURRENT STATION CONFIGURATION zimm00che_20230131.log
STATUS IN EPN included since 31-12-1995
LAST AVAILABLE DATA 30-03-2023
LAST RECEIVER TRIMBLE NETR9 (31-01-2023 to now)
SET TO TRACK GPS
LAST ANTENNA TRM29659.00/NONE (02-07-1999 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, COE, LPT, MUT, RGA, ROB, SUT
INCLUSION IN OTHER NETWORK(S) IGS
RINEX V2.11 - GPS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 083/2023 71.43%
BEV 003/2022 0%
BKGI 089/2023 85.71%
RINEX V3.02 - GPS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 083/2023 78.57%
BEV 089/2023 100%
BKGI 089/2023 92.86%
Hourly
Data centres Online Last data Availability Latency
BEV 004/2022 (K) 0% 0%
BKGI 090/2023 (H) 66.07% 65.48%
Hourly
Data centres Online Last data Availability Latency
BEV 090/2023 (H) 100% 100%
BKGI 090/2023 (H) 69.05% 66.07%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ZIMM00CHE
Last ETRF2000 position valid from 311/1998 to 316/2022
expressed at epoch 001/2010
X = 4331297.336 m Vx = -0.0002 m/y
Y = 567555.633 m Vy = -0.0003 m/y
Z = 4633133.717 m Vz = 0.0003 m/y

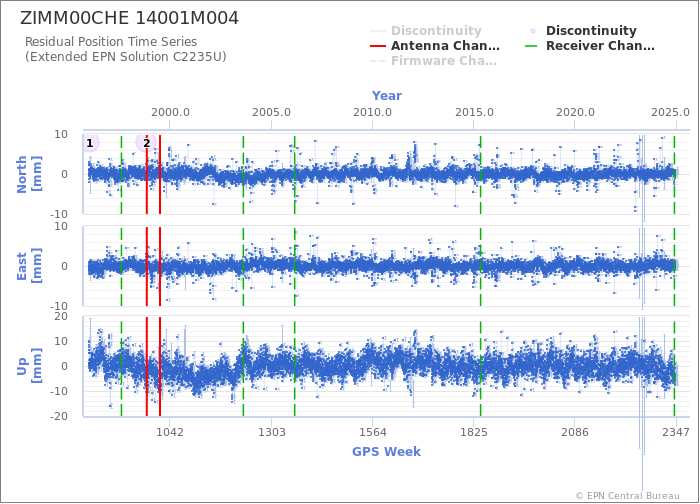

Position time series

Position time series

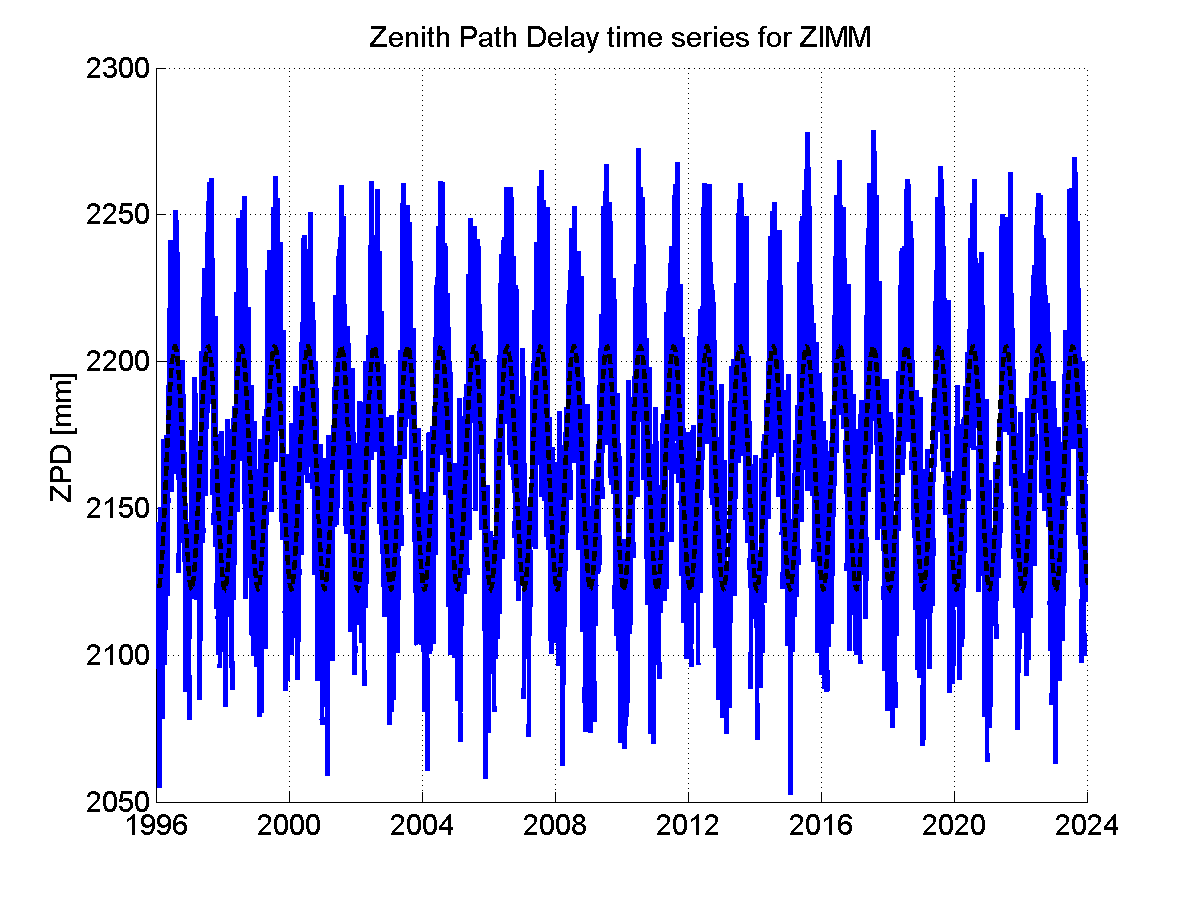

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

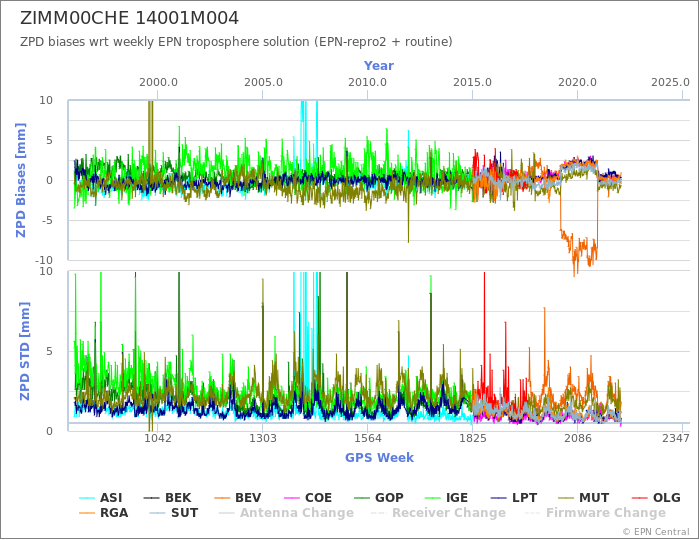

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

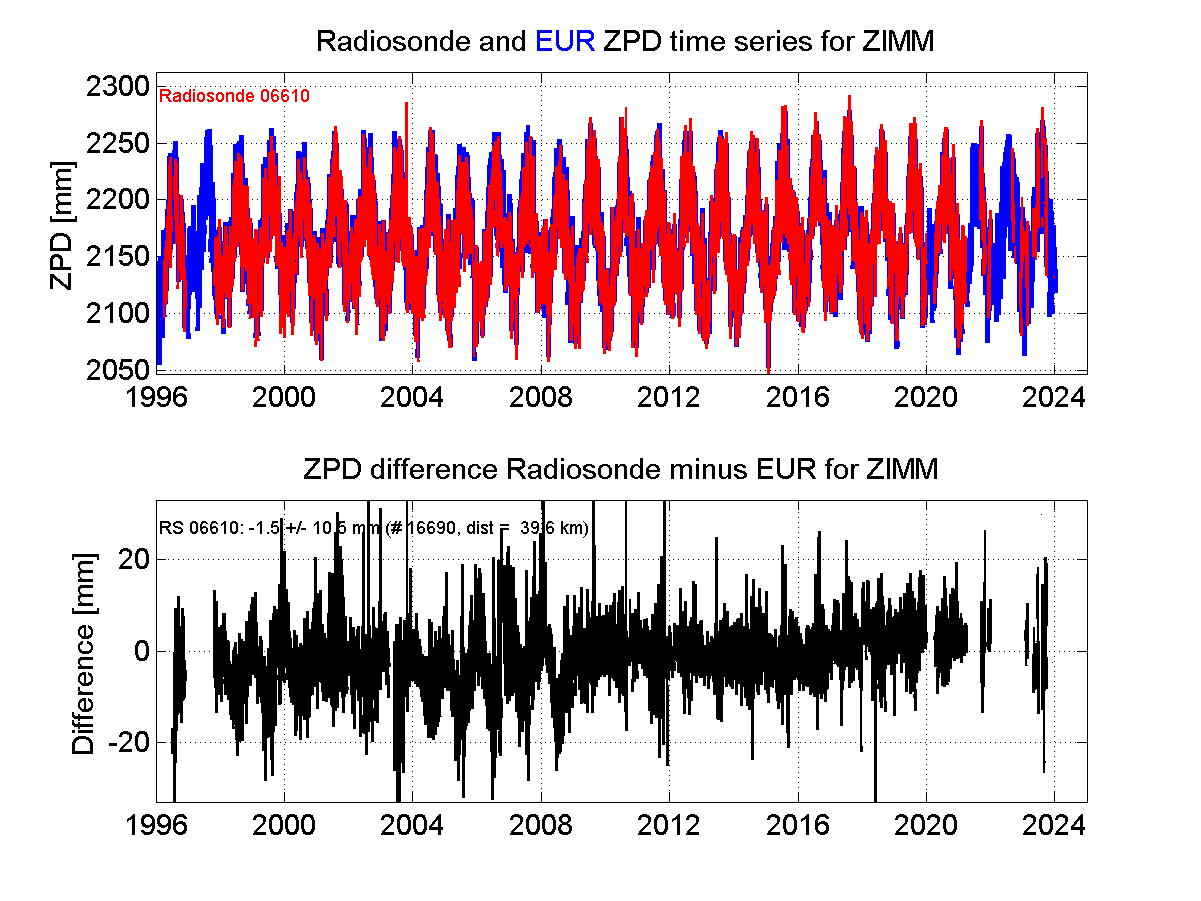

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
