EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GUGiK (Head Office of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	ASGEUPOS (ASG-EUPOS Management Center Head Office of Geodesy and Cartography)
CURRENT STATION CONFIGURATION	zywi00pol_20240112.log
STATUS IN EPN	included since 10-08-2003
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-ZYWI00POL
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE ALLOY (12-01-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM59900.00/SCIS (29-08-2014 to now)
INDIVIDUAL CALIBRATION(S)	TRM55971.00/TZGD (SN: 30436564) from 2007-11-27 to 2014-08-29 : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2007-11-08) TRM59900.00/SCIS (SN: 5345361484) from 2014-08-29 to now : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2014-06-18)
DATA ROUTINELY ANALYSED BY	BEV, MUT, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 13-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

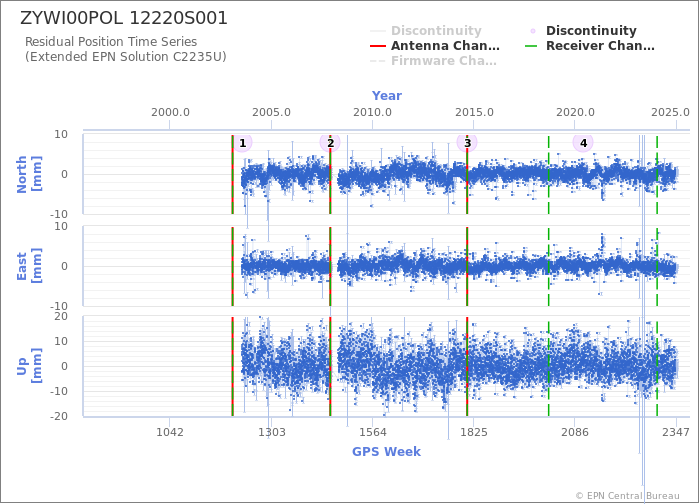

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ZYWI00POL
Last ETRF2000 position valid from 148/2020 to 316/2022 expressed at epoch 001/2010
X = 3904633.308 m	Vx = -0.0005 m/y
Y = 1360191.878 m	Vy = -0.0005 m/y
Z = 4840630.781 m	Vz = -0.0003 m/y
