EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SaposNI (Landesamt für Geoinformation und Landesvermessung Niedersachsen (LGLN))
RESPONSIBLE FOR METADATA	SaposNI (Landesamt für Geoinformation und Landesvermessung Niedersachsen (LGLN))
CURRENT STATION CONFIGURATION	hobu00deu_20230209.log
STATUS IN EPN	included since 11-06-2000
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	SEPT POLARX5 (27-10-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R4/LEIT (22-11-2010 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 10271014) from 2010-11-22 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-10-29) LEIAT504GG/LEIS (SN: 200114) from 2007-02-28 to 2010-11-22 : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2007-01-24) TRM29659.00/SNOW (SN: 0220173802) from 2002-06-21 to 2007-02-28 : GEO - ROBOT (freq: G01, G02, date: 2002-06-18) TRM29659.00/SNOW (SN: 0220180416) from 2000-04-18 to 2000-04-25, from 2000-04-25 to 2002-06-07 : GEO - ROBOT (freq: G01, G02, date: 2003-06-29) - careful: not used within EPN analysis TRM33429.20+GP/NONE (SN: 0220132683) from 2002-06-07 to 2002-06-21 : GEO - ROBOT (freq: G01, G02, date: 2002-03-11)
DATA ROUTINELY ANALYSED BY	BKG, LPT, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-04-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station HOBU00DEU
Last ETRF2000 position valid from 332/2010 to 316/2022 expressed at epoch 001/2010
X = 3778220.079 m	Vx = -0.0001 m/y
Y = 698635.221 m	Vy = -0.0005 m/y
Z = 5074054.016 m	Vz = -0.0005 m/y

Position time series

Tropospheric Delays

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

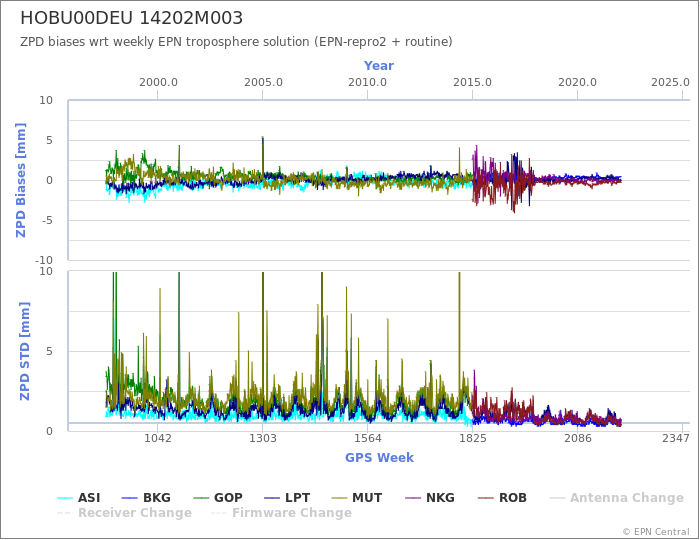

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Hohenbuenstorf, Eschenberg, Germany (HOBU00DEU)
